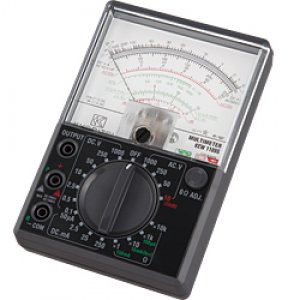

Kyoritsu 1109S

Mirrored scale for easy and accurate reading.
Output terminal to cut off DC component when measuring AC voltage.
Safety designed input terminals and test leads.
DC V 0.1/0.5/2.5/10/50/250/1000V
|±3% of FS (20kΩ/V)
AC V 10/50/250/1000V (9kΩ/V)
|±3% of FS
DC A 50µA/2.5/25/250mA
|±3% of FS
Ω 2/20kΩ/2/20MΩ
|±3% of scale length
Decibel -10~+62dB
hFE 0~1000 (Ω × 10)
|±3% of scale length
Withstand Voltage 6000V AC for 1 minute
Power Source R6P (AA) (1.5V) × 2
6F22 (9V) × 1
Dimensions 150(L) × 100(W) × 47(D)mm
Weight 330g approx.
Accessories 7210A (Test leads)
8901 (Fuse [0.5A/250V]) × 2
R6P (AA) × 2
6F22 × 1
Instruction Manual
Optional 9168 (Carrying Case)
