Seaward PR33D

Digital Phasing Unit
PHASING RODS WITH DIGITAL READING FOR USE ON SYSTEM UP TO 33KV

Seaward HV products on this site are advertised at the list price. Please use the 'Best Quote' link on the right for our discounted price.

Seaward Part No: 109A913



The Seaward PR33D is a digital HV potential indicator and phasing stick which can be used to indicate the presence of voltage, make voltage measurements and provide a means of phase comparison at the point of paralleling two circuits, without the interposition of voltage transformers or secondary wiring circuits. It is suitable for use on earthed neutral systems up to 33kV.

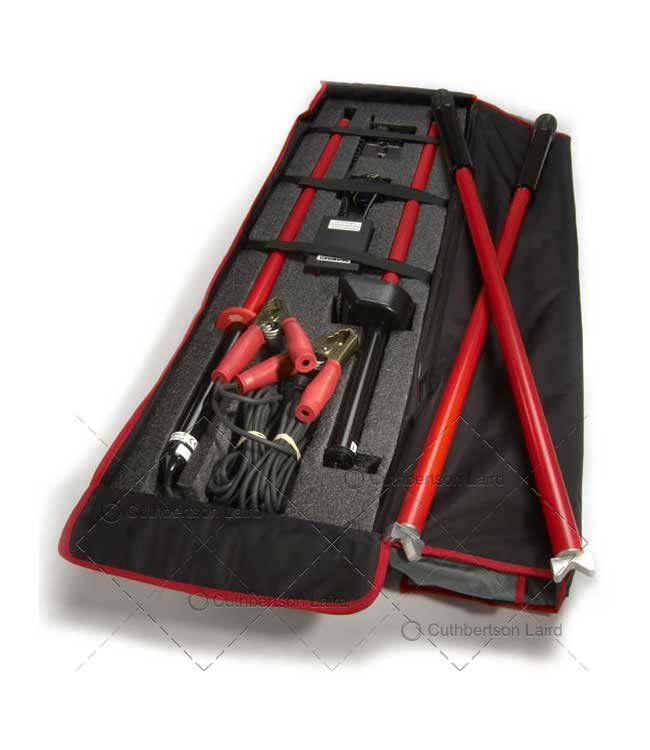

The LCD display is powered by an integral rechargeable battery and is supplied complete with battery charger and PH3 proving unit in a bespoke carrying case. Conforming to recommended, creepage and safety standards, the PR33D features high-grade PVC tubing and incorporates totally encapsulated resistor chains.

Seaward PR33D Features

  • Contact electrode type: Domed.
  • Maximum system voltage: 33kV.
  • Maximum voltage to earth: 19kV.
  • Measuring range: 0.0kV - 19.0kV.
  • Resolution: 100V.
  • Sensitivity: AC/DC.
  • Comes complete with PH3 proving unit.
  • Dimensions: 600(L) x 25(D)mm.
  • Weight: 1lb, (450g).
  • Seaward PR33D Warranty: 1 year.

Included Accessories:

Seaward PR33D Digital Phasing Unit, Seaward PH3 Proving Unit, 2 x Overhead Line Extensions, Battery Charger, Bespoke Carry Case.
