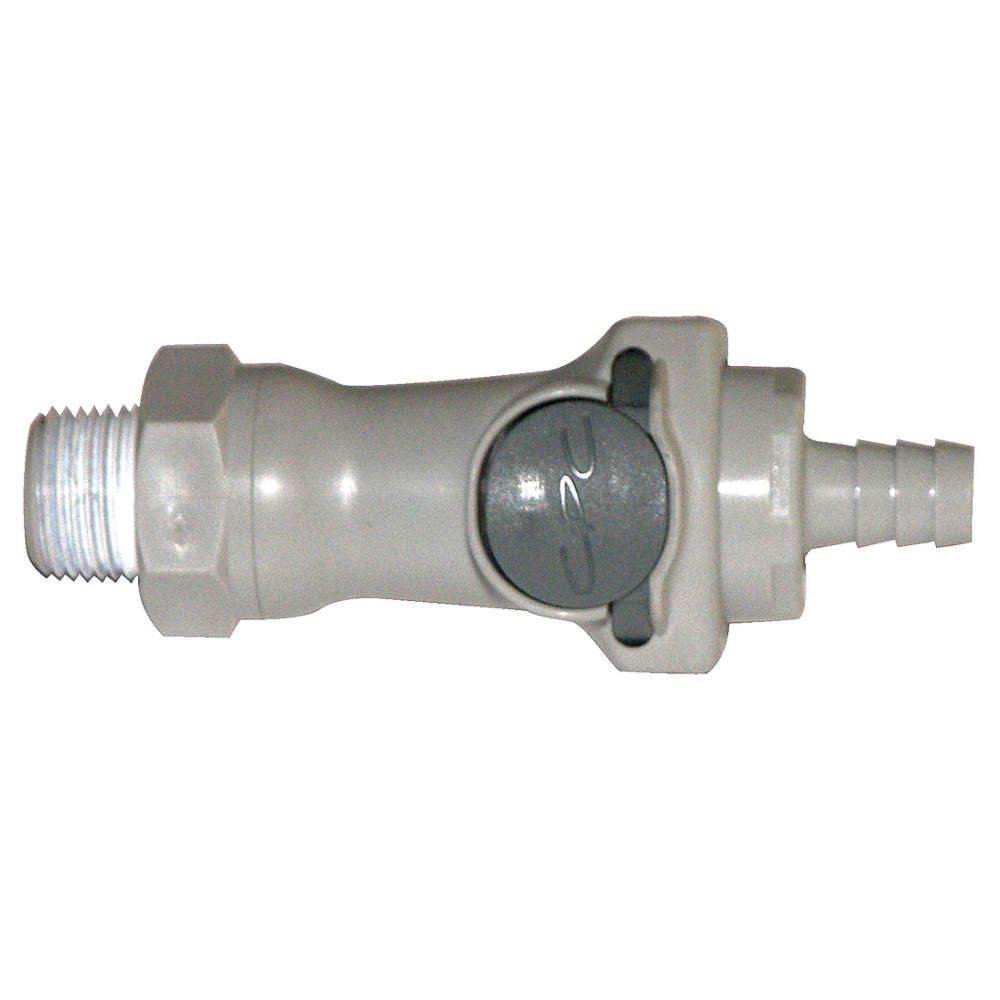

Justrite Polypropylene Fitting Disconnect Assembly

The Justrite 12011 is a non-installed polypropylene fitting disconnect assembly designed for custom quick-disconnect disposal cans. It features EPDM seals and connects to 3/8-inch (10 mm) ID tubing with a 1/4-inch (6 mm) flow.

Custom disposal cans can be configured with up to eight fittings based on the required fitting size, material, position and O-ring seal material. A minimum of two disconnect fittings is required: one for intake and one for venting. Unless otherwise specified, the vent and intake fittings will use the same configuration.

Specifications

• Brand: Justrite
• Model Number: 12011
• Product Type: Replacement polypropylene fitting
• Accessory Type: Fitting disconnect
• Fitting Material: Polypropylene
• Seal Material: EPDM
• Compatible Tube Size: 3/8-inch (10 mm) ID tubing
• Flow Size: 1/4-inch (6 mm)
• Installation: Non-installed
• Compatible Model: Justrite 12012
• Application: Custom quick-disconnect disposal cans
• UPC: 697841059665
