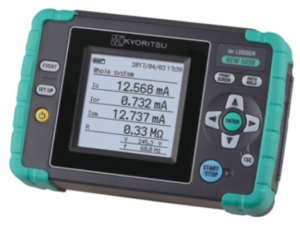

Screenshot_253

By Brands

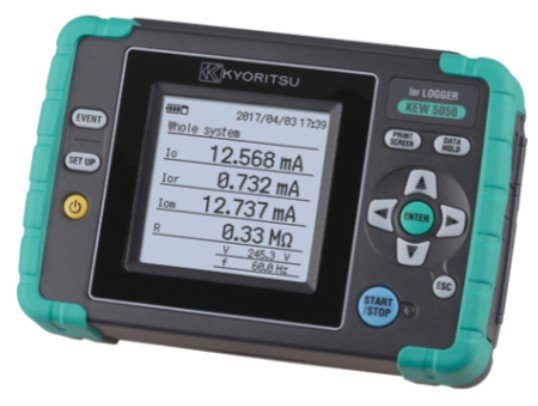

KYO0214-KYORITSU 5050-00 LEAKAGE CURRENT LOGGER (NO CLAMP SENSORS)

Category: Voltage Recorders
Price: 1850,00 $

  • Unpreceded Ior Logger!

    • Provides simultaneous measurements and logs up to 4 channels
    • Supports various wiring systems
      (Single-phase 2&3-wire, Three-phase 3&4-wire*) *Except Ior for 3 Phase 4 wire
    • World's fastest class speed at 200ms interval for leakage current measurement
    • Offers both traditional leakage / load current measurements
    • Large graphic display and magnet on the back case to attach it on metal enclosures

    Specification

    Wiring configuration 1P2W, 1P3W, 3P3W, 3P4W
    Measurements and
    parameters    		 Ior : Leakage current (Trms) with resistive components only
    Io : Leakage current (Trms) with basic wave of 50/60Hz only
    Iom : Leakage current (Trms) including harmonic components
    V : Reference voltage (Trms) with basic wave of 50/60Hz only
    Vm : Reference voltage (Trms) including harmonic components
    R : Insulation resistance, Frequency(Hz), Phase angle(θ)
    Other functions Digital output, Print screen, Backlight, Data hold
    Recording Interval 200/400ms/1/5/15/30s/1/5/15/30m/1/2hours
    Ior
      Range 8177/8178 (10A type): 10.000 / 100.00 / 1000.0mA / 10.000A / AUTO
    Accuracy For reference voltages of sine wave 40 - 70Hz and 90V Trms or higher,
    ±0.2%rdg±0.2%f.s. + clamp sensor amplitude accuracy + error of phase accuracy*
    (phase error)
    * add ±2.0%rdg to measured Io value when using Ior leakage clamp sensor.
    (θ: within the accuracy of reference voltage/ current phase difference ±1.0°)
    Allowable input 1% - 110% (Trms) of each range, and 200% (peak) of the range
    Display range 0.15% - 130% (display “0” for less than 0.15%, “OL” if the range is exceeded)
    Io *Allowable input and Display range are the same as Ior.
      Range 8177/8178 (10A type): 10.000 / 100.00 / 1000.0mA / 10.000A / AUTO
    8146/8147/8148 (10A type): 10.000 / 100.00 / 1000.0mA / 10.000A / AUTO
    8128 (50A type): 500.0mA/ 5.000 / 50.00A / AUTO
    8121/8127 (100A type): 1000mA / 10.00 / 100.0A / AUTO
    8126 (200A type): 2.000 / 20.00 / 200.0A / AUTO
    8122/8125 (500A type): 5.000 / 50.00 / 500.0A / AUTO
    8123/8124/8130 (1000A type): 10.00 / 100.0 / 1000A / AUTO
    8133 (3000A type): 30.00 / 300.0 / 3000A / AUTO
    8129 (3000A type): 300.0 / 1000A / 3000A
      Accuracy ±0.2%rdg±0.2%f.s.+ clamp sensor amplitude accuracy
    Iom *Allowable input and Display range are the same as Ior.
      Range *Same as Io
      Accuracy ±0.2%rdg±0.2%f.s.+ clamp sensor amplitude accuracy
    Measurement
    method    		 Sampling speed 40.96ksps (every 24.4μs), gapless, calculate Trms values every 200ms.
    Voltage
      Range 1000.0V
    Accuracy ±0.2%rdg±0.2%f.s. * for waveforms of sine wave 40 - 70Hz
    Allowable input 10 - 1000V Trms, and 2000V peak
    Display range 0.9 - 1100.0V Trms (display “0” for less than 0.9V, “OL” if the range is exceeded)
    Phase angle(θ)
      Display range 0.0 - ±180.0° (regarding the phase of reference voltage as 0.0°)
    Accuracy Within ±0.5° for the inputs of 10% or higher of leakage current range,
    sine wave 40 - 70Hz, reference voltage of 90V Trms or higher.
    Within ±1.0° when using Ior leakage clamp sensor, and
    Within ±0.5°+ clamp sensor accuracy when using general purpose clamp sensor.
    Frequency meter range 40 - 70Hz
    External supply AC100 - 240V(50/60Hz) 7.5VA max
    Power source LR6(AA)(1.5V) × 6 (Battery life approx. 11h)
    Display / update period 160 × 160dots, FSTN monochrome display / 500ms
    PC card interface SD card (2GB) *standard accessory
    Communication
    interface    		 USB
    Temperature and
    humidity range    		 23±5°C, relative humidity 85% or less(no condensation)
    Operating temperature
    and humidity range    		 -10 - 50°C, relative humidity 85% or less(no condensation)
    Storage temperature
    and humidity range    		 -20 - 60°C, relative humidity 85% or less(no condensation)
    Applicable Standards IEC 61010-1 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2
    IEC 61010-2-030, IEC 61010-031, IEC 61326
    Dimension 165(L) × 115(W) × 57(D)mm
    Weight Approx. 680g (including batteries)
    Accessories 7273 (Voltage test lead)
    8262 (AC adapter)
    7278 (Earth cable)
    7219 (USB cable)
    8326-02 (SD card [2GB])
    9125 (Carrying case)
    Instruction manual, Cable marker, Software installation manual
    LR6(AA) × 6
    KEW Windows for KEW 5050(PC software)
    Optional Accessories 8177/8178 (Ior Leakage current Clamp Sensor)
    8329 (Power supply adapter)
    8121/8122/8123/8124/8125/8126/8127/8128 (Load current Clamp Sensor)*
    8130/8133 (Flexible Clamp Sensor)*
    8146/8147/8148 (Leakage & Load current clamp sensors)*

    Shows insulation resistance (R) values determined by the following formula.
    V: Reference voltage/ Ior: Leakage current
    Displayed value is just for reference since the measurement method differs from insulation resistance testers and may not be consistent with each other.
    * Cannot be used for Ior measurement.
