Specification:
Product model: CIA051A
Product material: ABS
Product function: wall detection function
Appearance: Two-color mold, sturdy and durable
Screen type: 2.4-inch high-definition color screen, resolution 240*320
Charging method: USB charging
Battery type: polymer lithium battery (390mAh) (built-in lithium battery shipped)
Voice Broadcast: Live Voice Broadcast
Product size: 6.3*2.5*13.9cm
Packing size: 18*10*7cm
Product weight: 200g
Product gross weight: 220g

Product Overview:
The instrument can detect metals (steel bars, copper pipes) hidden in walls, ceilings and floors, live wires, ribs and grooves under wooden walls, etc. It is widely used in interior decoration, home installation and other industries, allowing various construction is carried out safely.

How-to: Boots to metal detection mode by default. In non-metal detection mode, short press to enter metal detection mode; it has the functions of locating metal, depth indication and identifying metal characteristics. It is used to detect magnetic and non-magnetic metals and is not affected by the characteristics of the wall. 1. Power on, when the instrument is off, press and hold for 1 second to power on. Power off, when the instrument is on, press and hold for 1 second to turn off. 2. Metal detection mode.

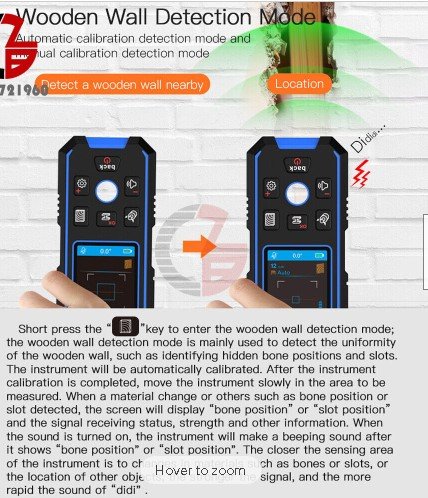

Wall detection function:

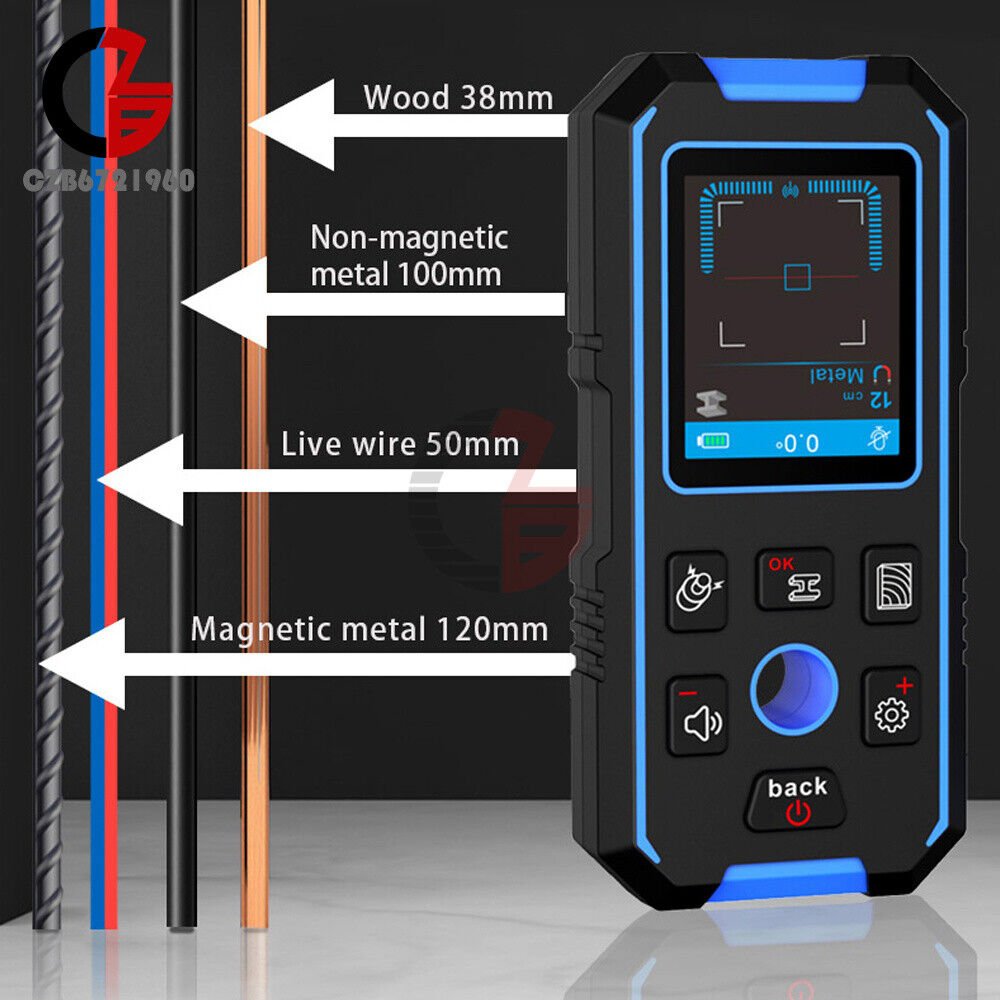

Depth measurement: Wood (3.8cm) / Live (AC) wire (5cm) / Non-magnetic metal (10cm) / Magnetic metal (12cm)
Metal detection: depth value is based on φ20mm standard steel
Tube is for reference only (Note: depth indication error is for reference only)
Function: non-metal detection/AC detection/wall/wood/live (AC) wire/magnetic metal/wall detection function
Automatic shutdown: 5 minutes
Working temperature: 0°C-50°C
Storage temperature: -10°C-60°C

Tips:
Note: The human body is a conductor, touch the detection area by hand
It will affect the detection depth of the instrument. For best detection results, please
Use the instrument according to the schematic

Selling point:
1. This product quickly and easily locates wood metal studs, joists, metal pipe rebar and live AC wires behind walls, floors and ceilings.
2. The design of the alarm allows you to know the situation of the wall at all times, making the operation more accurate.
3. This wall detector can clearly identify what objects are inside the wall, which is more intuitive and accurate. Wood detection, metal detection, electric current detection.
4. A wide range of adaptations, as long as you want to view the interior of opaque objects, you can use it.
5. Use upgraded internal sensors. It senses changes in the density of the space behind the wall and can locate the stud center very accurately.

List:
detector *1
manual *1
