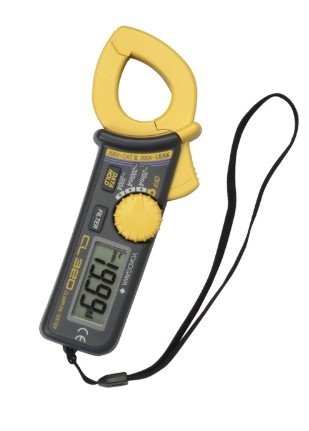

YOK034-YOKOGAWA CL320 CLAMP-ON TESTER, LEAKAGE CURRENT, 200 A DC Clamp Meter CL320 Features
Leakage current measurement with current range from 20mA to 200A
Light weight and compact design
Manual range switching and auto power-off functions
24mm in diameter of measurable conductor
Mean value display
Auto power-off
Manual range switching
Approved for conformity to safety standards EN61010-1, EN61010-2-032(CAT. III 300 V)
Specifications:
| Description | Leakage Current Mini Clamp-on |
|---|---|
| Method of detection | Mean Value |
| Display | LCD (Digital display: 1999 counts) |
| Response Time | Approx. 2 seconds |
| Range Switching | Manual-range |
| Data hold | On all range |
| Operating temperature and humidity | 0 - 40°C, 85% RH or less (no condensation) |
| Influence of external magnetic field | 10 mA or less in proximity to a 14.4 mm-dia conductor carrying 100A |
| Influence of conductor position | Within 5 dgt for 0 to 50A, or 2% for 50 to 200A (10 mm-dia conductor at inside the jaw) |
| Influence of Residual Current | 10 mA or less in proximity to a 10 mm-dia conductor carrying 50A |
| Safety Standard | Conforms EN61010-1, EN61010-2-032 |
| Circuit voltage | 300 Vrms or less |
| Withstanding voltage | 3.7 kV AC for one minute |
| Power Supply | LR-44 x 2(3V) SR-44 x 2 |
| Battery Life | Approx. 15 hours (continuous) |
| Consumed current | Approx. 5 mA |
| Auto power-off | Approx. 10 minutes |
| Diameter of measurable conductor | 24 mm at maximum |
| Dimensions | Approx. 60 (W) x 149 (H) x 26 (D) mm |
| Weight | Approx. 120 g |
| Accessories | Batteries, carrying case (93033) User's manual (IM CL320) |
