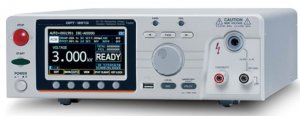

Screenshot_1

By Brands

MULTI CHANNEL HIPOT TESTER (AC/DC/IR), CHANNEL STATUS H, L OR X) INS0105B-GPT-9513

Category: Hipot testers/Electrical Safety Analysers

150VA Multi-channel Hipot Tester (H or L or X)

  • Multi-channel hipot tester
  • Channel status - H, L or X
  • AC withstanding - 0.05-5kV
  • DC withstanding - 0.05-6kV
  • Insulation resistance - 50-1000V DC / 0.1M - 10G Ω
  • 150VA AC test capacity
  • Built in 8 channel scanner
  • Open / short check (OSC)
  • Arc detection
  • Interface: RS-232C and USB host/device
  • Channel status - H, L or X
  • Meets IEC 61010-2-034 design requirements
  • Bulit-in 8 channel Scanner
  • Test parameter Export / Import through USB host
  • Statistic (counter) function

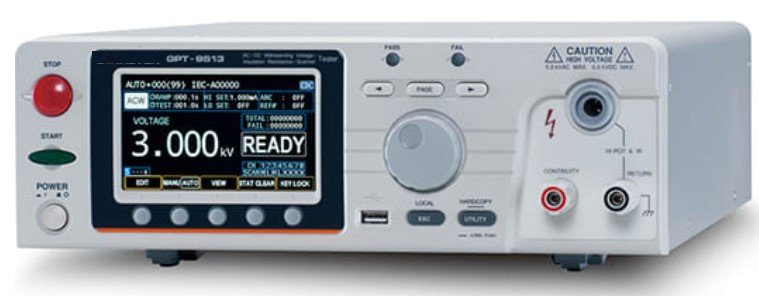

The Instek GPT-9500 is a 3-in-1 multi-channel tester, providing AC withstanding voltage (5kV max.), DC withstanding voltage (6kV max.), and insulation resistance (1000V max.). The design of the series conforms to the latest IEC-61010-2-034 standard requirements and it is built on the output platform of AC 150VA.

There are two models in the GPT-9500 series. A brief overview of their features is as follows:


MODEL\FUNCTION Channel Status AC Withstanding DC Withstanding Insulation Resistance Continuity
INS0105(GPT-9503) H or X ✓ ✓ ✓ ✓
INS0105B(GPT-9513) H, L or X ✓ ✓ ✓ ✓


The GPT-9513 is an AC/DC withstanding voltage and insulation resistance tester with 8 channels scan - Hi & Lo setup functions. It is especially suitable for winding components such as transformers to perform mutual testing of multiple points of single components

The GPT-9503 is an AC/DC withstanding voltage and insulation resistance tester with 8 channels scan - Hi setup functions. It is suitable for general components such as passive components for high-voltage testing between two points.

For the all models, the testing terminals are also mirrored on the rear panel for added safety and for more permanent safety testing environments.

The GPT-9500 Series can store up to 501 manual tests, and run up to 99 manual tests sequentially within an automatic test, allowing the safety testers to accommodate any number of safety standards, including IEC, EN, UL, CSA, GB, JIS and others.


Manufacturer Specs

AC WITHSTANDING

Output-Voltage Range
Output-Voltage Resolution
Output-Voltage Accuracy
Maximum Rated Load
Maximum Rated Current
Output-Voltage Waveform
Voltage Regulation
Output-Voltage Frequency
Voltmeter Accuracy
Current Measurement Range
Current Best Resolution
Current Measurement Accuracy
Current Offset
ARC Detect
RAMP TIME (Rise Time)
FALL Time
WAIT Time
TIMER (Test Time)
TIMER Accuracy
GND

0.050kV ~ 5.000kV
1V
±(1% of setting + 5V) [no load]
150 VA (5kV/30mA)
30mA ; 0.001mA ~ 10mA (0.05kV≦V≦0.5kV) ; 0.001mA ~ 30mA (0.5kV< V≦5kV)
Sine wave
50 Hz / 60 Hz selectable
±(1% + 5V) [maximum rated load → no load]
±(1% of reading + 5V)
0.001mA ~ 30.00mA
1μA (0.001mA ~ 9.999mA) ; 10μA (10.00mA ~ 30.00mA)
±(1.5% of reading + 30μA)
80μA maximum
Yes
0.1s~999.9s
OFF~999.9s
OFF~999.9s
CONT, 0.3s~999.9s
±(100ppm + 20ms)
ON/OFF

DC WITHSTANDING

Output-Voltage Range
Output-Voltage Resolution
Output-Voltage Accuracy
Maximum Rated Load
Maximum Rated Current
Voltmeter Accuracy
Voltage Regulation
Current Measurement Range
Current Best Resolution
Current Measurement Accuracy

Current Offset
ARC Detect
RAMP TIME (Rise Time)
FALL Time
WAIT Time
TIMER (Test Time)
TIMER Accuracy
GND

0.050kV~6.000kV
1V
±(1% of setting + 5V) [no load]
50W (5kV/10mA)
10mA ; 0.001mA ~ 2mA (0.05kV≦ V ≦0.5kV); 0.001mA ~ 10mA (0.5kV< V ≦6kV)
±(1% + 5V) [maximum rated load → no load]
±(1% of reading + 5V)
0.001mA ~ 10.00mA
0.1μA (0.1μA ~ 999.9μA) ; 1μA (1μA ~ 9.999mA) ; 10μA (10.00mA)
±(1% of reading + 1μA) when I Reading < 1mA ; ±(1% of reading + 10μA) when I Reading≦1mA
5μA maximum
Yes
0.1s~999.9s
OFF~999.9s
OFF~999.9s
CONT, 0.3s~999.9s
±(100ppm + 20ms)
ON/OFF

INSULATION RESISTANCE

Output Voltage
Output-Voltage Resolution
Output-Voltage Accuracy
Resistance Measurement
Test Voltage
50V≦V<500V

500V≦V≦1000V

Voltage Regulation
Voltmeter Accuracy
Short-Circuit Current
Output Impedance
RAMP TIME (Rise Time)
FALL Time
WAIT TIME
TIMER (Test Time)
TIMER Accuracy
GND

50V~1000V dc
1V
± (1% of setting + 5V) [no load]
0.1MΩ~10GΩ
Measurement Range / Accuracy
0.1MΩ~1MΩ:±(5% of reading + 3 count); 1 MΩ~50MΩ:±(5% of reading + 1 count);
51MΩ~2GΩ:±(10% of reading + 1 count)
0.1MΩ~1MΩ:±(5% of reading + 3 count); 1 MΩ~500MΩ:±(5% of reading + 1 count);
501MΩ~10GΩ:±(10% of reading + 1 count)
± (1% + 5V) [maximum rated load → no load]
± (1% of reading + 5V)
10mA max.
2kΩ
0.1s~999.9s
OFF~999.9s
OFF~999.9s
0.3s~999.9s
±(100ppm + 20ms)
ON/OFF

CONTINUITY TEST

Output-Current Ohmmeter
Measurement Accuracy

100mA dc
1Ω ± 0.2Ω, ON/OFF

INTERFACE

Signal I/O
RS-232C
USB (Device)
USB (Host)
Rear Output

Standard
Standard
Standard
Standard (for Parameter/LCD Hardcopy)
Scanner

DISPLAY



4.3" Color LCD

POWER SOURCE



AC 100V~240V ± 10%, 50Hz/60Hz

DIMENSIONS & WEIGHT



320(W) x 120(H) x 435(D) mm; Approx. 11kg

Tech Specs

Safety Testing / Surge Testing/Hipot Tester Template

Test Type Hipot

AC, DC, IR

Max AC Test Voltage

5 kV

Max DC Test Voltage

6 kV

Min AC Test Voltage

0.05 kV (50 V)

Min DC Test Voltage

0.05 kV (50 V)

Max Trip Current AC Test

30 mA

Min Trip Current AC Test

0.001 mA

Max Trip Current DC Test

10 mA

Min Trip Current DC Test

0.001 mA

Programmable (hipot)

Yes

Insulation Resistance Test

Yes

IR Test Voltage

1,000 V, 100 V, 125V, 250 V, 400V, 50 V, 500 V

Arc Detection

Yes

Scanning control capable for Multipoint Testing

Yes

Maximum Insulation Resistance

10 G Ohms (10000 M Ohms)

Test Equipment General Attributes

HTS/Schedule B Number

9030.33.3400

ECCN Number

EAR99

Country of Origin

Taiwan
