Time Electronics Resistance Decade Box, Resistance Resolution 0.01Ω, Absolute Maximum Resistance Measurement 1MΩ

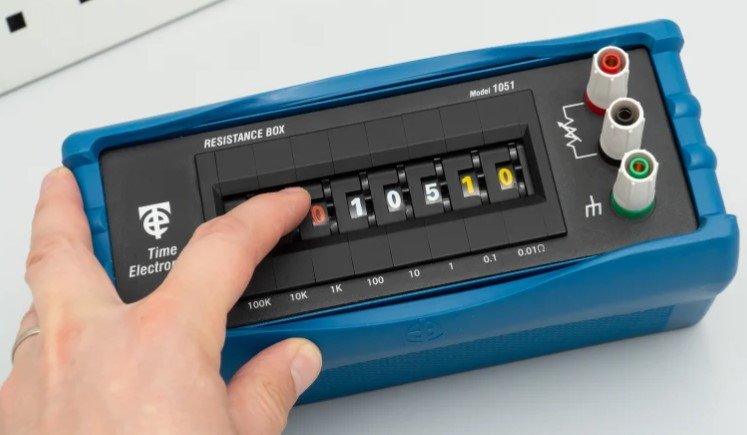

A precision resistance decade box designed for general laboratory work including platinum resistance thermometry. The 1051 is compact and durable, housed in a robust metal case with removable protective rubber cover, making it ideal for use in either the laboratory or field. Excellent accuracy is achieved by using high stability metal film resistors. The 8-digit thumbwheel switch enables simple and precise setting with a clear indication of the resistance value.
Switch Contacts: Special attention has been given to the reliability of operation. A special multiple gold contact arrangement ensures low contact resistance and continued operation even if a contact fails.

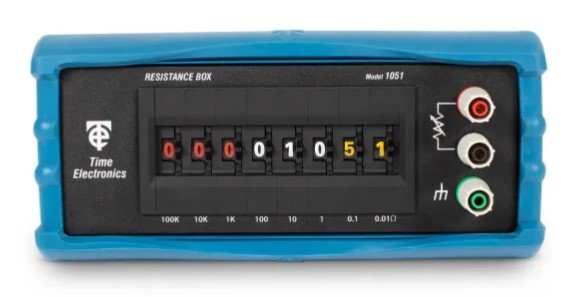

Clear Visual Indication: To make selecting and reading the setting easy the 1051 incorporates colour coded digits: kilohms - red, ohms - white, milliohms - yellow.
Features
- 0.01 Ω to 1 MΩ
- High accuracy and stability
- Simple operation with clear visual indication
- Suitable for Pt100 simulation
- Low temperature coefficient
- Safety terminals
- Removable protective cover
- Robust and durable for lab or field use
Safety Terminals
The instrument connections are via safety terminals that are compatible with 4 mm shrouded plugs, standard plugs, bare wires, and spade terminals.
These terminals are specifically designed with safety features including limited opening distance and a raised flange around the metal connection surface. This ensures that the clearances are sufficient to make the exposed metal parts touch-proof.
Specifications
