SUT001-S130 ECO VERSION LASER PARTICLE COUNTER FOR COMPRESSED AIR PURITY MEASUREMENT EUROPE -S604 1305
The S130 / S132 is a new generation laser particle counter optimized for applications in compressed air or compressed gases. With quality in mind and with the knowledge of customer needs, this instrument is designed for continuous operation 24 hours, 7 days a week. This helps to ensure the compressed air quality while helping to avoid particle contamination of processes and products.
Particle sizes from 0.1 < d ≤ 5.0 μm
- S130 Eco-Version: 0.3 < d ≤ 5.0 μm
- S132 Pro-Version: 0.1 < d ≤ 5.0 μm
Integrated Pressure Diffuser
Unlike its competition, the SUTO Laser Particle Counters come with integrated pressure diffusers to reduce the line pressure inside the instrument. This enables users to use the laser particle counters directly from the compressed air system without installing pressure reducers, and therefore being in compliance with the ISO 8573-4 standard.
Integrated Display

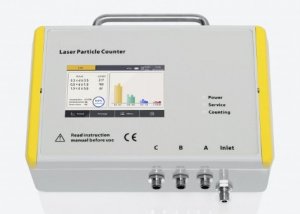

The integrated 5” touch screen display offers live readings for all channels, signal output settings as well as an integrated data logger. This allows storage of the measurement data on the device. Measurement values represent the particle counts per ft³, l or m³, or alternatively in μg/m³.
Air Quality Monitoring According ISO 8573-1
The ISO 8573-1 defines the compressed air purity classes for particulates in a compressed air system by providing the limit values for each channel. The S132 Laser Particle Counter measures the channels as defined by ISO 8573-1:
- 0.1 < d ≤ 0.5 μm
- 0.5 < d ≤ 1.0 μm
- 1.0 < d ≤ 5.0 μm
For these 3 channels, the limit values are defined and divided into classes. But furthermore, as stated in the ISO 8573 standard, the fourth channel must be measured as well, d > 5.0 μm. This channel value must be 0 for the classes 0 to 5, otherwise the classification falls into class 6 or worse, where a mass concentration is defined as limit values.
Simplifying Compressed Air Quality Audits
The S130/132 Particle Counter revolutionizes compressed air audits with its innovative Guided Measurement feature. This intuitive tool leads users step-by-step through the process, making it accessible even for beginners. It generates detailed air purity reports, assessing particle concentrations, compliance with ISO 8573-1 standards, and calculating ISO particle classes—ensuring precise and reliable air quality monitoring.
Connections for Data Analysis
The user-friendly signal outputs (Modbus/RTU (RS485), Alarm relay (NO, 40VDC, 0,2A) and USB) make it easy to connect the S130/S132 to SUTO Displays and Data Logger as well as third-party displays and control units.
SUTO Exchange Service
The exchange calibration service eliminates downtime and enables users to have a seamless record of their dew point measurements.
Please contact us for special requests and further application consultation here.
Permanent particle measurement and monitoring of compressed air and gases in high-tech applications.
- Fulfilling requirements according to compressed air standard ISO 8573-4.
MESSUNG |
|
| Particle | |
| Measuring range | S130: 0.3 < d ≤ 5.0 μm S132: 0.1 < d ≤ 5.0 μm |
| Measuring channels | S130: CH1: 0.3 < d ≤ 0.5 μm CH2: 0.5 < d ≤ 1.0 μm CH3: 1.0 < d ≤ 5.0 μm CH4: 5.0 μm < d (konfigurierbar) S132: CH1: 0.1 < d ≤ 0.5 μm CH2: 0.5 < d ≤ 1.0 μm CH3: 1.0 < d ≤ 5.0 μm CH4: 5.0 μm < d (konfigurierbar) |
| Counting Efficiency according ISO 21501-4 | 30 ... 70 % of d > 0.1 um, 90 ... 110 % of d >= 0.3 um |
| Principle of measurement | Laser detection |
| Sensor | LED-laser |
| Consumption | |
| Selectable units | cn/m³, cn/ft³ |
SIGNAL INTERFACE & SUPPLY |
|
| Analog output | |
| Signal | 4 ... 20 mA (2-wire) |
| Alarm | Switch output, normally open, max. 40 VDC, 200 mA |
| Fieldbus | |
| Protocol | Modbus/RTU, Modbus/TCP (with Display version) |
| Supply | |
| Voltage supply | 24 VDC / 10 W (ohne Display) 24 VDC / 20 W (mit Display) |
| Current consumption | 420 mA (ohne Display) 840 mA (mit Display) |
| Data interface | |
| USB | USB Micro with OTG support |
GENERAL DATA |
|
| Configuration | |
| Others | Device comes pre-configured Configuration can be done via on-screen touch |
| Display | |
| Integrated | 5” color touch screen |
| Data Logger | |
| Storage | 30 million measurement values (optional) |
| Miscellaneous | |
| Electrical connection | 3X M12 |
| Protection class | IP65 |
| Process connection | 6 mm quick connect (pressurized version), barb connection (ambient version) |
| Material | PC, Al alloy |
| Weight | S130: 1.9 kg S132: 3.2 kg |
| Dimensions | S130: 271 x 205 x 91 mm S132: 300 x 240 x 120 mm |
| Operating conditions | |
| Medium | Compressed air and gases free of corrosive, aggressive, caustic and flammable constituents |
| Flow rate | 2.83 l/min |
| Sample rate | One sample per minute |
| Medium quality | ISO 8573-4 |
| Medium temperature | 0 ... +50 °C |
| Medium humidity | < 90 %, no condensation |
| Operating pressure | 0.3 ... 1.5 MPa |
| Ambient temperature | 0 ... +50 °C |
| Ambient humidity | 0 ... 90 % rH |
| Storage temperature | -10 ... +50 °C |
| Storage humidity | < 90 % with no condensation |
| Transport temperature | -10... +50 °C Without display -10 ... +50 °C with display |
