Brief Introduction

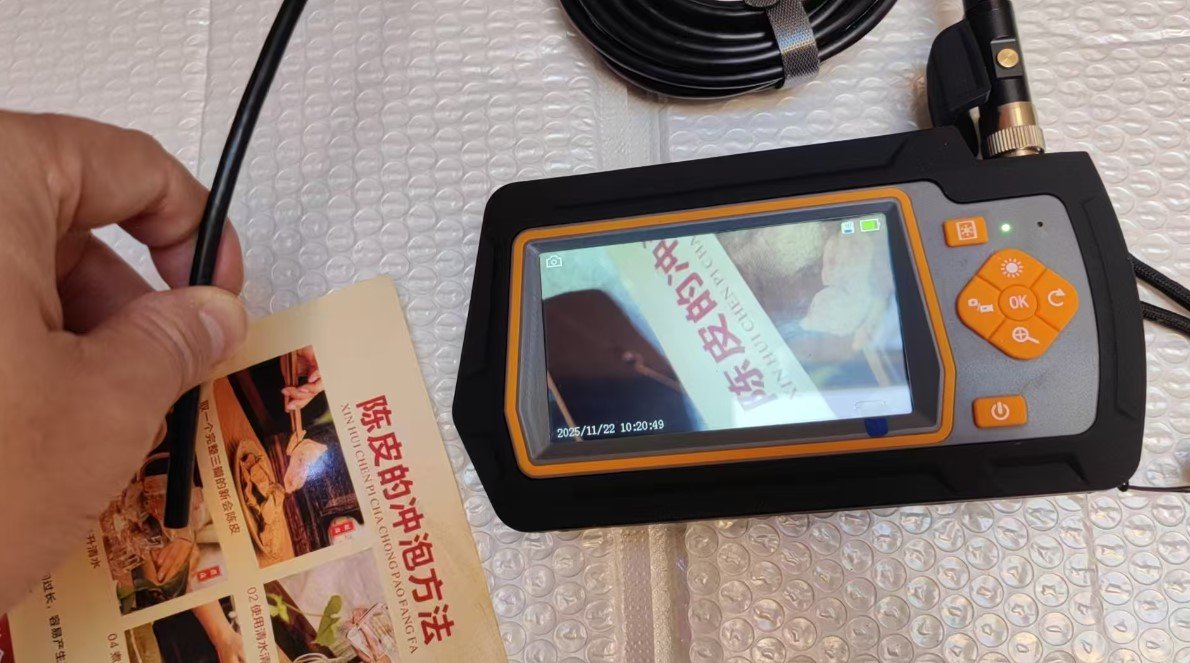

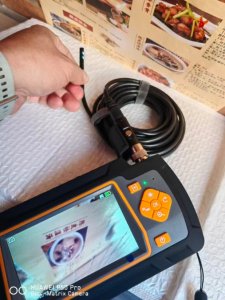

This is a well-designed portable multi-functional digital video
endoscope. With a 4.3 inch full-view IPS screen, a high
definition digital imaging sensor and a front-end camera
surrounded by 6pcs brightness-adjustable high-light white LED
lights, the imaging is clearer for a better visual experience.
Meanwhile, the modern packaging technology makes the
front-end camera smaller. The photographing/recording
functions enable you to record and reserve the field data and
the zooming/rotating/etc functions help you locate the key
position correctly. The ergonomic design enables single-hand
operation; while the user-friendly user interface and simple
button icons enable a fast proficiency in operation.

Application Ranges:
●Engine Detection and maintenance of Airplanes/ automo-
biles/ boats/ trucks/ motorcycles
●Apparatus/ machinery/ electrical and electronic equipment
detection and maintenance
●Gas cylinder/ pipeline/ air-conditioner/ vacuum-system
detection
●Scientific experiments/ geological and archaeological
exploration/ outdoor detection
●Family use for checking the locations unable to see or reach

Power on/off
Freeze frame button: short press for freeze frame, long press
for file browsing mode!
LED adjusting button: level 0-4 cycle; level 0 LED is
completely extinguished; level 4 LED is the brightest; short press
one level at a time, cycle in turn! as the up-flip button in menu
mode!
Photo or video button: short press to take photo; long press
to video!
Menu button: long press to enter menu mode ，as OK button
in menu mode!
Enlargement button: short press enlargement; maximum 2
times enlargement; short press one level at a time; circulate
between 1.0 times, 1.4 times, 1.6 times, 2.0 times; as the
down-flip button in menu mode!
Rotate button: short press for photo rotation; as Exit in menu
mode!

Product parameters:
Camera parameters:
Photo sensor: CMOS sensor
Effective Pixel ：1280*1080
Focal length：30-80mm
Visual angle ：60°
LED ：6LED ，level 0-4 cycle
Frame rate ：30FPS
Photo format ：JPG
Video format: AVI
Waterproof grade ：IP67(Camera)
Host parameters ：
Screen: 4.3-inch IPS screen
Screen resolution ：480*272
Battery capacity：2600mA
Storage capacity：32G （Max ）
Working Current ：400mA
Working voltage ：5V
Standby current ：40mA
Maximum power ：2W

Product list：
4.3-inch host 1pc
Camera 1pc
USB cable 1pc
User’s manual 1pc
Magnet 1pc
Hook 1pc
