Product Description

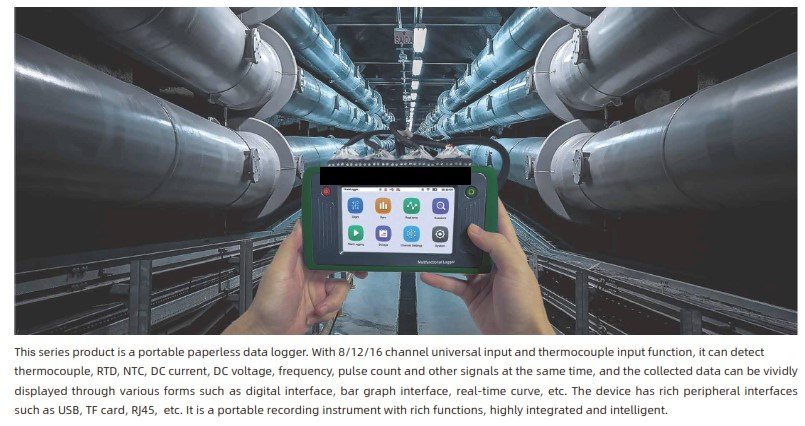

This series product is a portable paperless data logger. With 8/12/16 channel universal input and thermocouple input function, it can detect thermocouple, RTD, NTC, DC current, DC voltage, frequency, pulse count and other signals at the same time, and the collected data can be vividly displayed through various forms such as digital interface, bar graph interface, real-time curve, etc. The device has rich peripheral interfaces such as USB, TF card, RJ45, WIFI, etc. It is a portable recording instrument with rich functions, highly integrated and intelligent.

Feature

• Multi-channel input, supports up to 16 channels of input.
• Support multiple signal types input, support multiple signal input such as DC voltage, DC current, thermocouple, RTD, NTC, frequency, pulse count, etc.
• Support multiple types of thermocouple input, wide temperature detection range (-270-2320℃).
• With peripheral interfaces such as USB, TF card, RJ45, etc., and conduct real-time data monitoring on WEB through the RJ45 interface.
• It has the signal acquisition function of current and voltage transmitters, which is convenient for connecting different types of sensor transmitters.
• High-rate sampling, 16-channel signal acquisition is completed within 1S.
• The data storage capacity is large, a single record fifile can record up to 100,000 records, and the total data storage capacity is at least 8 million records.
• With data display functions, it can show digital display, bar graph display, single-channel detailed information display.
• It has multiple recording modes such as immediate recording, timing recording, and timing stop, making the recording function.

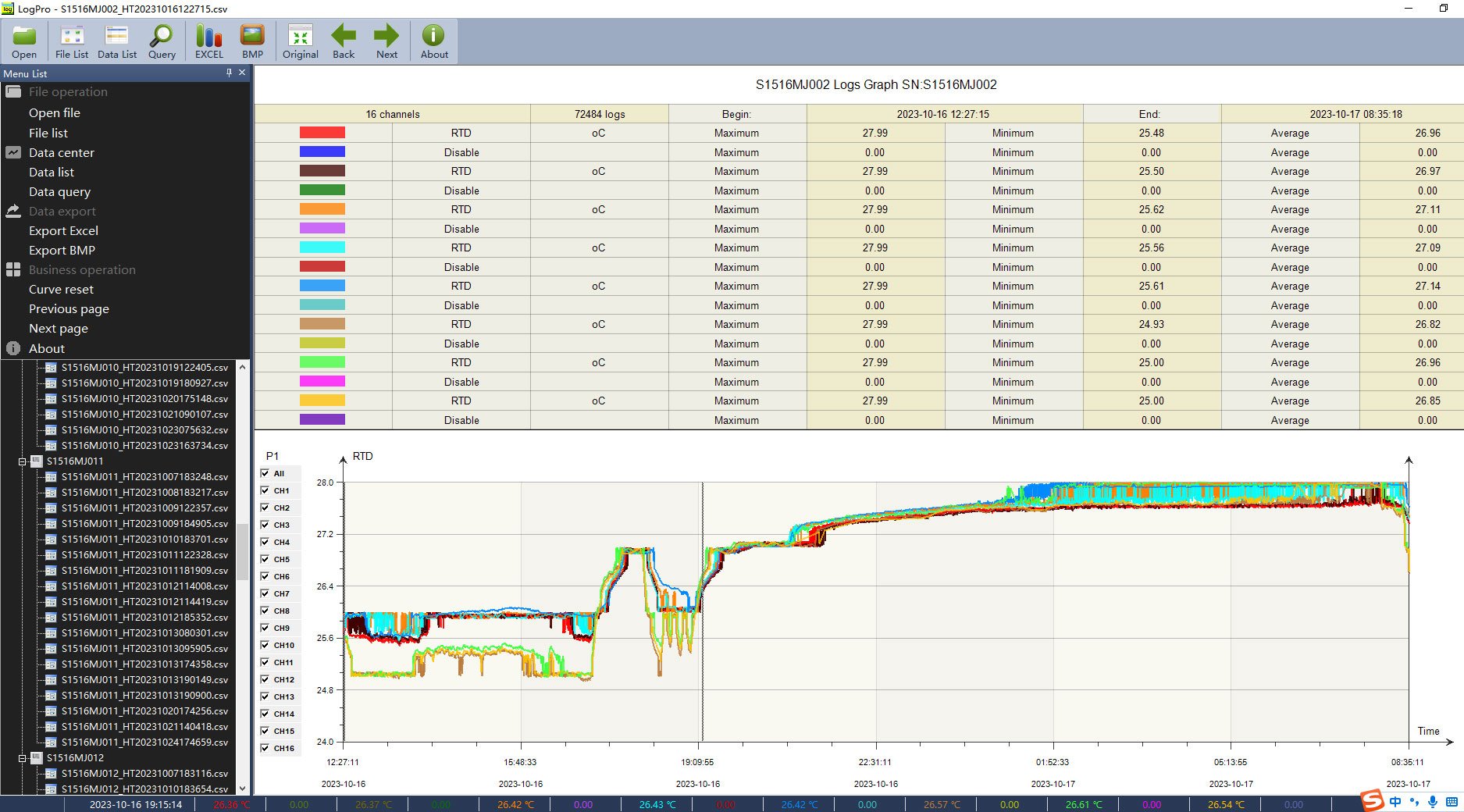

• With data analysis function, it can draw real-time curve and query historical curve

 Model List
