By Brands

TempTale®

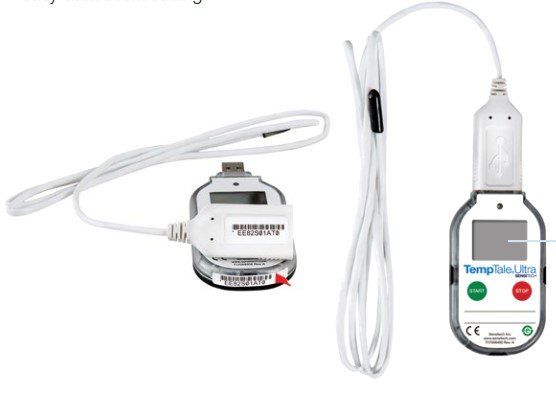

Ultra Probe Monitor
TempTale® Ultra monitor with detachable probe for monitoring shipments, freezers
and refrigerators without opening the carton or doors
The TempTale® Ultra Probe monitor is an ideal solution for monitoring in-transit and ambient storage temperatures for Life
Sciences products between -30°C to +70°C to maintain stability. The detachable probe is 1.5 meters in length, perfect for
monitoring temperature close to the product inside shippers or refrigerators. The TempTale Ultra Probe monitor allows supplychain partners such as customs agents,
third-party logistics (3PL)
providers, distributors, and hospitals to
disconnect/reconnect

the
probe in
order to assess
temperature data and alarm status without opening the carton or
refrigerator.
The TempTale Ultra Probe monitor allows the temperature probe to remain undisturbed throughout the entire journey. For
shipping lanes involving customs agents, this is a must-have requirement (i.e., Saudi Arabia FDA Regulations). The detachable
probe enables receivers to read the LCD status immediately, thereby expediting decisions at the dock. The TempTale Ultra Probe
monitor is available in Single Use, Single Use Overwrite, and Multi Use recording options.

Features and Benefits
• Direct USB connection to PC—no proprietary reader or
USB adapter needed to access data stored on monitor.
• External ambient probe allows customers to record
temperatures inside packaging or fridges and view key
temperature indicators on the monitor’s LCD outside of the
package without opening the container.
• PDF options are configurable: selectable time zones and
languages enhance usability at international receiving sites.
• Temperature monitoring remains more stable now that the
probe can remain next to the product inside the shipper,
while the actual USB monitor remains on the outside for
easy data downloading.
• Matching serial numbers on core device and probe prevent
handling errors.

TempTale Ultra Probe Specifications
Monitoring Recording Options
Single Use, Single-Use with User Programmable Overwrite, or Multiple Use
Probe Temperature Measurement Range -30°C to + 70°C
Probe Sensor Accuracy Range
± 0.5°C from -10°C to +45°C
± 1.0°C from -30°C to -10°C
± 1.0°C from +45°C to +70°C
Monitor Operating Range
-30°C to +70°C
Temperature Resolution
0.1°C over full temperature measurement range
Data Memory Type
Non-volatile 16K Flash memory
Data Storage Capacity
16,000 data points (16K)
Battery Life / Type
12 months operating life / 3.6v lithium battery
Data Sampling Interval
Programmable from 30 seconds up to a maximum of 120 minutes
Water Resistant Housing
IP64 (with detachable probe connected to monitor)
Start Up Delay
0 minutes to 24 hours
Programmable Alarms
• High and low limits – alarm is triggered when temperature exceeds set limits;
• Multi Alarm – up to six: single temperature limit, temperature range, dual temperature range, MKT, duration
Alarm Delay Time Thresholds
Single event (continuous) or cumulative
LCD Indicators
Started, start-up delay, running, stopped; Alarm status: OK ( ), Alarmed ( );
Trip summary data (average, minimum, maximum); Current temperature reading;
Time remaining / time elapsed against alarm-time thresholds;
PROBE; Flashing X when probe disconnects from monitor cable
Cable Length Options
1.5m
Outer diameter of cable (typical)
3.5mm
Start Up Options
Manual push button or automatic launch option
Weight
90.7 grams (includes monitor with 1.5m probe)
Quality Assurance Certifications
CE, RTCA – D016ØG compliant, RoHS compliant, Response time tested to U.S. Pharmacopeia (USP) <1118>
and EN 12830 standards; 3-point NIST® Traceable Certificate of Calibration; Validation Manual
Minimum System Requirements
Windows® PC w/ Windows® 7 Pro (64-bit) or higher; Adobe® Reader 9.0 or higher
Data Analysis and Cold Chain Continuous
Improvement Software
TempTale Manager® Desktop 8.0 or higher; ColdStream® Cold Chain Manager 1.8B or higher;
ColdStream® Web 1.3.1
Computer Interface
USB 2.0, A-type plug
