SEA0030-SEAWARD PV1525 SOLAR PV TESTER KIT 601A910

Category: Solar Power Testers

SEA0030-SEAWARD PV1525 SOLAR PV TESTER KIT

PV:1525 - Comprehensive Testing with Seamless Connectivity



The PV:1525 delivers comprehensive PV system testing, including Ground Continuity, Insulation Resistance, Open Circuit Voltage, and Short Circuit Current measurements.

Featuring an innovative new user interface, it maintains the ease of use from previous models while introducing enhanced features designed for modern test applications. Users can tag test results with installation-specific details, simplifying data management and traceability.

With built-in Bluetooth connectivity, results can be seamlessly transferred to a mobile app for review and synchronisation with software, ensuring your device stays updated with the latest features.

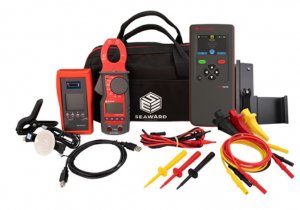

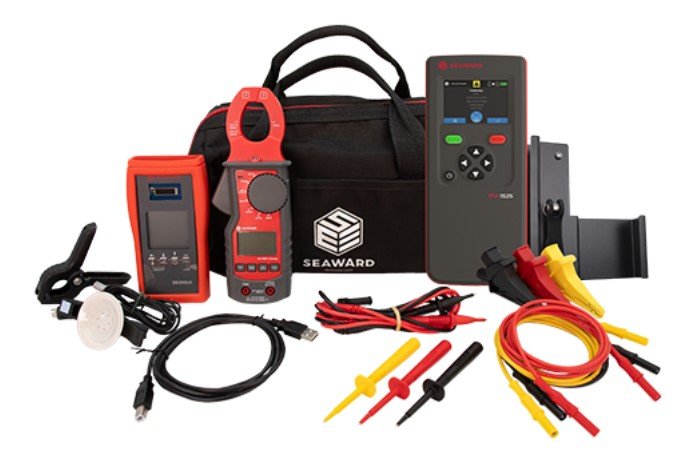

What's included in the Kit?

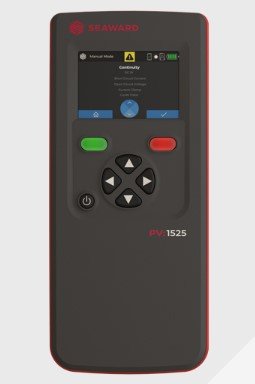

  • PV:1525 instrument
  • Set of 4 mm test probes with alligator clips
  • Set of instrument to MC4 test leads
  • Rechargeable battery pack
  • Battery charging cradle
  • PV:1500 Clamp Meter
  • SS:200LR Irradiance Meter with clamping bracket
  • Carry case
  • SolarCert software license
  • Calibration certificate

Part Number: 601A910



Compare the Seaward Solar Testing Range


General Features PV:1525 PV200/150+
Short Circuit Current Measurement (Max) 25A 15A
Open Circuit Voltage Measurement (Max) 1500V 1000V
Maximum Power Rating  37.5kW  10kW
Maximum Insulation Resistance Voltage 1500V 1000V
Continuity Measurement 200mA 200mA
Display Colour Screen Backlit LCD
Memory 999 999
Test Asset Identification Input Yes No
Intelligent In Rush Current Protection Yes No
Irradiance Measurement Range 1500W/m² 1250W/m²
Current Clamp Connectivity Wireless and Standalone Wired Only
Download Method Bluetooth   Wired / NFC



Technical Specifications


Open Circuit Voltage Measurement (PV Terminals)
Display Range 0.0VDC - 1500VDC
Measuring Range 5.0VDC - 1500VDC
Resolution 0.1VDC maximum
Earth Continuity / Resistance Measurement (4mm Terminals)
Test Voltage Open Circuit >4VDC, nominal
Test Current into 2Ω >200mA
Display Range 0.00Ω - 199Ω
Measuring Range (EN 61557-4) 0.05Ω - 199Ω
Resolution 0.01Ω maximum
Test Leads Zero Zero up to 10Ω
Visible Warning ≥30V AC or DC at inputs
Circuitry Protection Test inhibited if ≥30V AC or DC at inputs
Repeat tests as per IEC61557-4 Approx 4000 1 second tests
Rpe Voltage Measurement (4mm Terminals)
Display Range 30V - 440VAC/DC
Voltage Measuring Range 30V - 440VDC 30V - 440VAC 50-60Hz
Resolution 1V
Operating Power (PV Terminals & wireless using PV:1500 Clamp)
Display Range 0.00kW - 600kW
Measuring Range 0.50kW - 600kW
Resolution 0.01kW

Short Circuit Current Measurement (PV Terminals)
Display Range 0.00ADC - 25.00ADC
Measuring Range 0.50ADC - 25.00ADC
Maximum Power 37.5kW
Resolution 0.01 ADC maximum
Insulation Resistance Measurement (4mm Terminals)
Test Voltage Open Circuit 250, 500, 1000, 1500V (as per IEC61557-2)
Test Current Short Circuit 2mA
Display Range 0.05MΩ - 300MΩ
Measuring Range (EN61557-2) 0.05MΩ - 300MΩ
Resolution 0.01MΩ Maximum
Visible Warning ≥30V AC or DC at inputs
Circuitry Protection Test inhibited if ≥30V AC or DC at inputs
Repeat tests as per IEC61557-4 Approx 4000 1 second tests
Operating Current (Wireless via PV:1500 Clamp)
Display Range 0.1A - 400.0A DC
Current Measuring Range 0.1A 400A DC
General Specification
Weight 1kg / 2.2lb
Dimensions 265 x 115 x 78 mm 10.4 x 4.6 x 3.1 in
Display 3.5in Colour display with Backlight
Power Source 11.55V 2930mAH LiPo Battery
Auto Power Down User Configurable
Onboard Memory 1000 Slots
