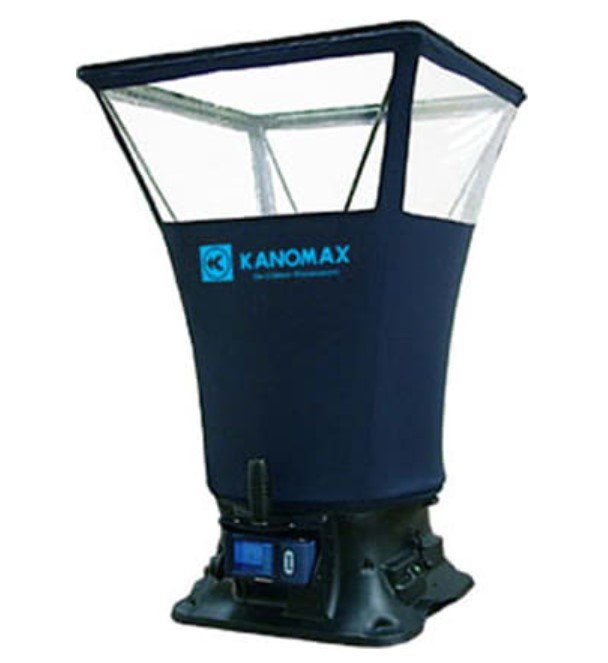

KAN007-KANOMAX 6710 TABMASTER FLOW HOOD Airflow Capture Hood
- The perfect tool for accurate supply and return airflow measurements
- Interchangeable hoods make it a snap to sample the air for any duct size
- Lightweight and easy to handle
- Simultaneously measures and displays air flow, temperature and humidity
- Motorized tilt on meter to allow for meter angle adjustment
- Multi-functional instrument that measures airflow and pressure readings
- Air volumetric flow measurements through registers, diffusers and grilles
- Displays Air velocity direction and measurement in full color for clear, easy viewing
- 23 to 2530 cfm (40 to 4300 m3/h) measuring range
- Simultaneously measures and displays airflow, temperature and humidity
- Displays the direction of the airflow as well as the velocity
- Store up to 3,000 measurements
- Advanced storage feature allows you to store multiple measurements under a single ID#
The Kanomax TABmaster is the perfect tool for accurate supply and return airflow measurements. Interchangeable hoods make it a snap to sample the air for any duct size. The unit is lightweight and easy to handle. The full color screen can be tilted so it's at the optimal viewing angle at any height.
There are several interchangeable hoods of various sizes so it’s easy to find one that will match the size of the supply and exhaust points of any HVAC system. The standard size hood is 2ft×2ft, however, four additional sizes are also available as options:
- 2ft×4ft (610mm×1220mm)
- 1ft×4ft (305mm×1220mm)
- 2ft×3ft (610mm×915mm)
- 3ft×3ft (915mm×915mm)
The capture hood is designed to fit tightly over the air port to eliminate any leakage which could affect the accuracy of a measurement. Users can see the air port through the clear windows at the top of the capture hood ensuring it is lined up correctly. Fiberglass poles support the fabric hood.
A velocity matrix is fixed on the base and airflow is tested through sixteen measuring points on the cross sections of the matrix. The sensor will measure airflow and correct for air pressure and temperature ensuring an accurate reading every time.
