TMP001-THERMOPROBE TP9A(25M) (NEW TP5C) EX-PROOF SAFE PORTABLE PETROLEUM GAUGING THERMOMETER-USA Zone 0 Intrinsically Safe Portable Petroleum Gauging Thermometer re-designed to the latest standards for use in Hazardous Locations
Description

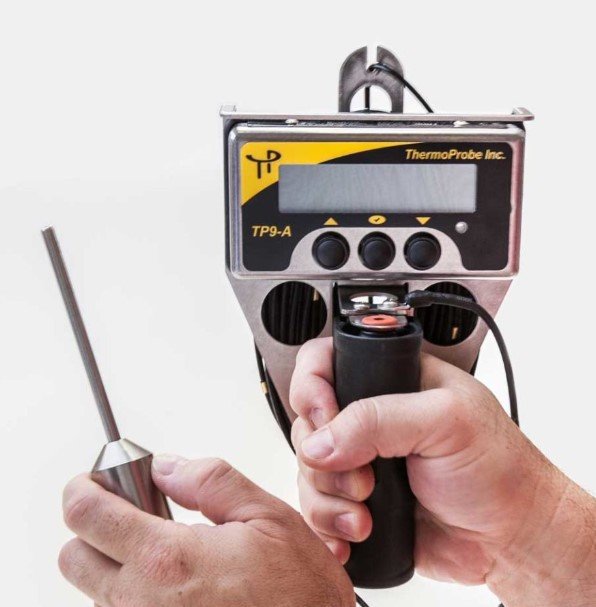

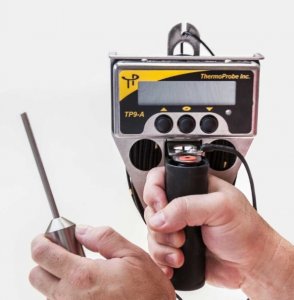

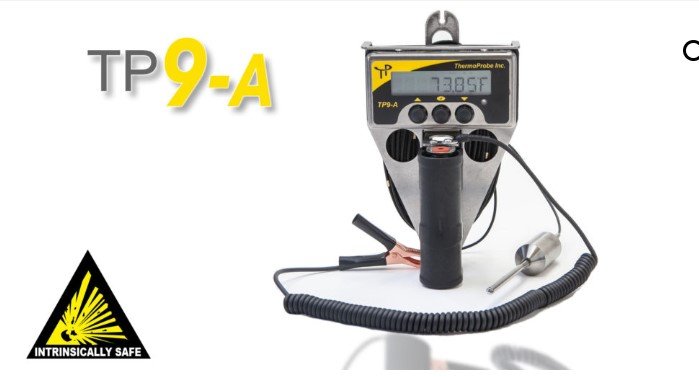

The TP9-A is a Zone 0 intrinsically safe digital gauging thermometer re-designed to the latest standards for use in hazardous locations. With over 30 years experience manufacturing digital thermometers, ThermoProbe has designed the TP9-A with reliable, high accuracy RTD sensors based on our previous industry-standard thermometers such as the TP7-C and TP9.
The latest TP9-A electronics are more accurate than previous models based on our laboratory thermometer technology. The convenient user interface provides a large 1/2” alpha numeric character display and buttons that can be easily used with gloves. An automatic backlight feature is included to help reading the display in low light conditions. An intuitive menu allows the user to easily select Celsius or Fahrenheit units, display resolution, and access calibration. Icons on the display help the user identify temperature stability, battery condition and menu items. The TP9-A comes equipped with easily replaceable AA batteries, providing up to 200 hours of operation.
The TP9-A rugged instrument body is constructed from stainless steel and static-dissipative plastic components. The TP9-A ergonomic probe storage and stainless construction is well suited for gauging heavy products that are hard to clean such as asphalt. With multiple probe configurations and allowable lengths up to 50 meters (165 ft), the TP9 is well suited to many tank gauging applications. The probe assembly is constructed of easy to clean materials such as non-stick cable and stainless steel.
Certifications
The TP9-A is recognized with international (IECEx), European (ATEX), and EurAsian (TR TS) safety certificates.
Applications
Recommended Operation per API 7.2, International Safety Guide for Oil Tankers and Terminals, API 4 and other recommended procedures and standards.
Custody Transfers, Hazardous Location, Intrinsically safe, Inventory, PET, Tank, Pipeline, Barge, Ship, Railcar, Tank Truck, Viscosity, Petroleum, Portable, Digital, Thermometer, Inspector, NIST, Certified, Ex, ATEX, IECEx, EAC, TIIS, GOST, TR TS
Gasoline, Diesel, Asphalt, Molten Sulphur, Petrochemical, Viscous, Caustic, Acid, Chemical, Alkali, Molasses, Syrup, Distilled spirits, Aviation fuel
| Maximum Dimensions |
10”L x 4.25”H x 6.4” W |
|---|---|
| Weight |
3.1 lb (1.4 kg) – with 75' standard weight probe assembly |
| Probe |
Stainless Steel, Sealant, Aramid Fiber Reinforced, FEP or PFA Cable Jacket, Coaxial Construction |
| Enclosure Material |
Stainless Steel Static-dissipative Plastic Probe Holder |
| Batteries |
2 AA Alkaline; Battery Life of approximately 200 hours Battery manufacturer’s battery operating temperature range -4 to 130°F, -20 to 54°C Note: Battery may not provide adequate power if ambient temperature is extremely low or high. |
| Temperature |
Resolution 0.01 Range: -40 to 400°F -40 to 204°C Calibrated Accuracy: ±0.2°F from 32 to 200°F ±0.5°F from 200 to 400°F ±0.1°C from 0 to 100°C ±0.3°C from 100 to 200°C 4 Point NIST Traceable Report of Test Long-term drift not to exceed 0.05%/year Meets API requirements |
| Certification |
ATEX & IECEx (Ex ia IIB T4 Ga) |
