Achieve Precision with a Smart and Versatile Digital Balance

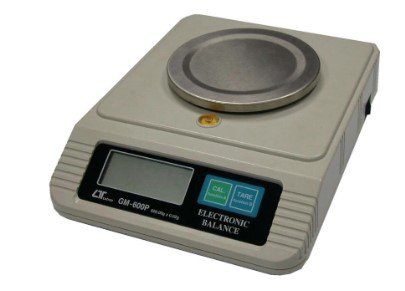

The GM-600P Digital Balance offers accurate and reliable weight measurements with a professional and compact design, making it an essential tool for various applications in laboratories, industrial environments, and quality control.

 Exceptional Features of the GM-600P:

1. High Accuracy and Performance: Features a microprocessor circuit for high accuracy and better performance.

2. High Resolution and Measuring Capacity: Measures up to 600 grams with a resolution of 0.02 grams, and up to 21.164 ounces with a resolution of 0.001 ounces.

3. Large LCD Display: Equipped with a large 20.9 mm (0.8") digit size LCD display for easy readout.

4. Multi-Unit Display: Displays measurements in grams or ounces, selectable by the internal slide switch.

5. Self-Calibration System: Built-in self-calibration system, with calibration values stored permanently in EEPROM, ensuring high precision.

6. Data Output: RS-232 and USB interface for computer connectivity.

7. Durable Construction: Heavy-duty ABS plastic housing ensures durability and longevity.

 Technical Specifications:

- Display: LCD, 20.9 mm (0.8") digit size, 5 digits with annunciator

- Measurement Range:

  - Capacity: 600 g / 21.164 oz

  - Resolution: 0.02 g / 0.001 oz

  - Minimum Display Weight: 0.20 g / 0.007 oz

- Accuracy: ± (0.05% + 0.08 g) within two hours after self-calibration at 23 ± 5℃

- Unit Selection: Grams or ounces, selectable by internal slide switch

- Functions: Weighing and counting scale

- Sampling Time: Approximately 1 second

- Tare Control: Full capacity

- Transducer: Load cell

- Circuit: Microprocessor circuit

- Auto Calibration: Use 200 g or 400 g standard weight for automatic self-calibration

- Data Output: RS-232 serial output, 9600 baud rate; USB interface

- Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)

- Operating Humidity: Max. 80% RH

- Size:

  - Cabinet: 250 x 190 x 70 mm (9.8 x 7.5 x 2.8 inches)

  - Platform: Round, 120 mm diameter (4.7 inches)

- Power Supply: 6 x 1.5V AA (UM-3) batteries or DC 9V adapter

- Power Consumption: Approximately DC 17 mA

 Included Accessories:

- Operation Manual

 Optional Accessories:

- RS232 Interface Cable (Model: UPCB-02): For connecting between the scale and a computer (COM port)

- USB Interface Cable (Model: USB-01): For connecting between the scale and a computer (USB port)

- Calibration Weight (Model: WT-200): 200 gram standard weight for self-calibration

- AC/DC 9V Power Adapter (Model: AP-9VA)

- Data Acquisition Software (SW-U801-WIN, SW-E802)

 Versatile Applications:

Ideal for use in laboratories, industrial environments, quality control, and various other applications requiring precise weight measurements.

Invest in the GM-600P Digital Balance for reliable, precise measurements and a robust design that meets the diverse needs of various industries with precision and ease.
