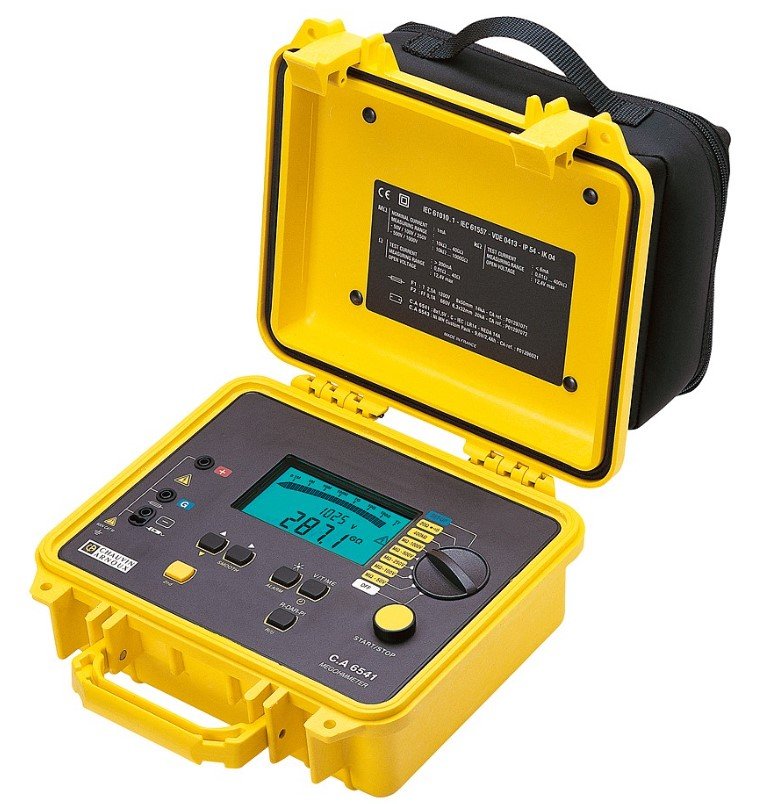

The C.A 6541 is a high-performance 50V to 1kV insulation tester; it supports the most demanding site conditions and is ideal for qualitative insulation analysis.
insulation: up to 4 TΩ (5 cal.) at 50/100/250/500 and 1,000 V DC
automatic calculation of insulation quality ratios: DAR and PI
programmable test duration and plotting of the R(t) curve (automatic storage of 20 samples)
automatic indication of voltage before and after measurement: 1 to 1,000 V AC/DC
resistance: 0.01 Ω to 400 kΩ
continuity: 0.01Ω to +40 Ω (audible beep and lead compensation)
automatic measurement capacity after each insulation measurement: 0.005 to 4.999 µF
microprocessor-controlled
large LCD screen with digital display + bargraph
backlighting
SMOOTH function
insulation test voltages can be locked
programmable alarms
long battery life: 8 x LR14 batteries (21,000 insulation tests of 5s each)
remote control probe available as an option
electrical safety: IEC 61010 600V CAT III and IEC 61557
