Resistance Decade Box, Resistance Resolution 10mΩ, Absolute Maximum Resistance Measurement 12kΩ

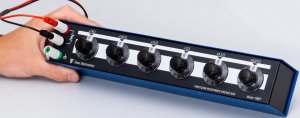

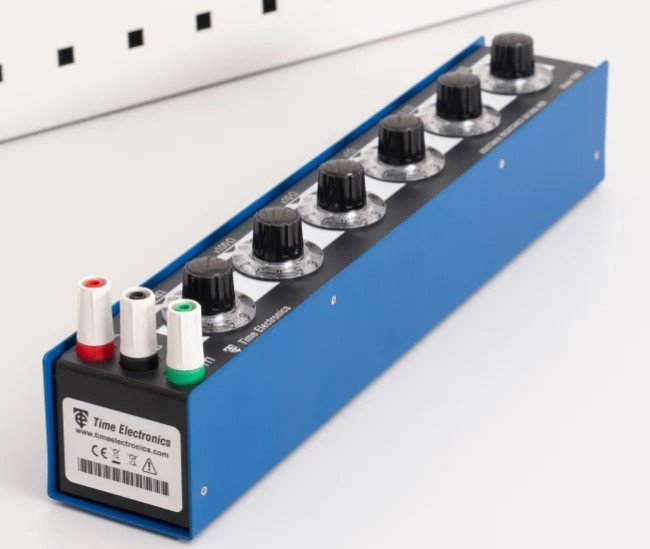

A precision resistance decade box suitable for a wide range of simulation work. High accuracy, long term stability, and low temperature coefficient make the 1067 ideal for simulating and calibrating precision Pt100 sensors and temperature indicators/meters that use resistive sensors.
Special care has been taken in the construction of this precision decade box to ensure that the residual end resistance is as low and as stable as possible. Multiple self-cleaning silver alloy contacts are used for each position to ensure outstanding performance and long life.
Housed in a robust metal case the 1067 is fully screened and low thermal EMF terminals are used. The slimline design means it takes up minimum bench space and is easily transportable.
Technical Specification
|
Range
|
0 to 12 kΩ
|
|
Resolution
|
10 mΩ steps
|
|
Number of Decades
|
6, each decade settable from 0 to 11
|
|
Accuracy
|
± 0.01 % of setting ± 2 mΩ, after deduction of residual end resistance ± 1 mΩ for residual variation. At calibration temperature of 22 °C.
|
|
Residual Resistance
|
Less than 10 mΩ. Less than 1 mΩ variation
|
|
Power Rating
|
0.35 watt per resistor
|
|
Voltage Rating
|
200 V DC at maximum resistance setting
|
|
Stability
|
20 ppm/year (> 1 Ω), 100 ppm/year (< 1 Ω)
|
|
Current Rating
|
10 mΩ range: 3 A, 100 mΩ range: 2 A, 1 Ω range: 600 mA, 10 Ω range: 200 mA, 100 Ω range: 60 mA, 1 kΩ range: 20 mA
|
|
Insulation
|
Case to resistance terminals 2 kV DC maximum
|
|
Temperature Coefficient
|
Less than 10 ppm/°C (> 1 Ω). Less than 20 ppm/°C (< 1 Ω)
|
|
Operating Torque
|
Less than 0.1 Nm
|
|
Contacts
|
Make before break – silver alloy
|
General Specification
|
Dimensions
|
W 355 x H 63 x D 89 mm
|
|
Weight
|
1.1 kg
|
|
Optional Extras
|
Calibration certificates: Traceable (factory) and accredited (ISO 17025)
|
