Oldham 8-Relay Module For Mx 43

3 MX43 versions available

The MX43 gas controler is available in 3 versions to meet the greatest number of applications:

• MX43M-4: 4-line wall version allowing the connection of 4 analog 4-20 mA sensors or up to 16 digital sensors distributed over 4 lines

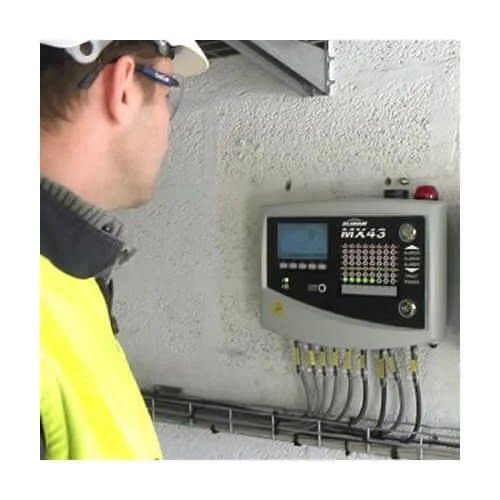

• MX43M-8: Wall-mounted version 8 lines allowing to connect 8 analog sensors 4-20 mA or up to 32 digital sensors distributed on 8 lines
• MX43R-8: Rack version 19’’ / 4U 8 lines allowing to connect 8 analog sensors 4-20 mA or up to 32 digital sensors distributed on 8 lines



Many input/output modules

The MX43 gas detection unit accepts various input/output modules to increase the system's capacities and flexibility.

• Addressable module with 8 analog inputs that can receive all types of 4-20 mA analog transmitters
• Addressable 4 or 8 relay module (+ 2 logic inputs) that can be deported as close as possible to the controls.
• Addressable module with 16 digital inputs that can receive all digital information (emergency stop, limit switch, fire alarm).
• Addressable module with 4 analog outputs for connection to a recorder, a PLC, a building management system, etc.

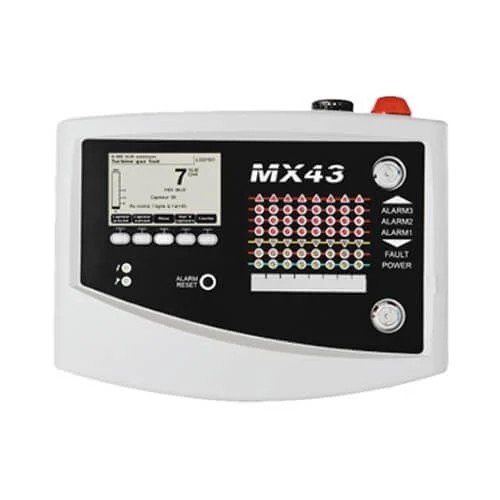

MX43 gas controller main assets

• Up to 32 digital or analog gas detectors

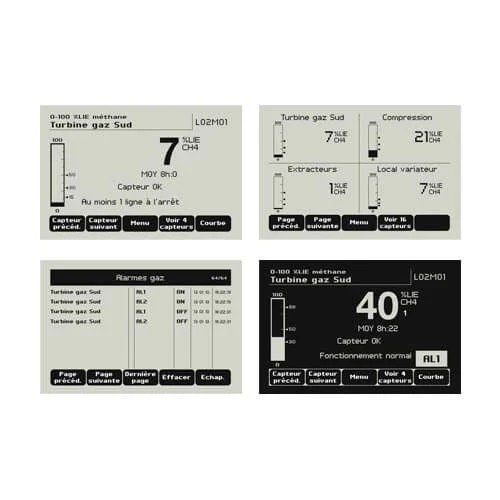

• Large graphic LCD display and customizable views
• 5 alarm levels per measurement channel (Al1, Al2, Al3, and average)
• Logs of the last 512 events (serial) and archives
• measurements and parameters on optional USB stick
