Achieve Precision with a Smart and Versatile LCR Meter

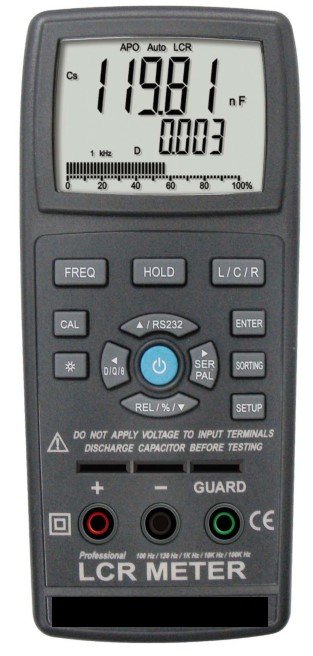

The LCR-9184 Professional LCR Meter offers accurate and reliable measurements of inductance, capacitance, and resistance with a compact and durable design, making it an essential tool for various applications in research, development, production line testing, and quality control.

Exceptional Features of the LCR-9184:

1. Wide Test Frequency Range: Supports five different test frequencies: 100 Hz, 120 Hz, 1 KHz, 10 KHz, and 100 KHz, providing flexibility for various measurement needs.

2. Comprehensive Measurement Parameters: Measures inductance (Ls/Lp), capacitance (Cs/Cp), resistance (Rs/Rp) with dissipation factor (D), quality factor (Q), phase angle (θ), and equivalent series resistance (ESR) parameters.

3. High Accuracy and Resolution: Provides 19,999/1,999 counts dual LCD display for high resolution and accurate readings.

4. AutoLCR Smart Check: Features AutoLCR smart check and measurement for efficient and user-friendly operation.

5. Data Interface: Includes RS232/USB PC computer interface for data logging and analysis.

Technical Specifications:

- Display: Dual LCD display, 56.4 x 52.9 mm with green backlight (ON/OFF)

- Measurement Range:

  - Inductance (L): 200.00 uH to 2000.0 H

  - Capacitance (C): 2000.0 pF to 2.000 mF

  - Resistance (R): 20.000 Ω to 200.0 MΩ

- Accuracy:

  - Inductance (L):

    - 20 uH: ± (1% + 5d)

    - 200 uH: ± (1% + 5d)

    - 2000 uH: ± (0.8% + 5d)

    - 20 mH to 2000 mH: ± (0.5% + 5d)

    - 20 H: ± (0.5% + 5d)

    - 200 H: ± (0.8% + 5d)

    - 2000 H: ± (1% + 5d)

  - Capacitance (C):

    - 20pF: ± (2% + 5d)

    - 200pF: ± (1% + 5d)

    - 2000 pF to 200 nF: ± (0.5% + 5d)

    - 2000 nF: ± (1% + 5d)

    - 20 uF to 200 uF: ± (0.5% + 5d)

    - 2000 uF: ± (1% + 5d)

    - 20 mF: ± (2% + 5d)

  - Resistance (R):

    - 20Ω: ± (0.5% + 5d)

    - 200 Ω to 200 KΩ: ± (0.5% + 5d)

    - 2 MΩ: ± (1% + 5d)

    - 20 MΩ: ± (2% + 5d)

    - 200 MΩ: ± (2% + 5d)

- Test Frequency: 100 Hz, 120 Hz, 1 KHz, 10 KHz, 100 KHz

- Test Signal Level: 0.6 V rms typically

- Calibration: Open/Short calibration

- Data Hold: Freeze the display reading

- Auto Power Off: Saves battery life or manual off by push button

- Operating Temperature: 0 to 50℃ (32 to 122℉)

- Operating Humidity: Less than 85% RH

- Power Supply: 006P DC 9V battery or AC/DC 9V adapter (optional)

- Power Consumption: Approximately DC 16 mA

- Dimensions: 193 x 88 x 41 mm

- Weight: 420 g

Included Accessories:

- Instruction Manual

- Alligator Clips (Red and Black)

Optional Accessories:

- SMD Tester (Model: SMDA-22)

- SMD Test Clip (Model: SMDC-21)

- Holster (Model: HS-03)

- AC to DC 9V Adapter

- Hard Carrying Case (Model: CA-06)

- Soft Carrying Case (Model: CA-05A)

- USB Cable (Model: USB-01)

- RS232 Cable (Model: UPCB-02)

- Excel Data Acquisition Software (Model: SW-E803)

Versatile Applications:

Ideal for use in general applications, troubleshooting, maintenance, education, vocational training, production line testing, radio and TV services, working standards, research design & development, and physics laboratory work.

Invest in the LCR-9184 Professional LCR Meter for reliable, precise measurements and a robust design that meets the diverse needs of various industries with precision and ease.
