Description

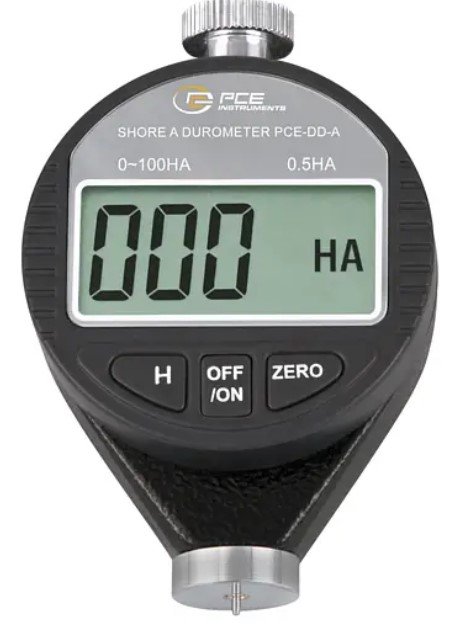

PCE-DD-A Durometer To measure Shore A hardness in soft gums, rubber and elastomers / Easy-to-read digital display / Resolution of 0.5 degrees of hardness
The PCE-DD-A Durometer is an ergonomic device that checks Shore hardness in gum, plastic and other non-metallic materials. The PCE-DD-A Durometer is used primarily for soft gums, elastomers, natural rubber, neoprenes, casting resin, white PVC, leather, etc. If the material thickness is not enough, it should be tightened on the back with the same material to increase its thickness. Calibration is not an option.
Highlights
- Handheld device
- Large digital display
- Plastic case included
- For Shore A measurements
- Easy to use
Specification
| Hardness | |
| Measuring range | 0 ... 100 Shore A |
| Resolution | 0,5 Shore A |
| Accuracy | ±2 Shore A |
| General technical data | |
| Measuring functions | HOLD |
| Display type | LCD |
| Indenter | 35° |
| Impact device | D-type |
| Measuring depth | 0 ... 2.5 mm |
| Sample thickness | min. 6 mm |
| Test force | 12,5 N |
| Menu language | English, English (GB) |
| Protection class (device) | IP20 |
| Power supply | batteries |
| (Rechargeable) battery | 1 x 1,5 V LR44 , Alkali-manganese |
| Capacity | 140 mAh |
| Operating conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 90 % RH |
| Dimensions ( L x W x H ) | 115 x 60 x 25 mm |
| Weight | 300 g |
Delivery Scope
1 x PCE-DD-A Durometer
1 x Case
1 x Battery
1 x User's manual
