Product Overview

Achieve Precision with a Smart and Versatile Turbidity Meter

The TU-2016 Turbidity Meter offers accurate and reliable measurements with a robust design, making it an essential tool for various applications in water quality testing, food and beverage industry, and more.

Exceptional Features of the TU-2016:

1. ISO 7027 Compliance: Designed to meet ISO 7027 standards, ensuring high-quality and reliable measurements.
2. Wide Measurement Range: Measures turbidity from 0 to 1,000 NTU with auto-ranging capability, covering a wide spectrum of applications.
3. High Resolution and Accuracy: Provides high resolution of 0.01 NTU for measurements up to 49.99 NTU and 1 NTU for higher ranges, with an accuracy of ±5% reading or ±0.5 NTU (whichever is greater) for low range and ±5% reading or ±5 NTU for high range.

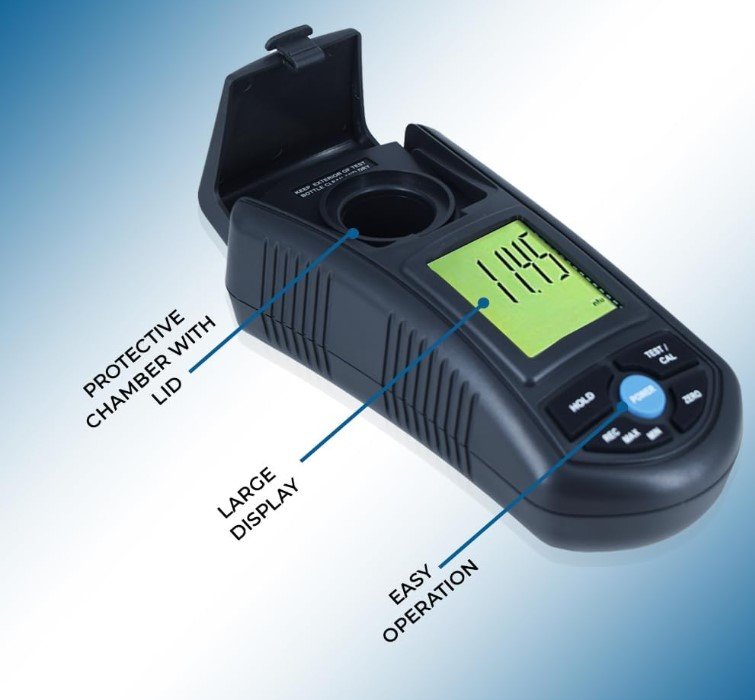

4. User-Friendly Operation: Features a jumbo LCD display for easy readout, four operation buttons, two calibration points, and a data hold function for freezing the desired value on display.
5. Portable and Durable Design: Battery-operated for field and on-site testing convenience, with a heavy-duty compact housing and a hard carrying case for easy transportation and operation.

Technical Specifications:

- Measurement Range:

  - 0.00 to 50.00 NTU (Resolution: 0.01 NTU)

  - 50 to 1,000 NTU (Resolution: 1 NTU)

- Accuracy:

  - 0.00 to 49.99 NTU: ±5% reading or ±0.5 NTU (whichever is greater)

  - 50 to 1,000 NTU: ±5% reading or ±5 NTU (whichever is greater)

- Light Source: LED, 850 nm

- Detector: Photodiode

- Standards Compliance: ISO 7027

- Response Time: Less than 10 seconds

- Sample Volume Needed: 10 mL

- Display: LCD size 41 mm x 34 mm

- Display Sampling Time: Approx. 1 second

- Power Supply: DC 1.5V battery (UM4, AAA) x 6 PCs or DC 9V adapter

- Power Consumption:

  - Standby: Approx. DC 3.5 mA

  - Testing: Approx. DC 36 mA

- Dimensions: 155 x 76 x 62 mm (6.1 x 3.0 x 2.4 inches)

- Weight: 320 g (0.70 lb) including battery

- Operating Temperature: 0 to 50℃

- Operating Humidity: Less than 85% RH

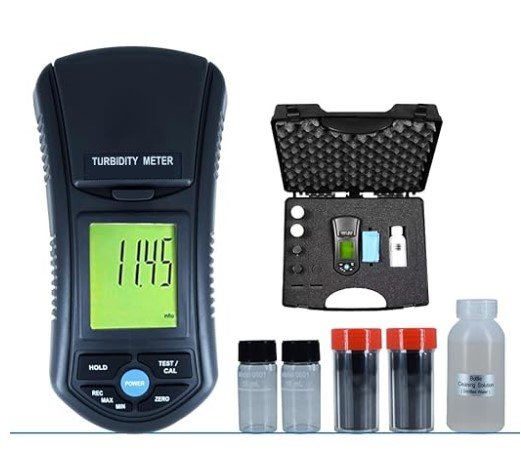

Included Accessories:

- Testing bottle with 0 NTU standard solution: 1 PC

- Testing bottle with 100 NTU standard solution: 1 PC

- Empty testing bottles: 2 PCs

- Clean cloth: 1 PC

- Clean solution (distilled water): 1 bottle

- Hard carrying case (CA-07A): 1 PC

Optional Accessories:

- Testing bottle with 100 NTU standard solution (TU-100NTU)

- Testing bottle with 0 NTU standard solution (TU-0NTU)

- Empty testing bottle (0601)

- AC to DC 9V power adapter

Versatile Applications:

Ideal for testing municipal water, food and beverage water, or any other aqueous solution where fluid clarity is important.

Invest in the TU-2016 Turbidity Meter for reliable, precise measurements and a robust design that meets the diverse needs of various industries with precision and ease.
