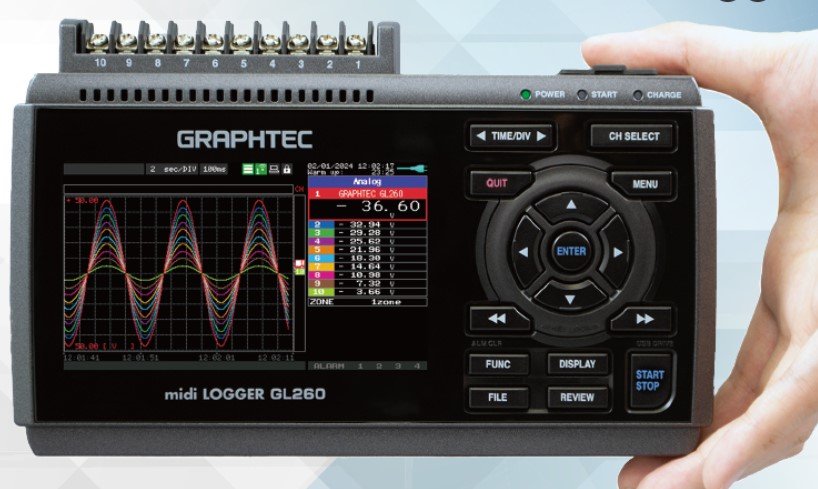

Graphtec GL260

• Compact, standalone data logger with alarm history, memory loop, CH to CH calculation functions
• Software provided for date logger settings, data recording, storage, playback; Intuitive UI design
• Measurements - Voltage (20mV-100V); Thermocouple (K,J,E,T,R,S,B,N,C); Humidity (w/optional B-530)
• 3in TFT color LCD with improved visibility (increased chromaticity, font change, simplified menu)
• 10 analog input channels; All channels isolated, balanced input; Scan channels for sampling

Midi Data Logger (10 Channels, 4.3in TFT Display)

Several Versions Available

There are several versions of the Graphtec GL Data Loggers available. Please see the table below for a comparison.

* Requires Input Terminal Block, ordered separately, B-563, B-563SL, B-563SL-30 or B-565

GL260 New Features and Functions

The Graphtec GL260 is the functional replacement for the GL240 (same form factor) with enhanced capabilities. The internal memory has been increased to 8GB and is expandable via an SD card. A new battery is required for use in the GL260 (B-573).

The Graphtec GL260 display features increased chromaticity, changed font with added margins to improve visibility, and the menu tree has been simplified and made more intuitive. The operability improvements include a simplified waveform setting (SPAN /POSI/TRACE able to be configured in less steps), a web server function (faster update speeds/new setup screen) and a HELP-QR function (providing details on the related web page).

One of the new functions included with GL260 is an alarm history that shows the date/time history of alarm occurrence/cancellation. This is useful for wanting a record of condition or to check historical data during recording. The alarm history data is saved in .GAH format and can be opened as a text file.

GL260 Overview

GL260 Voltage and Thermocouple Data Logger system features 10 isolated analog input channels, 4 discrete inputs, and 4 discrete outputs with extremely flexible triggering conditions. Use the GL260 either stand-alone with a built-in battery compartment or pc-connected via the USB port.

Model GL260 is a third-generation data logger product with exceptional price/performance featuring 10 analog channels augmented by four discrete inputs and outputs. The discrete inputs can be configured as a group to be either logic inputs or pulse inputs. When configured for pulse, each of the four channels can be configured to measure frequency or to count. The four discrete outputs are alarms that can be triggered by a variety of easily-defined analog and pulse/discrete input channel conditions. The analog input channels may each be configured to measure a direct-connected voltage in the range of 20 mV to 100 V full scale across 12 ranges, or for a direct-connected thermocouple of any type to measure temperature. Each of the GL260’s analog input channels is electrically isolated from other channels and from power ground allowing off-ground measurements using shunts, as well as powered or grounded thermocouples.

The most powerful GL260 feature is its triggering flexibility. Data recording can be independently started or stopped as a function of analog and pulse/discrete signal level (single or windowed), alarm, date and time, and day-of-the-week. Triggers can also be configured to operate only once, or to automatically repeat. The ability to of the GL260 to adapt to virtually any desired trigger condition allows the instrument to operate unattended for long periods of time with complete autonomy.

The GL260 operates either connected to a PC or entirely stand-alone. Connection to a PC may be over a standard USB or optional wireless connection. Either connection approach may take advantage of supplied PC-side software to configure, acquire, display, and record digitized information for storage directly to the PC’s HDD. Acquired data may be retrieved for review and analysis after recording, including the ability to export to Microsoft Excel. Using the GL260’s wireless option enables the instrument’s networking features, allowing it to be remotely configured and managed using the standard Web browser of any computer or smart phone. The GL260 is provided with 4 GB of non-volatile memory embedded inside the instrument. The instrument supplies an external SD card slot for additional storage if needed.

Finally, the measurement reach of a wireless-enabled GL260 is further extended by use of the GL100 accessory. The GL100 wirelessly enables measurements of temperature/humidity, acceleration, CO2, illuminance, ac current, and more.

In The Box

• GL260 Midi Data Logger
• Ferrite core
• AC cable/AC adapter
• Quick Start Guide
