Introduction

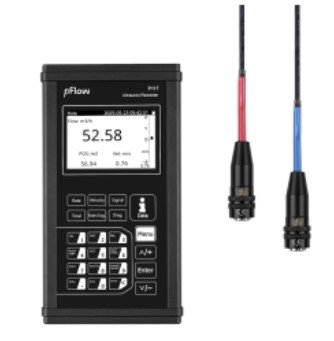

The P117 Portable Ultrasonic Flowmeter allows users to conduct flow measurement checks at multiple points in a flow process without permanent installation. This universal transit-time meter boasts a dual-function push button interface, ergonomic handheld design, and a beautiful 3.5in TFT backlit digital display, greatly simplifying setup and data collection. Compared to traditional flowmeters, it offers high precision, reliability, capability, and low cost. It features TVT technology, fewer hardware components, low voltage broadband pulse transmission, and low power consumption. The user-friendly menu makes it easy to use. It provides daily, monthly, and yearly totalized flow, with parallel operation of positive, negative, and net flow totalizes. These have a scale factor (span) and a 7-digit display. The totalize pulse and frequency output are transmitted via relay and open collector.
Performance Index
Flow range
0.03m/s ~6m/s
Accuracy
±1.0% of measured value
Repeatability
0.3%
Medium
Water
Pipe Size
1"~47" (25mm~1200mm)
Functional Index
Output
Analog output: 4~20mA, Max 750Ω
SD card
Max: 512 files,
Interval:1 ~ 60 seconds.
Power supply
rechargeable Lithium Battery Power ( continuous operation of main battery 6 hours ).
Keypad
Tactile Keys
Display
3.5 inch TFT black and white screen( 320 x 240 ), backlit LCD.
Humidity
Relative humidity 0~99%, No condensation
Temperature
Transmitter:-10℃ ~50℃(-40°F to 176°F );
Measuring medium:-40℃~80℃(Standard).
Physical Characteristics
Transmitter
NEMA13 ( IP54 ).
Transducer
Encapsulated design, IP68
Standard cable length: 5m.
Weight
Transmitter: 1kg.
