Achieve Precision and Comprehensive Data Logging with a Professional Air Quality Monitor

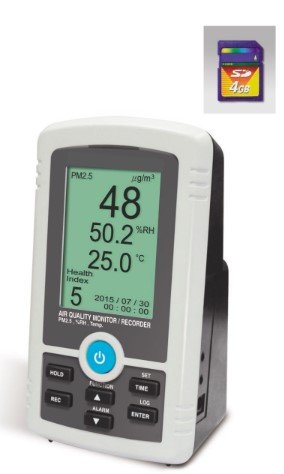

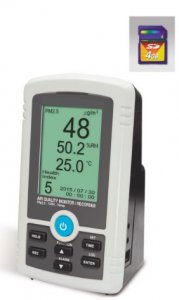

The PM-1063SD Air Quality Monitor provides accurate and reliable measurements of PM2.5, humidity, and temperature, with real-time data logging capabilities, making it an essential tool for various industrial and environmental applications.

Exceptional Features of the PM-1063SD:

1. Real-Time Data Logger: Saves measuring data along with time information (year, month, date, hour, minute, second) into the SD memory card, enabling easy download to Excel for further data analysis without extra software.

2. Multi-Function Measurement: Measures PM2.5 (particulate matter), humidity, and temperature, providing comprehensive air quality analysis for various environments.

3. High Accuracy and Resolution: Features high accuracy (±10% reading ±20 µg/m³ for PM2.5) and resolution (1 µg/m³ for PM2.5), ensuring precise and repeatable measurements.

4. User-Friendly Design: Equipped with a large dot matrix LCD display with backlight for easy reading, data hold function, max/min value recall, and alarm settings with beeper sound output.

5. Advanced Connectivity: Includes RS232/USB computer interface for data output, enhancing data management and integration with other systems.

Technical Specifications:

- Display:

  - Type: Dot matrix LCD with backlight

  - Size: 55.4 x 72.9 mm (2.18 x 2.87 inches)

  - Resolution: 128 x 240 pixels

- Measurement Functions:

  - PM2.5 (Particulate Matter):

    - Range: 0 to 250 µg/m³

    - Resolution: 1 µg/m³

    - Accuracy: ±(10% reading ±20 µg/m³)

  - Humidity:

    - Range: 5 to 95 %RH

    - Resolution: 0.1 %RH

    - Accuracy: <70% RH: ±3 %RH, ≥70% RH: ±(3% reading + 1% RH)

  - Temperature:

    - Range: 0 to 50℃ (32 to 122℉)

    - Resolution: 0.1℃

    - Accuracy: ±0.8℃ (±1.5℉)

- General Specifications:

  - Data Logger:

    - SD memory card capacity: 1 GB to 32 GB

    - Auto sampling time: 2 to 3600 seconds

    - Manual mode: Push data logger button once to save data one time

  - Memory Recall: Maximum and minimum value recall

  - Alarm Setting: Beeper sound output for alarm settings

  - Health Index: Detection and alarm with index 0-9

  - Over-Range Indication: LCD display shows "OL", data save shows "999"

  - Power Supply:

    - 6 x 1.5V AA (UM-3) batteries

    - AC to DC 9V power adapter

  - Power Consumption: Approx. DC 122 mA (Backlight ON: DC 142 mA)

  - Operating Environment:

    - Temperature: 0 to 50℃ (32 to 122℉)

    - Humidity: Less than 80% RH

  - Dimensions: 164 x 93 x 72 mm (6.5 x 3.7 x 2.8 inches)

  - Weight: 362 g (0.8 lb)

Accessories Included:

- Instruction Manual: 1 PC

- AC to DC 9V Power Adapter: 1 PC

Optional Accessories:

- SD Memory Card (4 GB)

- USB Cable (USB-01)

- RS232 Cable (UPCB-02)

- Data Acquisition Software (SW-E816, SW-E802)

Advanced Features:

- Microprocessor Circuit: Ensures high accuracy and reliability with special functions.

- Built-In Clock and Calendar: Provides real-time data recording.

- Health Index Detection: Offers detection and alarm with health index.

- Data Hold Function: Freezes the display reading for convenient recording.

- RS232/USB Interface: For data management and integration with computer systems.

- Manual Data Record: Can set different position numbers (1 to 99).

Applications:

- Environmental Monitoring: Measure air quality in various environments including industrial, residential, and public spaces.

- Health and Safety: Monitor air quality to ensure a safe and healthy environment.

- Industrial Maintenance: Assess air quality in industrial settings to ensure compliance with safety standards.

Invest in the PM-1063SD Air Quality Monitor for precise and reliable air quality measurements, ensuring high performance and versatility in various industrial and environmental applications.
