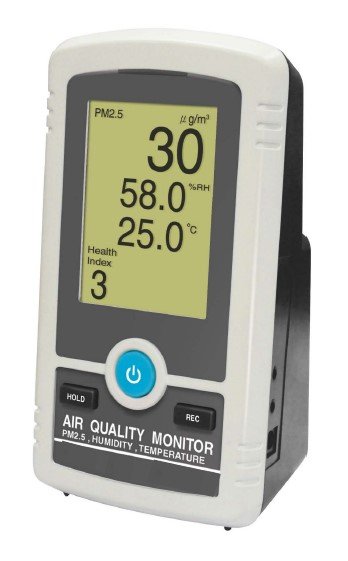

Achieve Precision and Versatility with a Professional Air Quality Monitor

The PM-1053 Air Quality Monitor provides accurate and reliable measurements of PM2.5, humidity, and temperature, making it an essential tool for monitoring air quality in various indoor environments.

Exceptional Features of the PM-1053:

1. Comprehensive Air Quality Monitoring: Measures PM2.5 concentration, humidity, and temperature, providing a complete overview of indoor air quality.

2. High Accuracy and Resolution: Features high accuracy (±10% reading ±20 µg/m³ for PM2.5) and resolution (1 µg/m³ for PM2.5, 0.1% RH for humidity, 0.1℃ for temperature), ensuring precise and repeatable measurements.

3. User-Friendly Design: Equipped with a large dot matrix LCD display with backlight for easy reading, and user-friendly controls including data hold, max/min recall, and auto power off to save battery life.

4. Advanced Connectivity: Includes RS232/USB computer interface for data output, enhancing data management and integration with other systems.

5. Portable and Durable: Constructed with a strong, lightweight housing, making it easy to carry and durable for long-lasting use.

Technical Specifications:

- Display:

  - Type: Dot matrix LCD with backlight (128 x 240 pixels)

  - Size: 55.4 x 72.9 mm

- Measurement Functions:

  - PM2.5 (Particulate Matter):

    - Range: 0 to 250 µg/m³

    - Resolution: 1 µg/m³

    - Accuracy: ±(10% reading ±20 µg/m³)

  - Humidity:

    - Range: 5% to 95% RH

    - Resolution: 0.1% RH

    - Accuracy:

      - <70% RH: ±3% RH

  - Temperature:

    - Range: 0.0 to 50.0℃ (32.0 to 122.0℉)

    - Resolution: 0.1℃

    - Accuracy: ±0.8℃ (±1.5℉)

- Data Logger:

  - Sampling Time: Approx. 1 second

  - Data Hold: Freezes displayed reading

  - Memory Recall: Maximum and minimum values

- Power Supply:

  - 1.5V AA (UM-3) batteries x 6 PCs (Alkaline or heavy-duty type)

  - DC 9V power adapter

  - Power Consumption:

    - Approx. DC 122 mA (normal operation)

    - Approx. DC 142 mA (with backlight on)

- Operating Environment:

  - Temperature: 0 to 50℃

  - Humidity: Less than 80% RH

- Dimensions:

  - 164 x 93 x 72 mm (6.5 x 3.7 x 2.8 inches)

- Weight: 362 g (0.8 lb)

Accessories Included:

- Instruction Manual: 1 PC

- AC to DC 9V Power Adapter: 1 PC

Optional Accessories:

- USB Cable (USB-01)

- RS232 Cable (UPCB-02)

- Data Acquisition Software (SW-E816, SW-E802)

- RS232 to WiFi Converter (RSW-923, IOW-924)

- Replacement Air Filter (AF-01)

Advanced Features:

- Microprocessor Circuit: Ensures high accuracy and reliability with special functions.

- Large Dot Matrix LCD Display: Provides clear and easy-to-read measurements.

- Data Hold and Memory Recall: Stores maximum and minimum readings for easy reference.

- Auto Power Off: Conserves battery life by shutting off the meter automatically.

- RS232/USB Interface: Enhances data management and integration with computer systems.

- Portable and Durable: Suitable for continuous use in various indoor environments.

Applications:

- Indoor Air Quality Monitoring: Monitor air quality in homes, offices, and public buildings.

- Industrial Monitoring: Assess air quality in industrial environments.

- Environmental Assessments: Conduct environmental assessments to determine air quality levels.

Invest in the PM-1053 Air Quality Monitor for precise and reliable air quality measurements, ensuring high performance and versatility in various industrial, environmental, and residential applications.
