Description

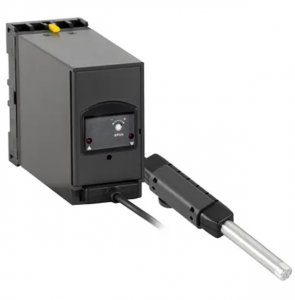

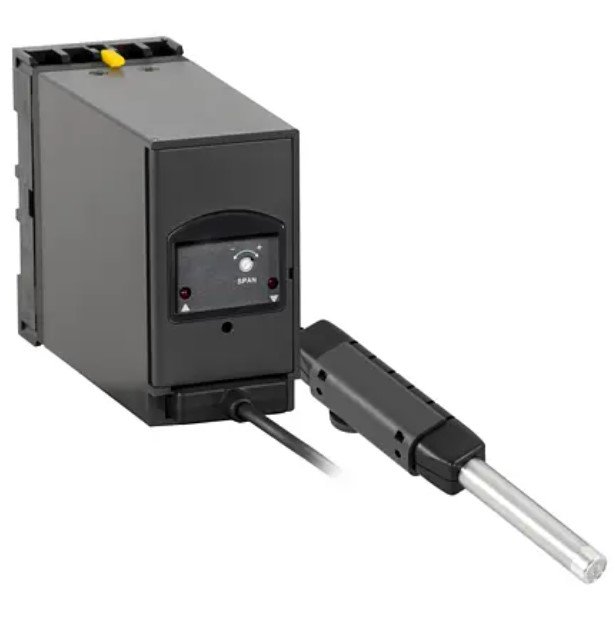

PCE-SLT-TRM is a class II (type 2) sound level, sound pressure level (SPL), decibel (dB) or noise meter with audible or visual alarm output capability. PCE-SLT-TRM is used for long-term, continuous monitoring of occupational noise exposure limits in industrial environments such as foundries, factories and manufacturing production floors. The measuring device consists of a wall-mountable acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter.
Highlights
- Measuring range: 30 ... 130 dB in 3 ranges
- Resolution: 0.1 dB
- Accuracy: ± 1.5 dB
- IP 54
Specification
| Sound level | |
| Measuring range | 30 ... 80 dB |
| Resolution | 0,1 dB |
| Accuracy | ±1.5 dB |
| Sound level | |
| Measuring range | 50 ... 100 dB |
| Resolution | 0,1 dB |
| Accuracy | ±1.5 dB |
| Sound level | |
| Measuring range | 80 ... 130 dB |
| Resolution | 0,1 dB |
| Accuracy | ±1.5 dB |
| General technical data | |
| Outputs | 4 ... 20 mA |
| Cable length | 1,5 m |
| Connections | 1/2 inch microphone |
| Frequency weighting | A |
| Microphone type | Electret capacitor |
| Standard(s) | IEC 61672-1 (Class II) |
| Housing | ABS (acrylonitrile-butadiene-styrene copolymers) |
| Calibration | adjustable via a grub screw |
| Dimensions | Sensor: L 170 x W 26 x H 26 mm |
| Weights | Sensor: 143 g |
| Protection class (device) | IP54, IP60 |
| Power supply | Transmitter: 90 … 260V AC (max. 1.5 A) Digital display: 90 ... 260V AC / 50 ... 60 Hz |
| Operating conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Storage conditions | 0 ... 50 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 125 x 97 x 50 mm |
| Weight | 315 g |
Delivery Scope
1 x Sound Level Meter / Noise Level Meter PCE-SLT-TRM (consisting of 1 x acoustic sensor on a 1.5 m / 4.92' long cable and a transmitter)
1 x Wall-mounting bracket for sensor
1 x User manual
