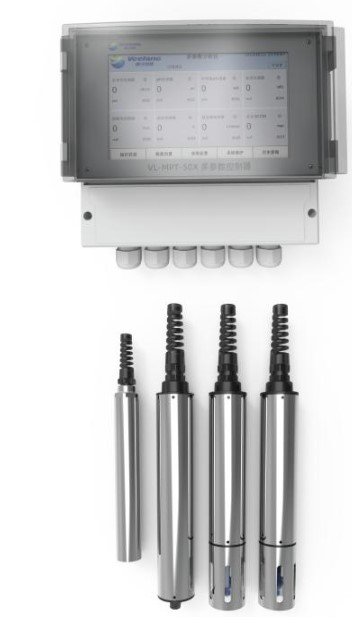

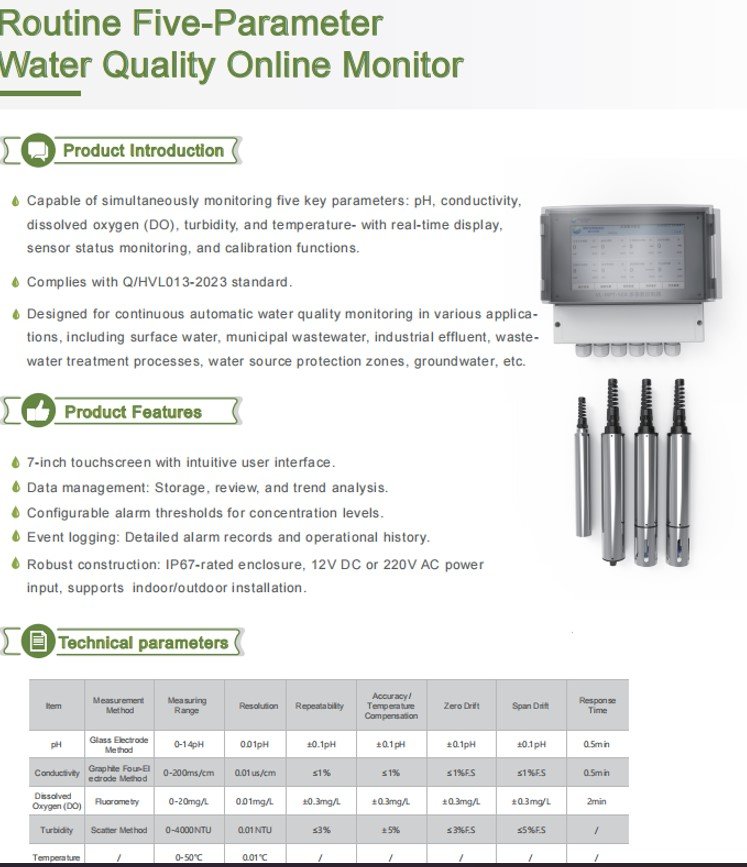

VEE001-5 PARAMETERS WATER QUALITY ONLINE MONITOR(PH/SC/DO/SS/TEMP.) VEE001 Routine Five-Parameter Water Quality Online Monitor
Product Introduction:
- Capable of simultaneously monitoring five key parameters: pH, conductivity, dissolved oxygen (DO), turbidity, and temperature- with real-time display, sensor status monitoring, and calibration functions.
- Complies with Q/HVL013-2023
- Designed for continuous automatic water quality monitoring in various applications, including surface water, municipal wastewater, industrial effluent, wastewater treatment processes, water source protection zones, groundwater,
Product Features:
- 7-inch touchscreen with intuitive user
- Data management: Storage, review, and trend
- Configurable alarm thresholds for concentration
- Event logging: Detailed alarm records and operational
- Robust construction: IP67-rated enclosure, 12V DC or 220V AC power input, supports indoor/outdoor
Technical parameters:
|
Item |
pH |
Conductivity |
Dissolved Oxygen (DO) |
Turbidity |
Temperature |
|
Measurement Method |
Glass Electrode Method |
Graphite Four-Electrode Method |
Fluorometry |
Scatter Method |
/ |
|
Measuring Range |
0-14pH |
0-200000us/cm |
0-20mg/L |
0-4000NTU |
0-50℃ |
|
Resolution |
0.01pH |
0.01us/cm |
0.01mg/L |
0.01NTU |
0.01℃ |
|
Repeatability |
±0.1pH |
≤1% |
±0.3mg/L |
≤3% |
/ |
|
Accuracy / Temperature Compensation |
±0.1pH |
≤1% |
±0.3mg/L |
±5% |
/ |
|
Zero Drift |
±0.1pH |
≤1%FS |
±0.3mg/L |
≤3%FS |
/ |
|
Span Drift |
±0.1pH |
≤1%FS |
±0.3mg/L |
≤5%F.S |
/ |
|
Response Time |
0.5min |
0.5min |
2min |
/ |
/ |
