- Tests lead acid (VLA and VRLA), NiCD, and lithium-ion
- Measures impedance on cells up to 200 V
- Supports battery discharge testing
- Measures DC voltages up to 1000 V
- Measures AC voltages up to 600 V
- Touch screen set-up and trending
- USB and micro-SD card
- Measures AC and DC current

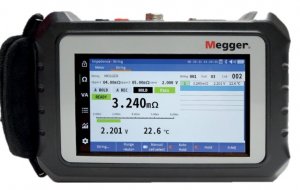

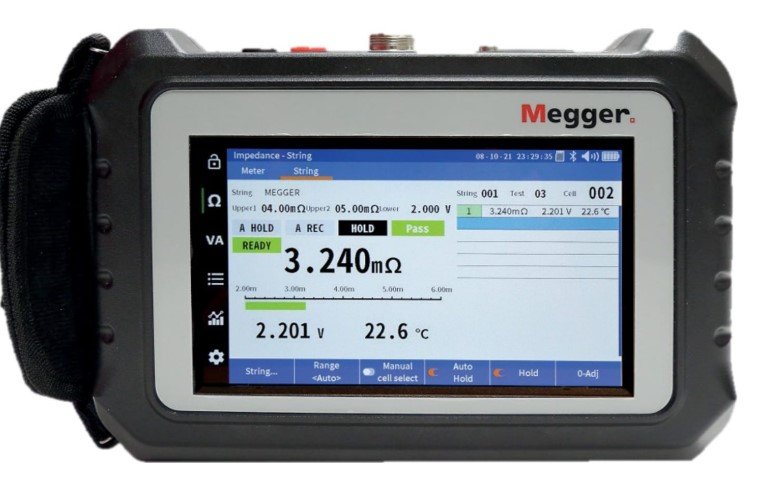

Battery Tester (lead acid (VLA and VRLA), NiCD, and Lithium-ion)
The BITE5 is a battery tester that will test lead acid batteries, NiCD batteries as well as lithium-ion batteries. The BITE5 will measure and record battery voltage, impedance, and temperature. The BITE5 also supports discharge testing. It will measure the voltage and current throughout the discharge cycle. The BITE5 can also measure the impedance and temperature throughout the discharge cycle.
Battery impedance testing
The BITE5 will measure cell impedance, cell voltage, and temperature. The recorded data can be trended on the unit’s touch screen. View the trended data of each test or trend the data of each cell. Set pass, warning, and fail limits for voltage and impedance. Record the ripple voltage, ripple current, and float current and transfer the recorded data via USB or via an SD card to the PowerDB software, then create custom reports and automated analysis.
Battery discharge testing
The BITE5 will record voltage, DC current, impedance, and temperature of each cell throughout the entire discharge test. Measure the average impedance at the end of the commissioning test and use this as a limit for future impedance tests. Trend the recorded data on the BITE5 touch screen and view the trended data of each test or trend the discharge of each cell. Transfer the recorded data via USB or via an SD card to the PowerDB software, then create custom reports.
Solar systems
Measure and record combiner DC voltages. Measure the input and output of inverters. Test the lithium-ion batteries.
Create string configurations
Impedance testing: measure cell impedance voltage and temperature
Discharge Testing: measure cell impedance, voltage, and temperature
View individual cell data
View String Data
Measure currents (DC/AC) and ripple; Measure voltages up to 1000 V DC and 600 V AC
Manuals/Guides
Spec Sheets- Megger BITE5 Data Sheet
- A novel method of establishing an ohmic limit for your batteries
Tech Specs
Battery Testing/Battery Impedance Tester Template
Max Battery Capacity 5.4 AH Max Total Voltage 7.4 V Min Impedance 3 m Ohms Max Impedance 300 Ohms (300000 m Ohms) Imp Resolution 100 m Ohms (100000 u Ohms) Min Operating Temp 0 F Max Operating Temp 50 F Test Equipment General Attributes
Safety Approval CE Interfaces I/O Other Storage SD Card IP Rating IP54 Product Weight 1.98 LBS Product Height 9.45 IN Product Length 6.30 IN Product Width 2.56 IN Battery Type Li-ion Power Supply Voltage Battery Powered
