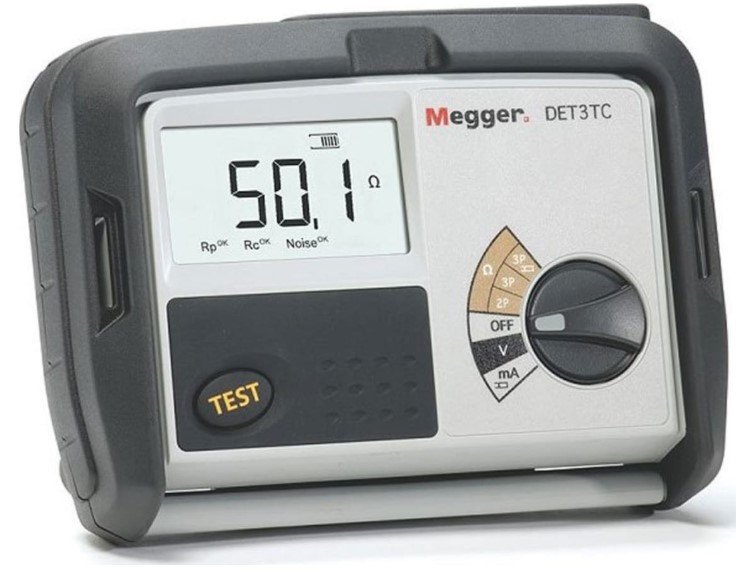

DET3TC Digital Earth Tester 2 And 3 terminal earth tester, with Hard Case and, Stake and Wire Kit, ART compatible
- IP54 rated
- 2 and 3 point testing
- Selectable 25 V or 50 V output
- Complete with lead and stake kit
- Simple one button operation
- Hardwearing carry case
- Delivered with calibration certificate
- Attached Rod Technique (ART)
Digital Three Pole Earth Testing Kit with ART
The new ground testing instrument family from Megger offers a unique solution to your ground rod testing needs. The complete kit of instrument, test leads, stakes and batteries are delivered in a tough polypropylene carry case - everything you need to start testing in one kit.
The ground tester is rated to IP54 making it truly an outdoor instrument. The ground tester has been designed to be easy to use - a large selector switch makes selection of 2 and 3 pole test easy with gloved hands - and the design
makes the fitting of shorting links to perform 2 pole tests a thing of the past. A large, clear, easy to read Analog display and thumb sized test button again makes the instrument particularly suited to the outdoor conditions of ground testing.
In addition to this ease of use, the ground tester also allows you to check the connection and condition of the P and C spike, indicating the status on the instrument. The instrument also includes a voltmeter to allow you to measure the ground voltage. The ground tester can measure resistance from 0.01 ½ through to 2000 ½ and earth voltages up to 100 V. To allow testing in noisy environments the instrument is capable of rejecting noise of up to 40 V peak to peak.
The Megger Analog ground tester is powered by eight AA batteries which are widely available and also give excellent testing time - the status of these batteries is indicated on the Analog display by selecting the function on the selector switch - allowing yo to decide when to change the batteries,
before they expire.
The Megger ground testers are designed to meet stringent safety standards and are rated CAT IV 100 V.
Ground testing using the ART method is more convenient and reduces testing time. Model DET3TC includes the additional testing capability called the ART (Attached Rod Technique) method. A nagging problem with traditional ground testing has been the requirement to disconnect the utility connection. Using the ART method you can reliably measure a grounding electrode while still connected and prove it!
In The Box
- Hard carry case
- Replacement 3-wire lead set
(15m red wire, 10m yellow wire, 4m green wire) - 6220-805 - Ground test stakes (x2) (200mm, 8mm dia) - 6220-804
- Factory (non-NIST) Calibration Certificate
Manuals/Guides
Brochures
- Megger Ground Resistance Test Equipment - Catalog
- Megger DET3TC User Manual
- Megger DET Series User Manual
- Guide to Earth Resistance Testing
- Getting Started with a Ground Test
- Data Sheet
- DET3 Series Data Sheet
- The Art of Ground Testing
- Attached Rod Technique
Manufacturer Specs
| Ingress protection | IP54 |
| C spike check | Automatic |
| P spike check | Automatic |
| Noise check | Automatic |
| Noise rejection | 40 V pk to pk |
| 2-wire test | Yes |
| 3-wire test | Yes |
| No disconnect testing (ART) | Yes, with optional ICLAMP |
| Earth current range with ICLAMP | 0.5 mA to 19.9 A |
| Resistance range | 0.01 to 2000Ω |
| Resistance Accuracy | 2% ±3 digits |
| Earth voltage range | 0 - 100 V a.c. |
| Earth voltage accuracy | 2% ±2 V |
| Display | LCD |
| Battery type | 8 off AA cells |
| Operating temperature range | -15 to +55ºC |
| Storage temperature range | -40 to +70ºC |
| Safety | EN61010-1 CAT IV 100 V |
| Dimensions | 203 x 148 x 78 mm (8 x 5.7 x 3.2 inches) |
| Weight | 1 kg |
Tech Specs
Ground Testers/3 Pole / 4 Pole Ground Testers Template |
|
|---|---|
| Type | 3 Pole |
| Display (3 Pole Testers) | Digital |
| Ground Resistance Range | 2000 Ohms (2 K Ohms) |
| Operating Frequency | 128 Hz |
| Accuracy | 2% full scale |
| Measuring Current | 450 uA (0.45 mA) |
| Measuring Voltage | 50 V |
| Soil Resistivity | No |
| Stakeless Capability | No |
| CAT Rating | IV |
| Optional Ground Kit Included | No |
| Auto Ranging | No |
Test Equipment General Attributes |
|
| Unique Features | User selectable test voltage ensures that the units can be used in agricultural environments. Rugged, weatherproof case to IP54 makes the units truly outdoor instruments. Large, clear LCD that can be read in ambient lighting. Noise rejection to 40 V pk to pk allows accurate testing in noisy environments. Accuracy of 2% of reading enhances reliability of measurements. Clamp model for Attached Rod Technique allows the testing of the rod without the need for disconnection. |
| Warranty | 2 YEARS |
| IP Rating | IP54 |
| Product Weight | 2.2 LBS |
| Product Height | 3.2 IN |
| Product Length | 8 IN |
| Product Width | 5.7 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.39.0100 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United Kingdom |
