- SafeCheck 8 Bench-mounted automatic safety tester
- Earth / Ground Bond Test
- DC Insulation Resistance
- Leakage Test
- IEC Cord Test
- Power / Run Test
- Storage of test results
- Predefined and custom test sequences
- Link to a printer and scanner
Earth / Ground Bond Test
DC Insulation Resistance
Leakage Test
IEC Cord Test
Power / Run Test
Storage of test results
This tester is ideal for use in the hire and service industry.

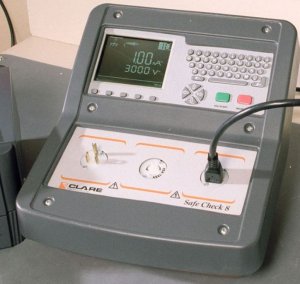

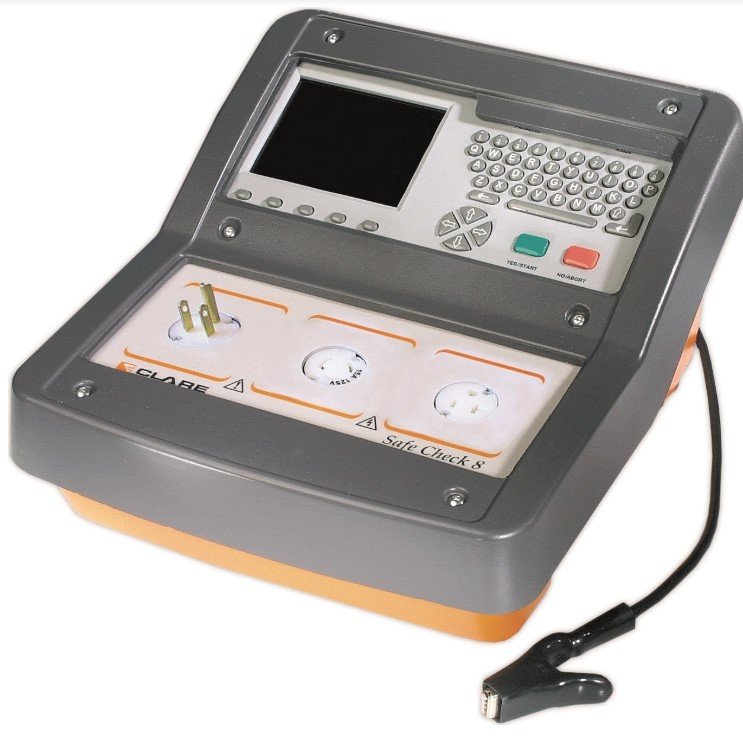

SafeCheck 8 is a bench-mounted instrument for those who need a comprehensive tester with memory which can provide result traceability.
Operators can select one of the following tests from its clear user interface: Class I, Class II, IEC Extension Power Cord.
Equipment and tools are automatically sequenced through the test routine. The results are recorded, and information is displayed on a large clear LCD screen.
In order to eliminate potential data entry errors and to speed up the test process, the tester can also be used with a barcode reader which scans in the equipment’s ID number.
SafeCheck 8 is outstanding value for money and helps you meet your safety obligations while you improving productivity.
Key Features
- Class I, Class II and IEC power cord tests
- Bench-mounted and easy to use
- Storage of test results
- Link to a printer and scanner for fast and traceable testing
Ideal For
- Hire and rental sector
- Service engineers
Electrical Test Functions
- Earth/Ground Bond Testing
- AC Dielectric Strength (flash/hipot)
- Insulation Resistance
- Earth/Ground leakage
- Touch Leakage
In The Box
- HT Probe
- 3 pin guard link connector
- Earth bond clip
- Mains lead
- Instruction Manual
Manuals/Guides
Brochures
- Seaward Avoid Nasty Shocks Electrical Safety for Industry Brochure
Manuals
- Seaward SafeCheck 8 Tool Tester Operating Manual
Spec Sheets
- Seaward SafeCheck 8 Bench Mounted Comprehensive Tester for Service and Rental Industry Data Sheet
Manufacturer Specs
|
Flash/Hipot Test (Class I) |
|
|
Test Voltage Class l |
1.25kV AC |
|
Display Range |
0.1 - 10 mA AC |
|
Resolution |
0.01mA |
|
Accuracy |
+/- 5% +/- 2 digits |
|
Pass Levels |
selectable up to 10mA |
|
Flash/Hipot Test (Class II) |
|
|
Test Voltage Class ll |
2.5 kV AC |
|
Display Range |
0.1 - 10 mA AC. |
|
Resolution |
0.01mA |
|
Accuracy |
+/- 5% +/- 2 digits |
|
Pass Levels |
selectable up to 10mA |
|
DC Insulation Test |
|
|
Test Voltage |
500V |
|
Display Range |
0.1 - 99.99MΩ |
|
Accuracy |
+/- 5% +/- 2 digits (up to 19.99MΩ) |
|
Earth/Ground Bond Test |
|
|
Test Voltage |
6V AC (open circuit) |
|
Test Current |
25A, 10A, 4A, 100mA AC into short circuit |
|
Range |
0.04Ω - 20Ω |
|
Resolution |
1mΩ |
|
Accuracy |
+/- 5% +/- 2 digits |
|
Pass Levels |
user selectable |
|
Substitute Leakage (Short to Case Test) |
|
|
Test Voltage |
40V AC o/c |
|
Display Range |
0.1 - 20.0mA AC |
|
Resolution |
0.01mA |
|
Accuracy |
+/- 10% +/- 2 digits (1.00 - 20mA) |
|
Pass Levels |
selectable up to 15mA |
|
Earth Leakage |
|
|
Test Voltage |
Mains Supply |
|
Display Range |
0.1 - 20.0mA AC |
|
Resolution |
0.01mA |
|
Accuracy |
+/- 10% +/- 2 digits (1.00 - 20mA) |
|
Pass Levels |
selectable up to 10mA |
|
Power / Run / Load Tests |
|
|
Resolution |
0.01kVA |
|
Measured Load |
0 - 4kVA |
|
Accuracy |
+/- 10 of reading, +/- 2 digits |
|
IEC Power Cord Test |
|
|
Test Voltage |
40V AC |
|
Detects |
Good, Open, Short, Reversed |
|
Mechanical |
|
|
Dimensions |
450W x 410H x 155D mm |
|
Weight |
Approx 8.8kg |
|
Electrical |
|
|
Supply Voltage |
Selectable 115V / 230V 50 or 60Hz |
|
Operating Temperature |
0°C to +40°C |
|
Storage Temperature |
-10°C to +50°C |
|
EN50191 |
Compliant when used with appropriate accessories |
Tech Specs
|
Safety Testing / Surge Testing/Ground Bond Testers Template |
|
|
Maximum Test Current |
10 A, 25 A |
|
Resolution AC Current |
0.01 mA (0.00001 A) |
|
Display Type |
Digital |
|
Safety Testing / Surge Testing/Hipot Tester Template |
|
|
Test Type Hipot |
AC |
|
Max AC Test Voltage |
2.5 kV |
|
Insulation Resistance Test |
Yes |
|
IR Test Voltage |
500 V |
|
Connection Type |
Probe |
|
Test Equipment General Attributes |
|
|
Safety Approval |
CE |
|
Product Weight |
8.8 KILOS (19.40 LBS) |
|
Product Height |
410 MM (16.14 IN) |
|
Product Width |
450 MM (17.72 IN) |
|
HTS/Schedule B Number |
9030.33.3400 |
|
ECCN Number |
EAR99 |
|
Country of Origin |
United Kingdom |
|
Other Information |
Depth:: 155 mm |
