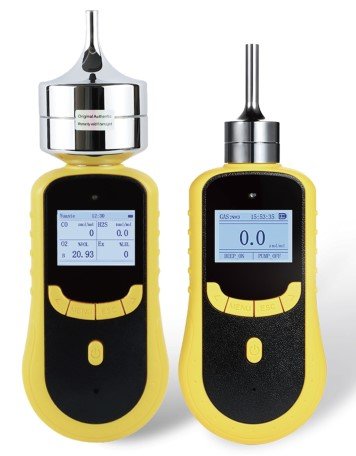

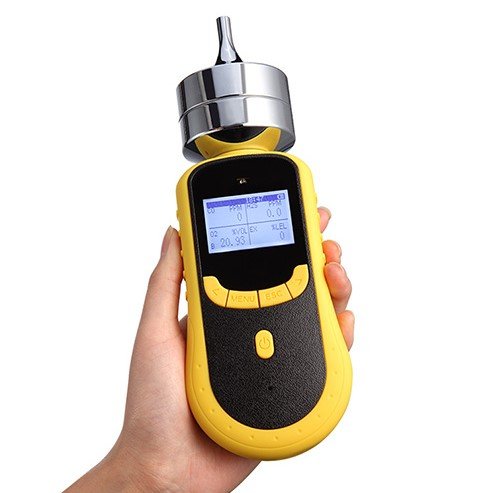

SYT005 series 4 in 1 gas detector is a kind of fast response and high accuracy multi gas measurement device. With internal sampling pump, fast sampling speed, and available for measuring 4 gases at the same time, including 4 toxic gases and CO2 gas. Special high intensity engineering plastics housing, suitable for different kinds of situation and environment.

1. Principle: Electrochemistry
2. Measure range: 0-1PPM
3. Resolution: Pls check with us
4. Alarm with sound, light and vibration, alarm ponit is settable
5. Large capacity of lithium polymer battery
6. Detect N2 gas concentration
7. Internal sampling pump, fast response and reliable
8. Chinese/English language
9. Working temperature: -20?-50?
10. Working humidity? 0-95%RH
11. Dimension: 205*75*32mm Weight: 300g
12. Packing: aluminum suitcase
13. With sampleing probe"

*Optional SYT009A01 Sampling probe with cooling system and filter, max resist 600c

Technical parameters
Gas Detected:
To be specified
To be specified
Detection Principle:
To be specified
Measure range:
To be specified
Resolution:
Precision:
≤±1-5%F.S except for special gases
Data logging
(Optional function)
100000 readings can be stored on device and
download through PC software
Response Time :
≤20S
≤±1%
Repeatability:
≤±1%（F.S/year）
Zero shift:
Operating language: Chinese/English
Temperature:
-20℃～50℃
Explosion-Proof:
E x i a IIC T4 Ga
Alarm mode:
Sound, light, vibration
Dimensions:
205*75*32mm
Recovery Time:
≤10S
Linearity error:
≤±1%
Display ：
LCD dot matrix display
Gas unit：
Units are switchable
Humidity：
0-95%RH
Degree of protection： IP66
Operating time：
100h（pump off）
Weight：
300g
