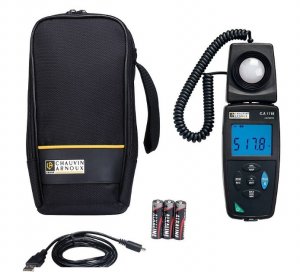

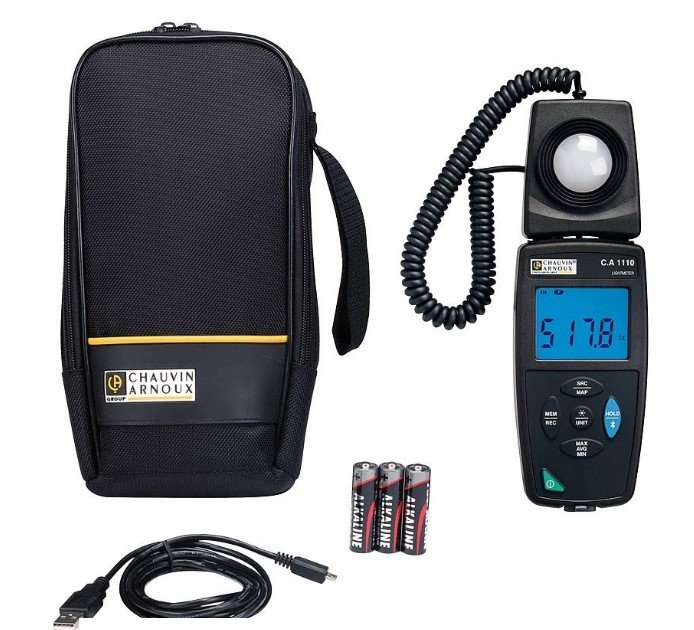

The Chauvin Arnoux CA1110 is a Datalogging Light Meter capable of measuring the illuminance of all light sources (LED, fluorescent, incandescent, etc.) up to 200,000 lux in compliance with Class C of the NF C 42-710 standard.

With the MAP function, you can produce a map of a surface or room in order to check that the illuminance is uniform.

The sensor head is magnetic enabling it to be fixed to the product for one-handed use or for easy transport, but it is also possible to use it remotely which helps avoid any mismeasurements from shading introduced by the operator.

The CA1110 also offers Min, Max, Average and Hold functions, as well as allowing spot or programmable recording.

Data Logger Transfer software is available for free download to view the recorded data, configure the CA1110, benefit from remote display and generate automatic reports.

Additional specifications:

• Measurement range: 0.1 lx to 200,000 lx (lux)

Measurement accuracy:

• ± 3% of the reading on incandescent sources (default)
• ± 6% of the reading on LEDs (3,000 K to 6,000 K)
• ± 9% of the reading on fluorescent sources

• Min, Max, Average, MAP and Hold functions, lx or fc / Backlighting
• Capable of recording up to 1 million points
• USB and Bluetooth interfaces
• IP50 rated

Dimensions and Weight:

• Case dimensions: 150 x 72 x 32 mm
• Sensor dimensions: 67 x 64 x 35 mm
• Weight: 345 g with batteries
