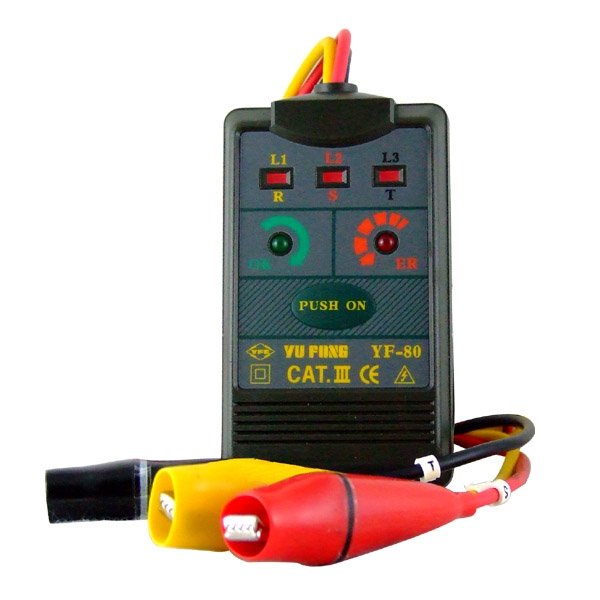

Tenmars YF-80 Phase Rotation Tester

Model No.: : YF-80
Product Description

• Detect the phase sequence (R-S-T) of 3-phase circuit
• Electronic circuit configuration allows more specific function display
• Automated detection for low-battery capacity

Phase rotation indication by both audio and indicator, checking if currents
of three different rating are in proper phase. Phase open-circuit detection
by indicator.

• Measuring range:
Frequency: 45-65HZ
Voltage: 50~500V (overload protection : 750V)
• Insulation voltage withstand protection: DC 6KV
ACCESSORIES
• User’s manual
• Carrying case
• 9V battery x 1pc
POWER SUPPLY
• Battery type: 9V NEDA 1604 IEC 6F22 JIS
006P x 1pc.
• Battery life: About 50 hours.
OPERATION CONDITION
• Operating temperature & humidity: 0°C~40°C, below 80% RH.
• Storage temperature & humidity: -10°C~60°C, below 70% RH.
DIMENSION
• Size: 105 x 62 x 24mm (L x W x H)
• Weight: About 206g (including battery)
