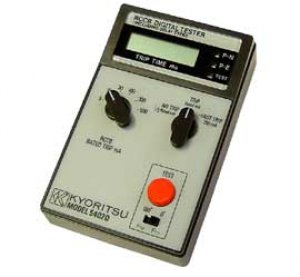

Two neon lamps give quick check for correct wiring.
•
Compact, lightweight and simple to operate.
•
Zero cross circuitry permits testing at 0 and 180 degree portion of sine wave. At these two tests minimum (best) and maximum (worst) trip times will be displayed.
Rated Tripping Current
5/10/30/100/300/500mA
Fault Condition Settings
× 1/2, × 1, Fast (250mA)
Trip Current Duration
2000ms, 40ms (Fast Trip)
Lowest Resolution
1ms
Trip Time Accuracy
|±2%rdg±3dgt
Operating Voltage
220/230/240V 50Hz/60Hz
Withstand Voltage
2200V AC for 1 minute
Dimensions
140(L) × 90(W) × 20(D)mm
Weight
350g approx.
Accessories
7019 (Test Leads) Carrying Case Instruction Manual
