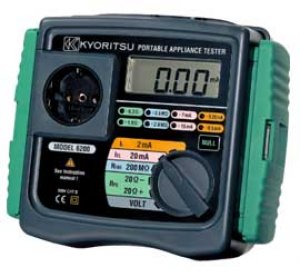

Kyoritsu 6202

The Model 6202 is a hand-held portable appliance tester, performing four functions to ensure the Safety of Class I, Class II and Class III 230V appliances. And also can measure the mains voltage.
Readings are displayed on a large liquid crystal display (LCD) below which are eight LEDs which unambiguously display a pass or fail indication for threshold values dictated by DIN VDE 0701/0702

This instrument is suitable for performing tests as required by the following standards.
DIN VDE 0701-1 (240):2000 Repairing, modification and testing of electrical equipment
DIN VDE 0702 : 2004 Periodic inspection for electrical equipment

RPE 20Ω+ / 20Ω- Protective Conductor Resistance Test
Measuring range 0 ~ 19.99Ω
Resolution of measurement 10mΩ
Short circuit current 200 ~ 250mA DC
Open circuit voltage ±5.0±0.4V DC
Accuracy ±2%rdg±3dgt
RINS 200MΩ Insulation Resistance
Measuring range 0 ~ 19.99 / 199.9MΩ (2ranges auto)
Resolution of measurement 10kΩ / 100kΩV
Rated voltage >500V DC (+50% / -0%)
Rated current >1mA
Short circuit current 14mA (max.)
Accuracy ±2%rdg±3dgt
IEL 20mA Equivalent Leakage Current
Measuring range 0 ~ 19.99mA
Resolution of measurement 0.01mA
Measuring voltage 30V AC
Internal resistance (RA Meter) 2kΩ
Accuracy ±2%rdg±3dgt
IL 2mA Contact Current
Measuring range 0 ~ 1.999mA
Resolution of measurement 0.001mA
Internal resistance (RA Meter) 2kΩ
Accuracy ±2%rdg±3dgt
VOLT AC Voltmeter
Measuring range 180 ~ 260V (50/60Hz)
Resolution of measurement 1V
Accuracy ±3%rdg±5dgt
I LINE Current Consumption (6202 only)
Measuring range 0 ~ 16A AC
Resolution of measurement 0.01A
Accuracy ±2%rdg±3dgt
Supply voltage 230V±10%
Frequency 50/60Hz±1%
Applicable standards IEC 61010-1 CAT.III 300V Pollution Degree2
IEC 60950, IEC 61326-1 (EMC)
Dimensions 185 (L) × 167 (W) × 89 (D) mm
Weight 1kg
Accessories 7125 (Power cord [EU])
7129A (Test leads with alligator clip)
7161A (Flat test prod [black])
9147 (Cord case)
9121 (Shoulder strap)
Instruction manual
Optional 7121B (Distribution board test leads)
