Environmental Meter PCE-RCM 7

Environmental Meter / PM1, PM2.5, PM10 / Measurement of CO2, formaldehyde, TVOC, temperature and room humidity / WiFi connection / Data retrievable via app / USB-C interface

A modern Environmental Meter is indispensable for continuously monitoring the air indoors and drawing attention to pollutants or poor air conditions in good time. Especially in living spaces, offices, schools, nurseries or workshops, clean air makes a decisive contribution to health and well-being. An air quality detector also helps to permanently monitor indoor air quality in public facilities or production halls and to recognize potential hazards at an early stage.

Our innovative Environmental Meter records all the important parameters that are crucial for healthy indoor air. It measures TVOC (volatile organic compounds), PM1, PM2.5 and PM10 particulate matter, as well as temperature, humidity and CO₂ content. This gives you a comprehensive picture of the air composition and allows you to take targeted measures to improve indoor air quality.

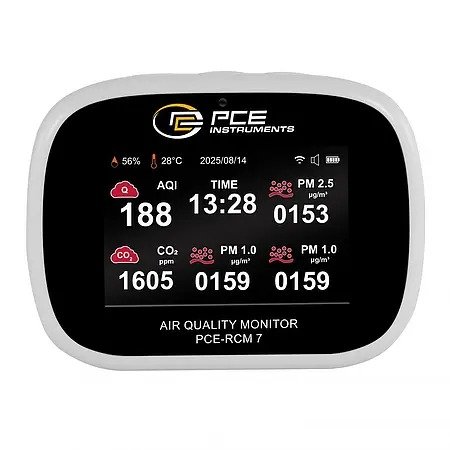

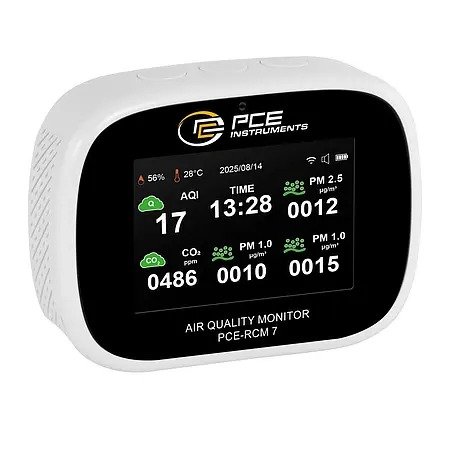

The Environmental Meter has a clear 3.3-inch LC display that calculates and displays the air quality index (AQI) in addition to the current measured values. It also offers a clock and date display as well as automatic brightness adjustment for optimum readability. Thanks to its modern design, the device can be flexibly wall-mounted or free-standing. The integrated battery can be conveniently charged via USB-C cable.

A particularly practical feature is the traffic light display, which uses the colors green, yellow and red to provide an immediate warning when limit values are exceeded. In addition, a customizable acoustic alarm ensures safety. All settings can be made via the associated app and the measurement data can be transmitted in real time via WiFi and stored long-term. This allows you to keep an eye on your air values at all times and reliably analyze developments.

An Environmental Meter is ideal for families, businesses, educational institutions, nurseries, craft businesses and public facilities - wherever healthy air is crucial. With its compact size, modern design and versatile functionality, it is a valuable tool for reliably monitoring air quality and protecting health.

Highlights

- LCD display 3.3 inch
- Calculation of the air quality index (AQI)
- Clock and date display
- Rechargeable battery via USB-C cable
- Automatic brightness adjustment
- Traffic light display when limit values are exceeded
- Acoustic alarm
- App with live data transmission
- WiFi connection
- Standby mode
- Wall mounting possible

Specification

CO²
Measurement range up to   400 ... 5000 ppm
Resolution   1 ppm
Accuracy   ±(50 ppm +5 % of Rd)

Relative humidity
Measurement range up to   0 ... 99 %
Resolution   1 %
Accuracy   ±5 % of Rd

Formaldehyde
Measurement range up to   0 ... 1,999 mg/m³
Resolution   0,001 mg/m³
Accuracy   ±30% v.Mw.

Particles
Measurement range up to   0 ... 100 µg/m³
Resolution   1 µg/m³
Accuracy   ±10 µg/m³
Measuring channel sizes   1.0, 2.5, 10

Particles
Measurement range up to   100 ... 500 µg/m³
Resolution   1 µg/m³
Accuracy   ±10% v.Mw.
Measuring channel sizes   1.0, 2.5, 10

Particles
Measurement range up to   500 ... 1000 µg/m³
Resolution   1 µg/m³
Accuracy   ±10% v.Mw.
Measuring channel sizes   1.0, 2.5, 10

TVOC
Measurement range up to   0 ... 9,999 mg/m³
Resolution   0,001 mg/m³
Accuracy   ±30% v.Mw.

Temperature
Measurement range up to   0 ... 50 °C
Resolution   1 °C
Accuracy   ±1 °C

Temperature
Measurement range up to   32 ... 122 °F
Resolution   1,8 °F
Accuracy   ±1.8 °F

General technical data
Display type   LCD with backlight
Display size   3,3 Inch
Interface   USB-C, WiFi
Operating time   7 h
Alarm   Acoustic
Menu language   English, English (GB)
Protection class (device)   IP20
Power supply   5 V
(Rechargeable) battery   1 x 3,7 V internal , Lithium-ion battery
Capacity   3000 mAh
Operating conditions   0 ... 50 °C , 0 ... 99 % RH
Storage conditions   0 ... 50 °C , 0 ... 99 % RH
Dimensions ( L x W x H )   88 x 118 x 35 mm
Weight   198 g
