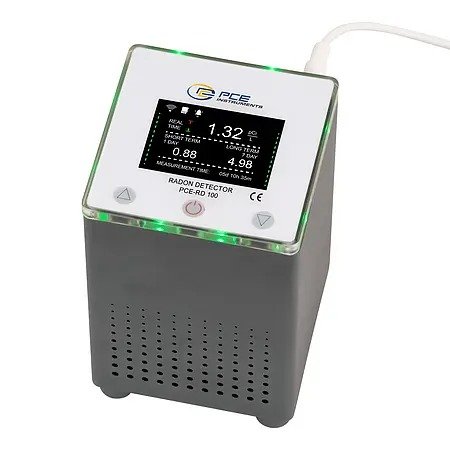

Gas Detection Instrument PCE-RD 100

Gas Detection Instrument for indoor areas / real-time data display / WiFi interface / 128 MB micro SD card memory / adjustable limit values

The Gas Detection Instrument offers precise monitoring of the radon concentration within the range of 0.1 ... 99.9 pCi/L with an accuracy of < 10% @ 10 pCi/L and a sensitivity of 30 CPH at 1 pCi/L. Our Gas Detection Instrument discovers radon at an early stage, minimises health risks and enables continuous real-time monitoring. Current measurement data is collected every 10 minutes and averages are calculated for 1 hour, 1 day and 7 days. The first reliable data output of the measured values takes less than 1 hour.

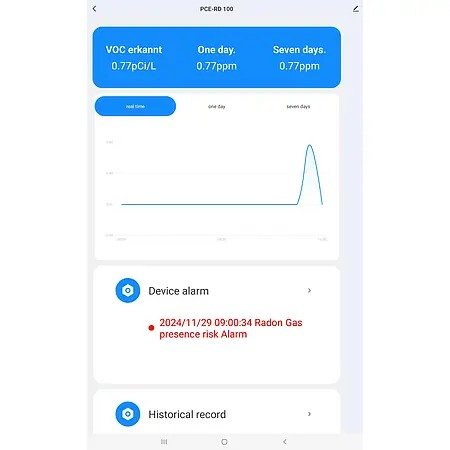

An integrated audible alarm and a coloured LED screen warn of increased radon levels. For radon values below 2.7 pCi/L, the display lights up in green. At values between 2.7 and 4 pCi/L, the display lights up in yellow with an audible alarm. If the value exceeds 4 pCi/L, the display lights up in red and a notification is sent to the smartphone. The threshold values for the alarm can also be set individually so that the user can adjust the threshold values to suit their own needs. Thanks to the WiFi connection, the measured values can be conveniently monitored and the Gas Detection Instrument can be controlled remotely via the app. A 128 MB memory card continuously saves up to 12 months of data, which can be easily transferred to a computer as a csv file. The 2.3 inch TFT colour display clearly shows all relevant data. The Gas Detector / Gas Detection Instrument is powered by a stable power supply and therefore offers reliable, continuous monitoring. Our Gas Detection Instrument is user-friendly, cost-effective and enables reliable monitoring of indoor radon concentrations.

Highlights

- sensor: pulsed ionisation chamber
- sensitivity: 30 CPH @ 1 pCi/L
- rteal-time data display
- data transfer to smartphone via WiFi
- data export to PC via memory card
- alarm: audible, visual
- green:* values below 2.7 pCi/L
- yellow:* values between 2.7 and 4 pCi/L (with audible alarm)
- red:* values above 4 pCi/L (incl. smartphone notification)
- TFT colour screen 2.4 inch

Specification

Radiation
Measurement range up to   0,1 ... 99,9 pCi/L
Resolution   0,01 pCi/L
Accuracy   <10 % @ 10 pCi/L

General technical data
Measuring functions (additional information)   Measured values: every 10 minutes, 1 day, 7 days
Display type   TFT colour display
Display size   2,3 Inch
Storage medium   Micro SD card
Storage capacity   128 MB
Memory information   Saves data continuously every 10 minutes for up to 12 months, transferable to PC
Interface   WiFi
Alarm   optical, Acoustic
Sensors   Pulsed ionisation chamber
Sensitivity   30 CPH @ 1 pCi/L
0.5 CPM @ 1 pCi/L
Menu language   English, English (GB)
Protection class (device)   IP20
Power supply   100 ... 240V AC | 50/60 Hz
Connector type   Euro plug
Operating conditions   1 ... 50 °C , 0 ... 80 % RH
Storage conditions   1 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )   82 x 82 x 125 mm
Weight   394 g
