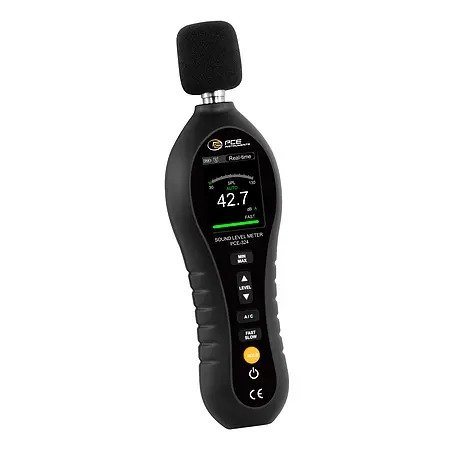

Sound Meter PCE-324

Sound Meter / LC colour display with backlight / numerical values and traffic light display / ergonomic shape / accuracy class 2 / battery operation

The Sound Meter offers a wide measurement range of 30 to 130 dB (dBA) and 35 to 130 dB (dBC), making it suitable for accurate measurements in various acoustic environments. The accuracy of the device is ±1.5 dB at 94 dB @ 1 kHz. Equipped with functions for A and C frequency weighting and both fast and slow time weighting, our Sound Meter is versatile and adaptable to different requirements.

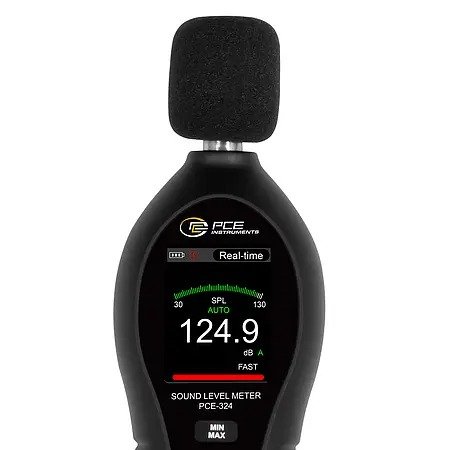

The 2-inch LC colour display provides a clear and easy-to-read display of the measured values in numerical form. In addition, the device has a scale that enables a quick visual assessment of the sound level. With a sampling rate of 2 x per second, the Sound Meter records acoustic changes almost in real time and is therefore particularly suitable for monitoring sound levels in dynamic environments.

The Sound Meter is equipped with functions such as MIN, MAX and HOLD. Thanks to the automatic power off function, the device is energy-efficient and saves battery power, which extends the operating time. The Sound Meter complies with IEC 61672-1 (class II). It is powered by 4 AAA batteries and is therefore mobile and flexible in use. Whether in residential areas, offices, production facilities or other environments - this Sound Meter is versatile and delivers precise results in a wide variety of acoustic scenarios.

Highlights

- automatic / manual measurement range selection
- fast and slow time weighting
- frequency weighting A and C
- numerical values and traffic light display
- measuring functions: MIN, MAX, HOLD
- automatic power off
- accuracy class 2

Specification

Sound level
Measurement range up to   30 ... 130 dBA
Resolution   0,1 dB
Accuracy   ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level
Measurement range up to   35 ... 130 dBC
Resolution   0,1 dB
Accuracy   ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level
Measurement range up to   30 ... 80 dB
Resolution   0,1 dB
Accuracy   ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level
Measurement range up to   60 ... 110 dB
Resolution   0,1 dB
Accuracy   ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level
Measurement range up to   80 ... 130 dB
Resolution   0,1 dB
Accuracy   ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

General technical data
Measuring functions   MIN, MAX, HOLD
Time weighting   fast (125 ms), slow (1 s)
Frequency weighting   A, C
Display type   LC colour display with backlight
Display size   2 Inch
Measuring rate   2 x per second

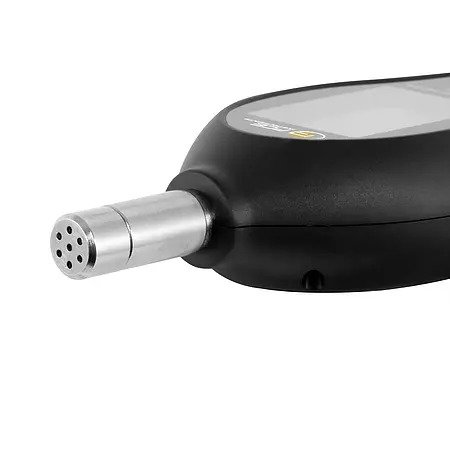

Microphone type   Condenser microphone
Standard(s)   IEC 61672-1 (Class II)
Automatic power-off   20 min
Automatic power-off can be deactivated   Yes

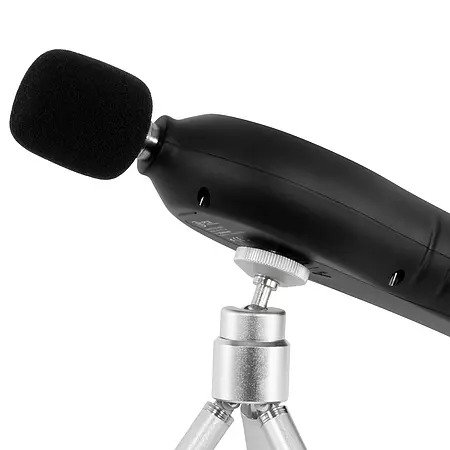

Tripod thread   1/4 inch
Menu language   English, English (GB)
Protection class (device)   IP20
Weight   123 g
Operating conditions   0 ... 40 °C , 10 ... 80 % RH
Storage conditions   -10 ... 60 °C , 10 ... 70 % RH

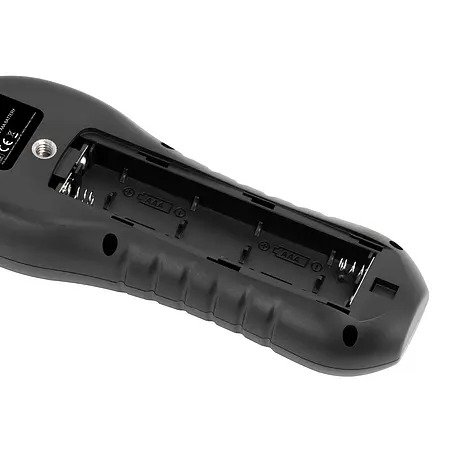

(Rechargeable) battery   4 x 1,5 V AAA battery , Alkali-manganese
Capacity   1200 mAh
Dimensions ( L x W x H )   210 x 64 x 32 mm
