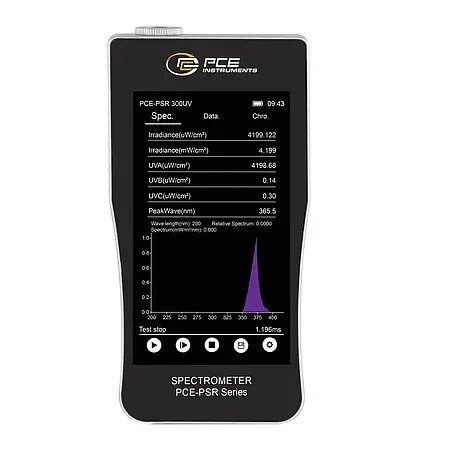

Spectrophotometer PCE-PSR 300UV

Category: Spectrophotometer
Spectrophotometer / UV radiation intensity / colour rendering index (CRI) / colour coordinates and spectral distributions / illuminance / data as csv. and pdf. file / USB-C interface / touch screen

The UV Spectrophotometer is a high-precision meter for analysing UV-A, UV-B and UV-C radiation and offers exceptional measuring accuracy and versatility. With a measurement range of 0.1 to 500,000 µW/cm² and an accuracy of ±0.01 µW/cm², it is ideal for demanding applications in photobiology, material testing and UV protection analysis. The spectral resolution is ±0.2 nm, while the reproducibility is ±0.5 nm, which guarantees constant and reliable data acquisition.

In addition to precise UV radiation measurements, the device captures colour coordinates and spectral distributions with a chromaticity coordinate accuracy of ±0.005 (Δx, Δy). The Spectrophotometer is not only technically powerful but also designed to be user-friendly. The capacitive 5-inch IPS touch screen offers intuitive operation and ensures that all measurement data is clearly displayed, even in difficult lighting conditions. With the integrated rechargeable 4000 mAh lithium-ion battery, the Spectrophotometer guarantees long operating times so that even extensive measurements can be carried out without any problems. The internal memory of 8 GB offers sufficient space for a large amount of measurement data, which can be saved directly to the device.

PC software is available for seamless data processing and advanced analysis functions. This allows measured values to be easily transferred, analysed and archived. This Spectrophotometer combines precision, versatility and ease of use in a compact device, making it the ideal solution for professional applications in industry, research and education.

Highlights

- UV-A, UV-B and UV-C light
- spectral resolution: ± 0.2 nm
- reproducibility: ± 0.5 nm
- wavelength: 200 ... 400 nm
- accuracy of the chromaticity coordinate (Δx, Δy): ±0.005
- capacitive 5-inch IPS touch screen
- rechargeable 4000 mAh lithium-ion battery
- 8 GB internal memory
- PC software

Specification

Radiation
Measurement range up to   0,1 ... 500000 µW/cm²
Resolution   0,001 µW/cm²
Accuracy   0.01 µW/cm²

General technical data
Display type   LCD touchscreen
Display size   5 Inch
Display resolution   480 x 854
Storage medium   Internal memory
Storage capacity   8 GB
Memory capacity (additional information)   approx. 5000 data records
Interface   USB, BLE switch
Operating time   20 h
Automatic power-off from...to   2 ... 60 min.
Automatic power-off can be deactivated   Yes
Reproducibility   ±0.5 nm
Colour spaces   CIE1931, CIE1960, CIE1976, SDCM, CRI1, CRI2, TM30 (Distribution of Fidelity), TM30 (Change Distribution), TM30 (Rg/Rf)
Wavelength range   200 ... 400 Nm
Light parameters   Irradiance (µW/cm²), Irradiance (mW/cm²), UV hazard Ee (µW/cm²), UVA (µW/cm²), UVB (µW/cm²), UVC (µW/cm²), PeakWave (nm), HalfWidth (nm), Darksignal, Peak signal, IntegTime (ms), Transmittance (%)
Menu language   English, Chinese, English (GB)
Protection class (device)   IP56
Power supply   100 ... 240V AC | 50/60 Hz
Connector type   Euro plug

(Rechargeable) battery   1 x 3,7 V internal , Lithium-ion battery
Capacity   4000 mAh
Operating conditions   -10 ... 40 °C , 70 % RH
Storage conditions   -20 ... 45 °C , 70 % RH
Dimensions ( L x W x H )   160 x 82 x 22 mm
Weight   390 g
