Geiger Counter PCE-RAM 3

Category: Geiger Counter
Geiger Counter / measurement of gamma, beta and X-rays / adjustable alarm values / numerical and graphical display / min, max and average values

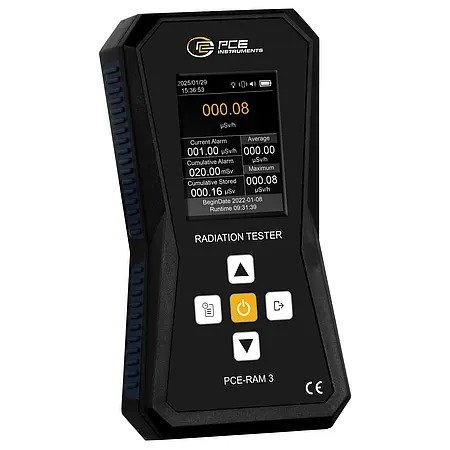

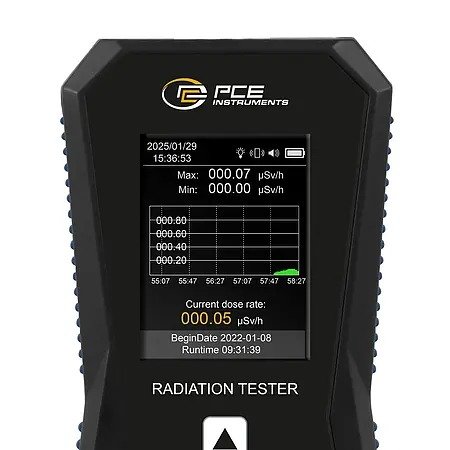

Our Geiger Counter is mainly used to measure gamma, beta and X-rays and uses a Geiger-Müller counter to measure the intensity of ionising radiation. The measuring range extends from 0 ... 10 mSv/h. The cumulative dose, average and maximum dose are shown on the larg 2.3 inch multifunctional display, while the real-time measurements are also shown graphically.

The device has two alarm modes: the radiation alarm (0 ... 100 µSv/h) and the cumulative radiation alarm (0 ... 100 mSv). Both alarms are equipped with different settings for visual, audible and vibrating warning signals. The energy range of the device is between 48 and 1500 keV. The radiation measuring device is equipped with a micro USB interface and a rechargeable lithium battery.

The Geiger Counter also displays the current battery level so that the user is always informed. The brightness of the display can be adjusted as required so that it is easier to read even in different lighting conditions. The date and time are also shown on the display.

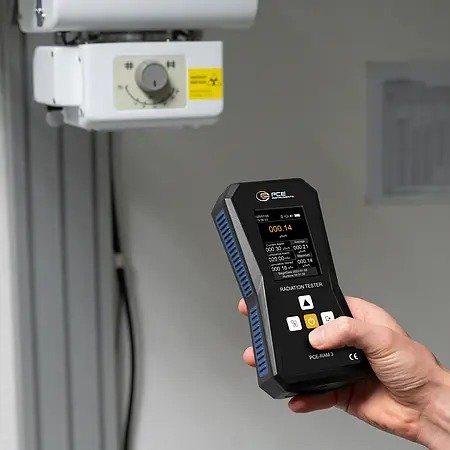

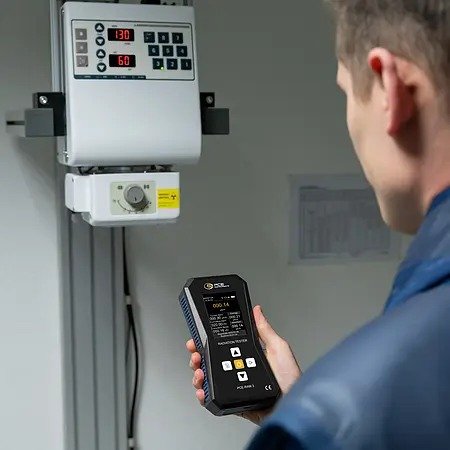

This Geiger Counter is ideal for applications in research, medicine, industry and environmental protection. It can be used in nuclear power stations, hospitals, laboratories, radiation monitoring and emergency scenarios. Furthermore, it is also useful for construction companies that are working with radioactive materials and in environmental monitoring to ensure that radiation exposure remains within safe limits.

Highlights

- real-time value, average value
- measuring functions: Min, Max
- sensitivity: 80 CPM/µSv (based on Co-60)
- radiation alarm adjustable
- adjustable cumulative radiation alarm
- cumulative dose display

Specification

Radiation
Measurement range up to   0 ... 10 mSv/h
Resolution   0,01 µSv/h
Accuracy   ±30 % (for 137 Cs)

Radiation
Measurement range up to   0 ... 500 mSv
Resolution   0,01 µSv
Accuracy   ±30 % (for 137 Cs)

General technical data
Measuring functions   MIN, MAX, Average value
Units   μSv/h, μGy/h, mR/h, cps, cpm
Energy range   48 ... 1500 keV
Display type   LCD with backlight
Display size   2,8 Inch

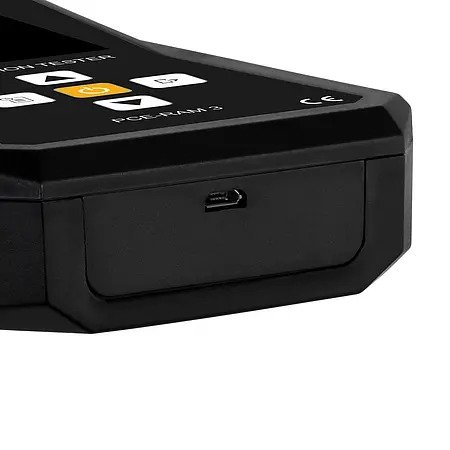

Interface   Micro-USB
Sensor   Geiger-Mueller counter tube
Alarm   optical, Acoustic, Vibration
Alarm modes   Radiation alarm: 0 ... 100 µSv/h
Cumulative radiation alarm: 0 ... 100 mSv
Sensitivity   80 CPM/µSv (related to Co-60)
Menu language   English, Chinese, English (GB), Russian, Japanese, Spanish, Portuguese, Korean
Protection class (device)   IP20
Power supply   5 V DC
(Rechargeable) battery   1 x 3,7 V JHCY703048 , Lithium polymer battery
Capacity   1100 mAh
Operating conditions   0 ... 50 °C , 5 ... 70 % RH
Storage conditions   0 ... 50 °C , 5 ... 70 % RH
Dimensions ( L x W x H )   165 x 90 x 32 mm
Weight   213 g
