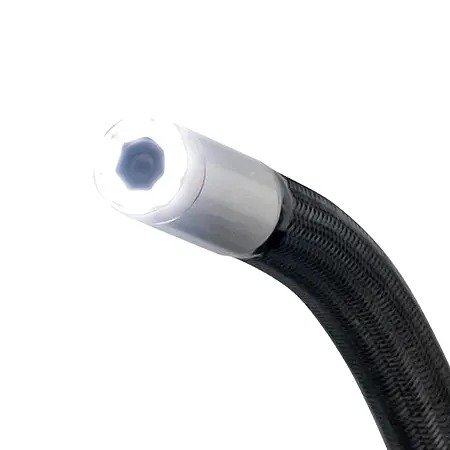

6 mm (0.23") diameter / 1 meter (3 ft 2") cable length / LED lighting / Micro-SD card memory /

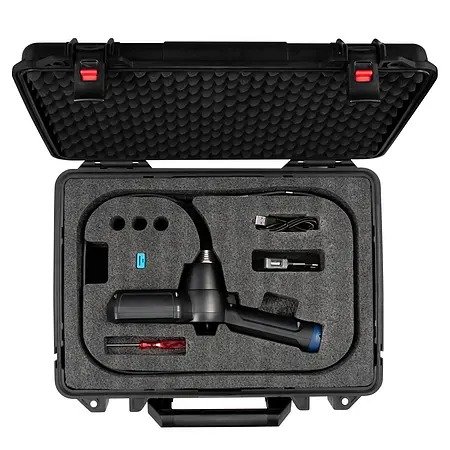

Transport case / Battery life >3 hours / IP 67

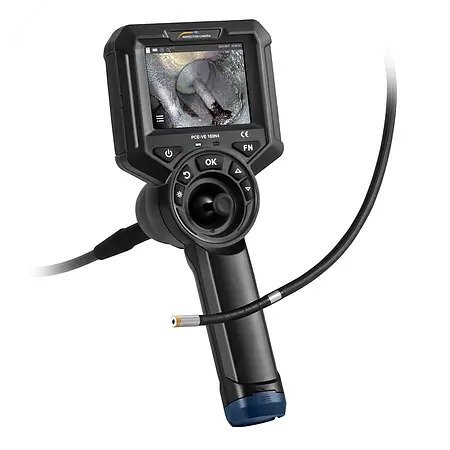

Photos as well as videos can be recorded with the multiway videoscope. The recordings are saved directly on the Micro SD card and can be viewed on the multiway videoscope. It is also possible to transfer the recordings from the Micro SD card to a computer. This means that the recordings from the multiway videoscope can be stored in expert reports, for example.
The 3500 mAh battery enables an operating time of more than 3 hours before it has to be recharged. To recharge the battery, the multiway videoscope can be connected to any 5 V USB interface.
Highlights
- Rechargeable via USB interface
- 3.5" display
- Operating time of more than 3 hours
- Mini-HDMI interface for image output
- Braided tungsten tube with a length of 1 m / 3 ft 2"
Specification
| Camera diameter | 6 mm / 0.23" |
| Cable length | 1 m / 3 ft 2" |
| Camera pixels | 1,000,000 |
| Depth of field | 7 ... 110 mm / 0.27 ... 4.33" |
| Field of view | 120° |
| Swivel range | 360° |
| Illuminance | can be set in five levels up to 25,000 lx |
| Cable material | Tungsten braided |
| Bending radius | >220° |
| Display | 3.5" IPS |
| Display resolution | 640 x 480 |
| Photo and video format | JPG / MP4 |
| Photo and video resolution | 960 x 720, 1280 x 720 |
| Magnification | 5-times |
| Protection class | camera cable: IP67 |
| display: IP65 | |
| Memory | 16 GB Micro-SD card |
| Battery power supply | 1 x 3.7 V 3200 mAh 18650 battery |
| Power consumption | 3.5 W |
| Operating time | >3 hours |
| Mains power supply | primary: 100 ... 240 V AC, 50 ... 60 Hz, 0.35 A |
| secondary: 5 V DC, 2 A | |
| Interfaces | Mini-HDMI (image transmission) |
| Micro-USB connector (charging port) | |
| Storage conditions | -10 ... +63 °C / 14 ... 145 °F, <92 % RH, non-condensing |
| Operating conditions display* | -10 ... +50 °C / 14 ... 122 °F, <92 % RH, non-condensing |
| Operating conditions camera* | -10 ... +80 °C / 14 ... 176 °F, <92 % RH, non-condensing |
|
*at temperatures below 0 °C / 32 °F the display must be preheated |
|
| Dimensions | 277 x 106 x 92 mm / 10.9 x 4.1 x 3.6" |
| Weight | ca. 500 g / 17.6 oz |
