Refrigerant Gauges PCE-ERS 100

Category: Refrigerant Gauges
Refrigerant Gauges / max. weighing range up to 100 kg / control function / weighing surface of 230 x 230 mm / battery and mains operation

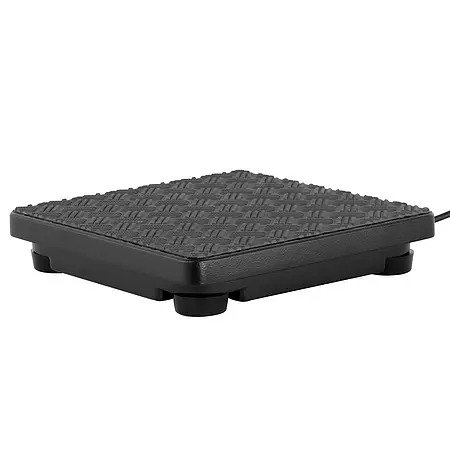

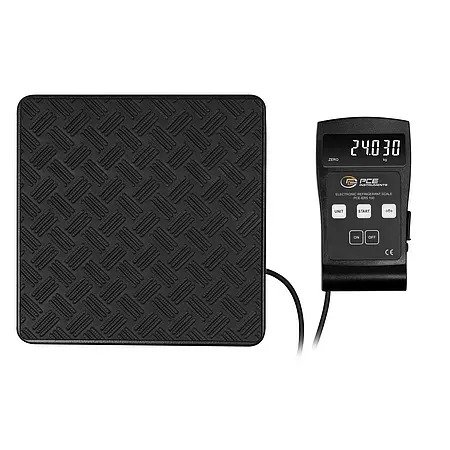

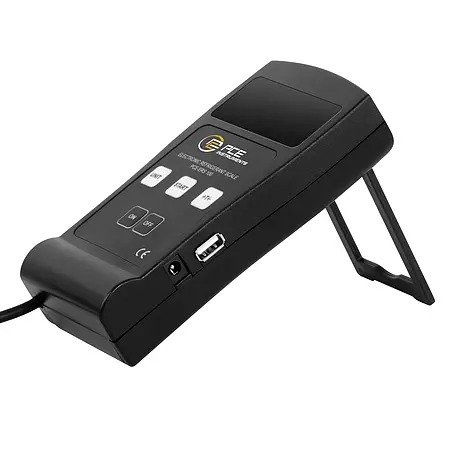

Our Refrigerant Gauges are the ideal solution for precisely filling and emptying refrigerant cylinders. The Refrigerant Gauges offer a measurement range of 0.01 ... 100 kg with a resolution of 0.01 kg, enabling precise measurements. The 230 x 230 mm platform of the Refrigerant Gauges is equipped with a non-slip rubber coating, which ensures that the bottles can be placed safely. The external control unit makes the Refrigerant Gauges ideal for flexible, mobile use. The control function makes it possible to set a weight at which the scales emit an audible alarm.

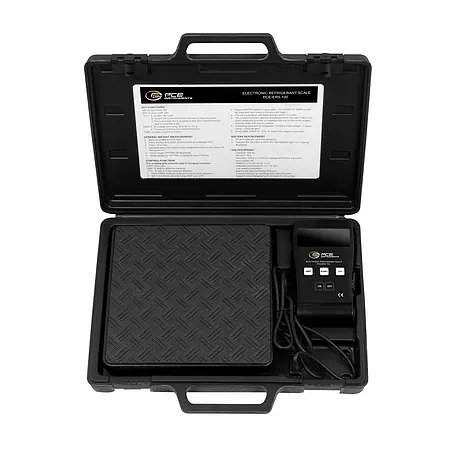

Measurements can be carried out in various units such as kg, g, lb, oz and lb/oz. The practical tare function allows the tare weight to be hidden so that only the actual change in weight is measured. A backlit display makes them easy to use even in poor lighting conditions. The scales can be operated either with a 9 V block battery or via the mains and have an automatic power off function to extend the battery life. The Refrigerant Gauges are supplied in a practical carrying case.

Highlights

- weighing range up to 100 kg
- control function
- units: kg, g, lb, oz, Ib/oz
- automatic power off
- weighing surface of 230 x 230 mm

Specification

Weighing range
Measurement range up to [Max]   100 kg
Resolution [d]   0,01 kg
Accuracy   ±0.01 kg

General technical data
Units   Ib/oz, kg, g, lb, oz
Display type   LCD
Display size   2,8 Inch
Interface   USB
Operating time   60 h
Automatic power-off   15 min
Cable length   1,3 m
Alarm   Acoustic
Scale type   Single-range scales
Minimum load [min]   0,01 kg
Menu language   English, English (GB)
Protection class (device)   IP40
Power supply   6 V DC, 200 mA
Weight   2061 g
Other dimensions   Display: 160 x 85 x 38
Operating conditions   0 ... 40 °C , 0 ... 90 % RH
Storage conditions   0 ... 40 °C , 0 ... 90 % RH

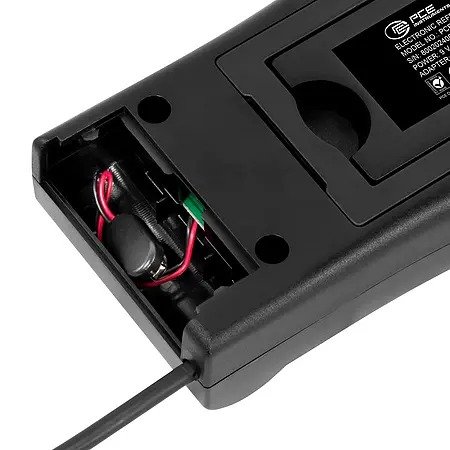

(Rechargeable) battery   1 x 9 V 9V block , Alkali-manganese
Capacity   640 mAh
Dimensions ( L x W x H )   230 x 230 x 45 mm
