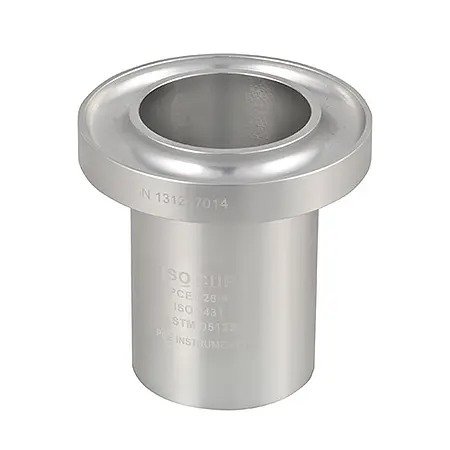

International standard DIN 53224 / Cup made of anodized aluminum
Highlights
high discharge accuracy
- Factory calibration certificate included
- With overflow channel
- Complies with international standards

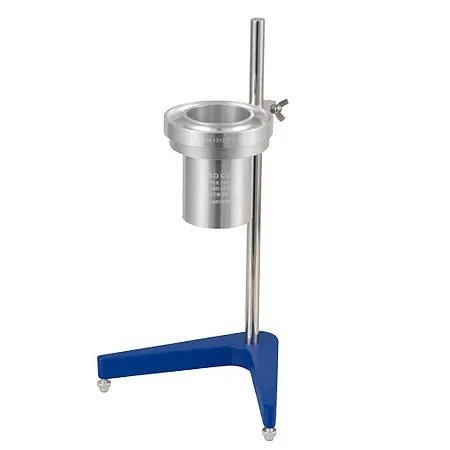

- Stand available as optional accessory
Specification
| Technical specifications | |||
| Model | Measuring range (cSt) | Flow time (sec.) | Outlet nozzle Ø (mm) |
| PCE-128/8 | 600 ... 2000 cSt | 30 ... 100 s | 8.0 mm |
| Material | cup: anodized aluminum nozzle: stainless steel |
||
| Standards | ISO 2431, DIN 53224, EN 535, ASTM D5125 | ||
| Dimensions | Ø inside 50 mm Ø outside 85 mm height 85 mm |
||
| Weight | ca. 310 g | ||
