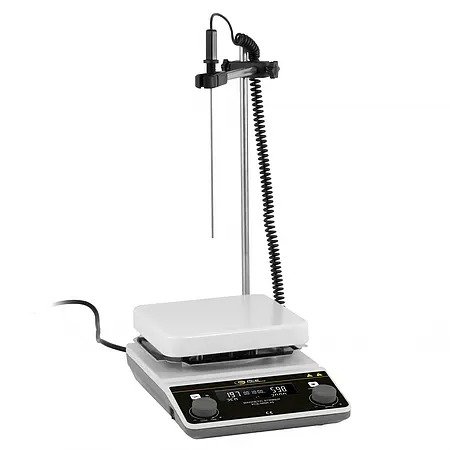

Magnetic Stirrer PCE-MSR 45

Category: Magnetic Stirrer
Magnetic Stirrer for liquids up to 20 liters / Stirring speed up to 2000 rpm / Stirring plate temperature up to 350°C (662°F) / External temperature sensor up to 250°C (482°F) / Adjustable direction of rotation

This Magnetic Stirrer combines powerful stirring performance with precise temperature control - ideal for laboratories, research, schools and industry. The stirring speed is infinitely adjustable from 100 to 2000 rpm, with a fine resolution of 1 rpm and an accuracy of ±10 rpm. It is suitable for liquid volumes of up to 20 liters and enables uniform stirring behavior even with large quantities.

The robust stirring plate made of cast aluminum with a ceramic-coated surface reaches temperatures of up to 350°C / 662°F. With a surface area of 170 × 170 mm / 6.7 x 6.7 in, it also offers enough space for larger vessels. An external temperature sensor allows precise temperature measurements in the range from 0 to 250°C / 32 to 482°F - perfect for temperature-sensitive applications. A red LED provides a clear warning as soon as the heating plate is hot, thus ensuring additional safety in everyday laboratory work.

Another highlight is the brushless motor, which guarantees long-lasting, maintenance-free use. The Magnetic Stirrer has a single stirring position, allows the direction of rotation to be changed and can therefore be used flexibly.

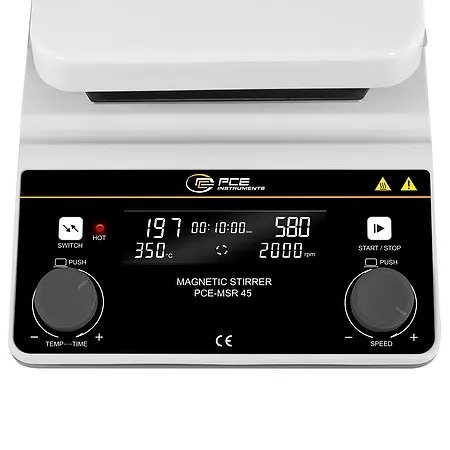

The integrated 3.7-inch LCD display clearly shows all relevant information. A timer (adjustable from 1 second to 99 hours and 59 minutes) enables time-controlled stirring and heating. The Magnetic Stirrer is ideal for applications where uniform stirring and controlled heating are crucial.

Highlights

- Stirring speed adjustable from 100 ... 2000 rpm adjustable
- for a maximum of 20 liters of liquid
- External temperature sensor
- Sensor temperature range: 0 ... 250°C / 32 ... 482°F
- Stirring plate temperature: 0 ... 350°C / 32 ... 662°F
- Stirring plate: Cast aluminum with ceramic coating
- Number of stirring positions: 1
- Timer: 1 s ... 99 h 59 min
- Power supply: 230V AC, 50/60 Hz

Specification

Speed
Measurement range up to   100 ... 2000 rpm
Resolution   1 rpm
Accuracy   ±10 U/min

Temperature sensor
Measurement range up to   0 ... 100 °C
Resolution   1 °C
Accuracy   ±0.5°C

Temperature sensor
Measurement range up to   101 ... 250 °C
Resolution   1 °C
Accuracy   ±1°C

General technical data
Display type   LCD
Display size   3,7 Inch
Dimensions   Stirring plate: 170 x 170 mm
Stirring rod: Ø 10 x 40 mm
Performance   950 W
Number of stirring points   1
Drive of the stirring points   Brushless motor
Max. Stirring quantity   20 l
Stirring plate material   Cast aluminium with ceramic coating
Temperature   Stirring plate: 0 ... 350°C / Accuracy: ±3°C
Timer from   1 s
Timer until   100 h
Menu language   English, English (GB)
Protection class (device)   IP20
Power supply   230V AC | 50/60 Hz

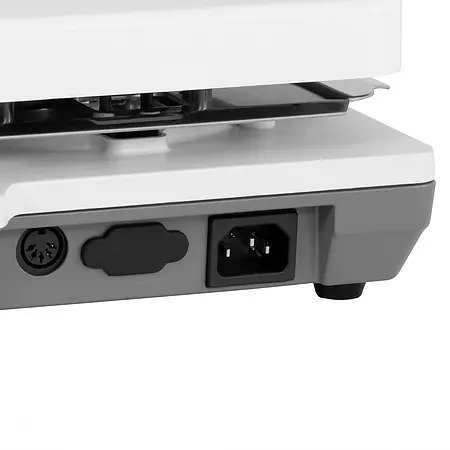

Connector type   Cold-device plug
Operating conditions   0 ... 50 °C , 0 ... 80 % RH
Storage conditions   0 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )   290 x 190 x 100 mm
Weight   3139 g
