Durometer PCE-DDD 10 Shore D

Category: Durometer

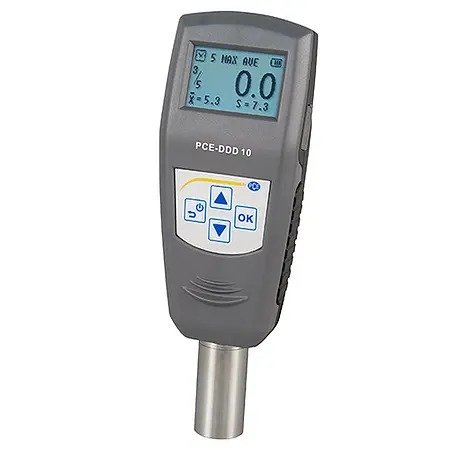

PCE-DDD 10 Shore D Durometer
Measures Shore D hardness in hard rubber and thermoplastic / Features a USB port and downloadable PC software for data transfer

The PCE-DDD 10 Shore D durometer is a portable handheld device used to check Shore D hardness in hard rubber and thermoplastic. This digital durometer has a reading accuracy of 0.1 hardness units. The durometer comes manufacturer calibrated and can be optionally certified to ISO standards for an additional fee (see accessories for details).

Highlights

- Portable handheld digital hardness testing device
- Measures Shore D hardness in hard rubber and thermoplastic

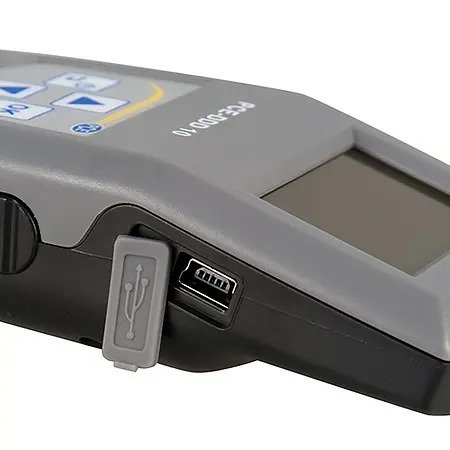

- Features a USB port and downloadable PC software for data transfer
- Large, easy-to-read display
- For single and serial measurements

Specification

Measurement range  0 ... 100 Shore D
Resolution  0.1
Accuracy  < ± 1

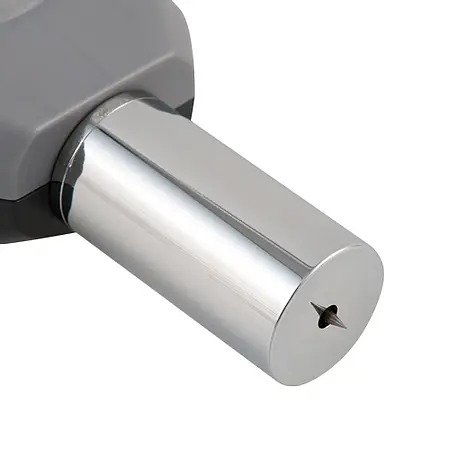

Indenter

 35°± 0.25°
Memory  Saves up to 500 measurements
Dimensions  153 x 50 x 29 mm / 6 x 1.9 x 1.1 in (main body)
Weight  Approx. 300 g / < 1 lb
Power supply  3.6V rechargeable Ni-MH battery
Max. operating time    Up to 20 h continuous use at full charge
Charging time  Approx. 3 h
Standards  GB/T 531.1, ISO7619-1, ASTM D 2240
