Force Gage PCE-FM 50N
Traction gauge / Compression force / USB interface
PEAK function / Different measuring units / Incl. Downloadable evaluation software
Traction gauge / Compression force / USB interface
PEAK function / Different measuring units / Incl. Downloadable evaluation software
This force gage is a tensile / compressive force gage. This tensile / compressive force gage has an internal load cell. It is a portable traction / compression force gage that can be installed in a force measurement stand. The measuring range of this tensile and compressive force gage is up to 50 N / 11 lbs. So the meter is suitable for more precise tensile and compression tests.

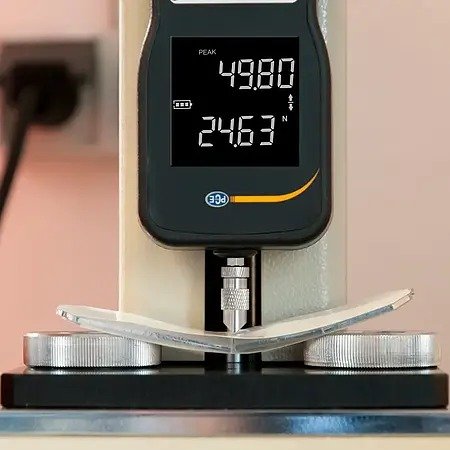

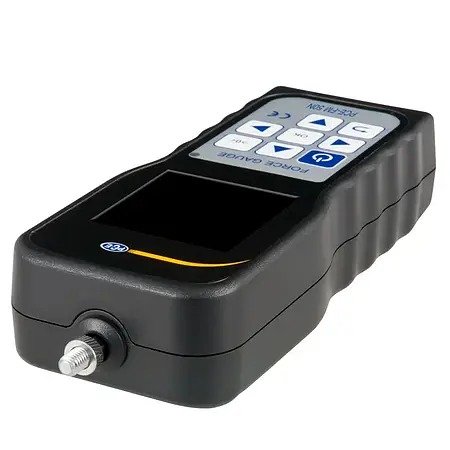

The PCE-FM 50N force gage offers the option of mounting the force gauge on a test stand by means of threads on the rear of the device. Test stands are always used in a force gage if reproducible measurement results are required during the force measurement. These test stands are ideal additions to a force gage, because they are operated by a precise handwheel or a motor. In addition, both tensile and compressive force measurements can be performed on them. Experiments in the laboratory are thus possible with the force gage as well as the inspection of incoming goods.

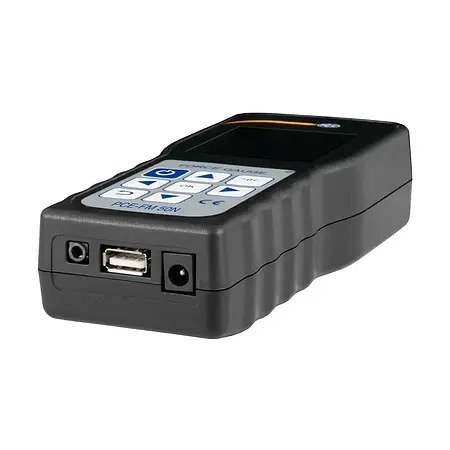

The measurement results can be transferred directly to the PC via USB interface. There they can be archived and evaluated. An integrated statistical evaluation is used to evaluate the measurement results. The force measuring device is thus able to automatically store maximum and minimum measured values in the display.
Highlights

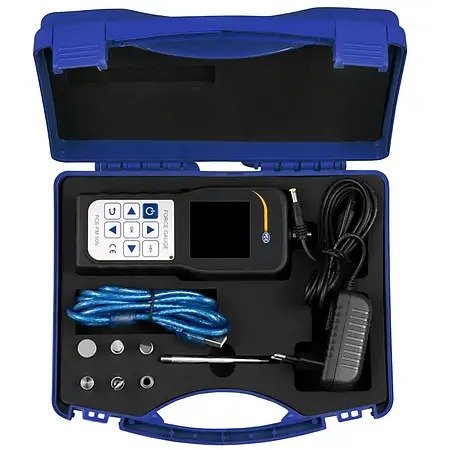

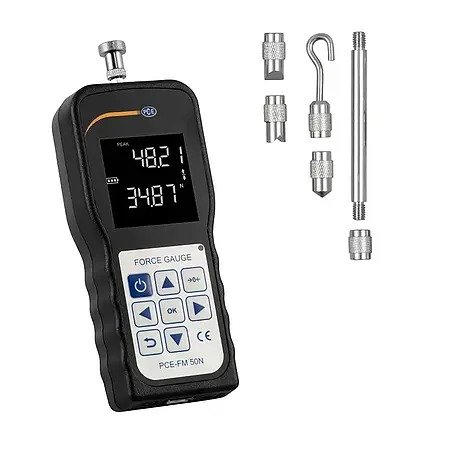

- Different shaped measuring adapters
- Downloadable evaluation software
- Device for mounting on test stands
- Peak measurement
- Power supply via charging adapter
- Delivery with extension rod
- Evaluation via USB interface
- Fast measured value display
- Downloadable evaluation software
- Device for mounting on test stands
- Peak measurement
- Power supply via charging adapter
- Delivery with extension rod
- Evaluation via USB interface
- Fast measured value display
Specification
| Measuring range | 0.5 ... 50 N / 0.1 ... 11 lbs |
| Resolution | 0.01 N / 0.002 lbs |
| Pressure calibration | 0.1 Mpa |
| Load cell | Integrated load cell with M6 connection |
| Measuring range | 1 ... 100% of the full scale |
| Measurement accuracy | ± 0.5 % |
| Units | N, kg, lb |
| Display | LCD |
| Power supply | Internal battery, 12V / 1 A power adapter |
| Operating temperature | 10 ... 30 °C / 50 ... 86°F |
| Relative humidity | 15 ... 80 % relative humidity |
| Weight | 1 kg / 2.2 lbs |
| Working conditions | |
|
The device must not be near sources of vibration or corrosive substances
|
|
