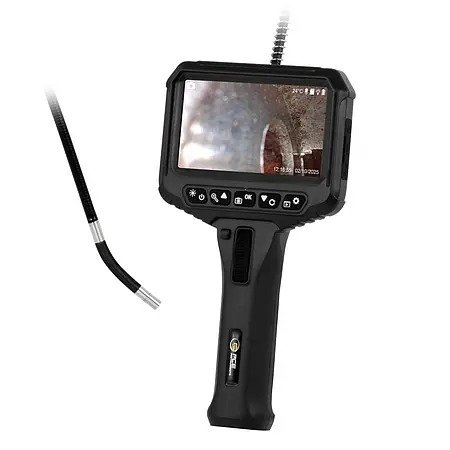

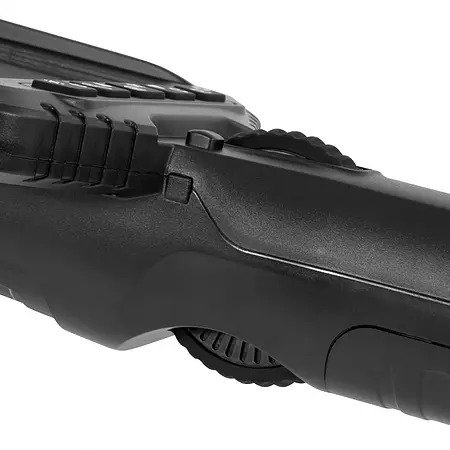

Industrial Borescope PCE-VE 300N

Industrial Borescope / Movable camera probe / Integrated microphone in the device / Digital zoom / 6 bright LEDs / Battery operation / Incl. transport bag

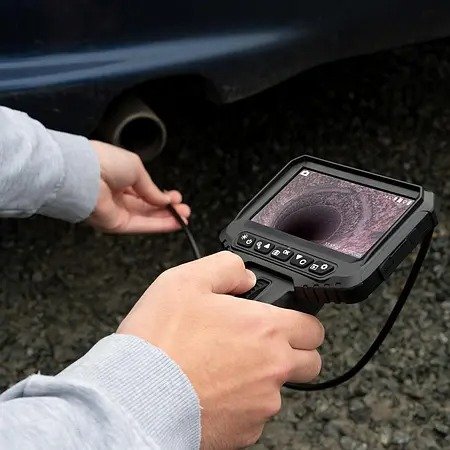

This state-of-the-art video Industrial Borescope is the essential tool for all professional visual inspections and detailed inspections in hard-to-reach places. It combines an extremely slim design with advanced recording functions to guarantee you maximum precision.

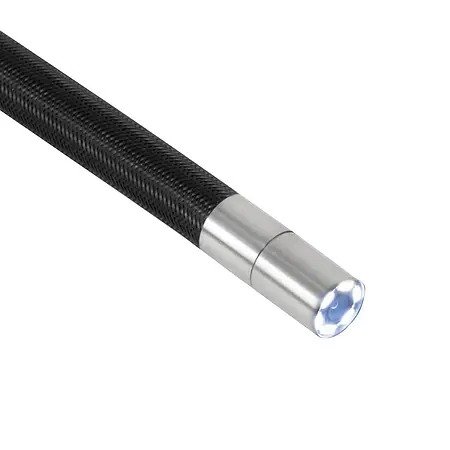

The centerpiece of the inspection system is the camera probe, which is only 6.2 mm / 0.24 in in size and has flexible 2-way articulation. This swiveling function enables precise control of the tip of the video Industrial Borescope in two directions to inspect hidden angles and side walls with ease. To ensure an excellent view, six bright LEDs are integrated into the camera probe, the brightness of which can be individually adjusted to optimally adapt the illumination to the respective environment.

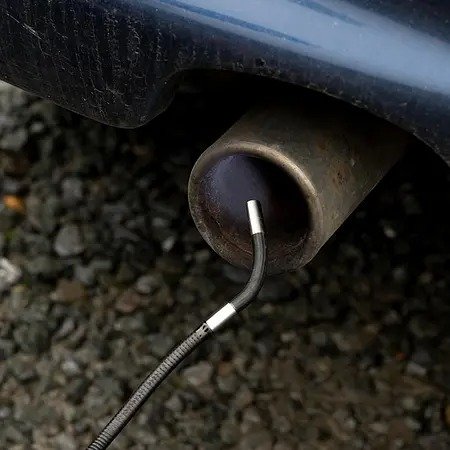

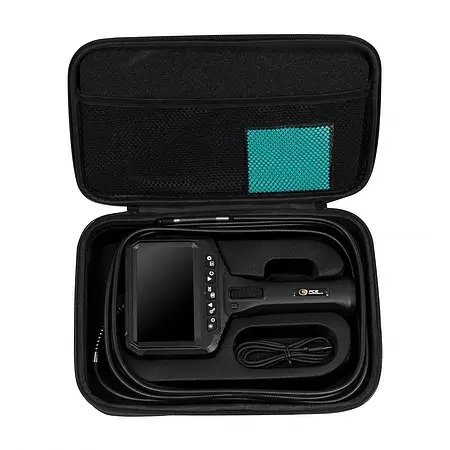

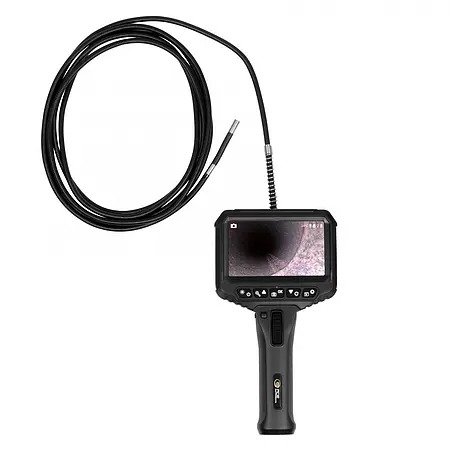

For documentation purposes, the video Industrial Borescope provides sharp image and video recordings in a maximum resolution of 1920 x 1080 (Full HD). All recordings are conveniently stored on the 32 GB micro SD card supplied. Flexibility is increased by the robust, 3 meter / 9.8 feet long camera cable, which allows easy insertion into narrow cavities and pipes. For detailed analysis, the device offers a 4x digital zoom and an image rotation function to perfectly adjust the orientation of the image to the inspection situation. This powerful video Industrial Borescope is supplied with a practical carrying case for safe and convenient storage.

Highlights

- 2-way camera probe Ø6.2 mm / 0.24 in
- Image and video recording
- max. resolution 1920 x 1080
- 32 GB micro SD card
- Integrated microphone in the device

Specification

General technical data
Type of cable   semi-rigid
Cable length   3 m

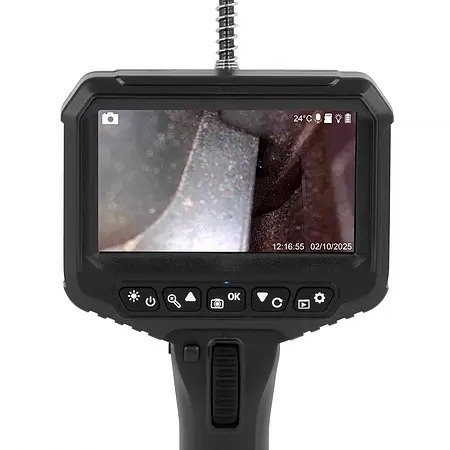

Display type   IPS
Display size   4,3 Inch
Display resolution   480 x 272 pixels

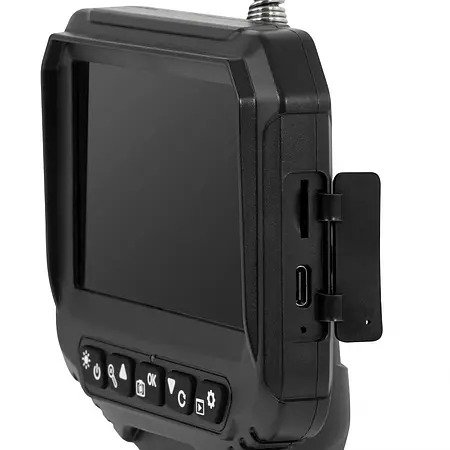

Storage medium   Micro SD card
Storage capacity   32 GB
Interface   USB-C
Camera resolution   JPG: 640x480 / 1280x720 / 1920x1080
Operating time   4 h
Camera head diameter   6,2 mm
Camera probe length   60 mm
Camera probe material   Metal
Camera probe movement   2-way
Protection class camera probe   IP67
Field of vision   90 °
Depth of field of vision   15 ... 100 mm
Bending angle   210 °
Bending radius   30 mm
Image / video format   JPG
Menu language   German, English (GB), English, Chinese, Japanese, Russian, French, Polish, Spanish, Italian
Protection class (device)   IP42
Power supply   5V DC (USB-C)
(Rechargeable) battery   1 x 3,7 V internal , Lithium-ion battery
Capacity   2200 mAh
Operating conditions   -10 ... 50 °C , 0 ... 90 % RH
Storage conditions   -10 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )   225 x 125 x 50 mm
Weight   431 g
