SEW-Taiwan

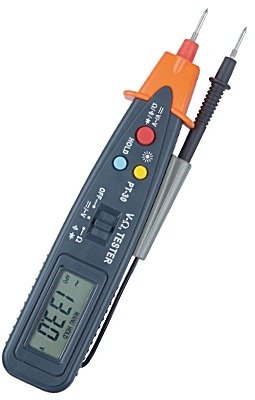

Sew PT-30

FEATURES
● Lightweight, compact, and easy to use.
● 4000 counts.
● Full automatic measurement, voltage measurement, resistor
   measurement.
● Data hold function.
● Auto off function.
● Continuity check.
● Diode measurement.
● Low battery indication.
● Pen light provided.
● Backlight LCD.
● 3V DC power supply.

  SPECIFICATIONS

DC Voltage
Ranges

4V

40V

400V

600V

Resolution

1mV

10mV

100mV

1V

Accuracy

±(1%rdg+3dgt)

Input impedance : 10M
AC Voltage
Ranges

4V

40V

400V

600V

Resolution

1mV

10mV

100mV

1V

Accuracy

±(1.5%rdg+5dgt)

Input impedance : 10M
Resistance
Ranges

400

4k

40k

400k

4M

40M

Resolution

0.1

1

10

100

1k

10k

Accuracy

±(1.5%rdg+3dgt)

±(2.5%rdg+4dgt)

Overload Protection 500V DC
Continuity Test
Ranges

400

Audible threshold

Less than 25

Diode Test : Test voltage approx. 0.3V to 2V
GENERAL
   Low battery indication "BATT" sign appears on the display when the battery
   voltage drops below accurate operating level.
Dimensions 196(L) × 35.8(W) × 28.3mm(D)
Weight
(battery included)
Approx. 105g
Power source DC 3V (CR2032) × 1
Safety standard EN 61010-1 CAT III 600V
EN 61326-1
