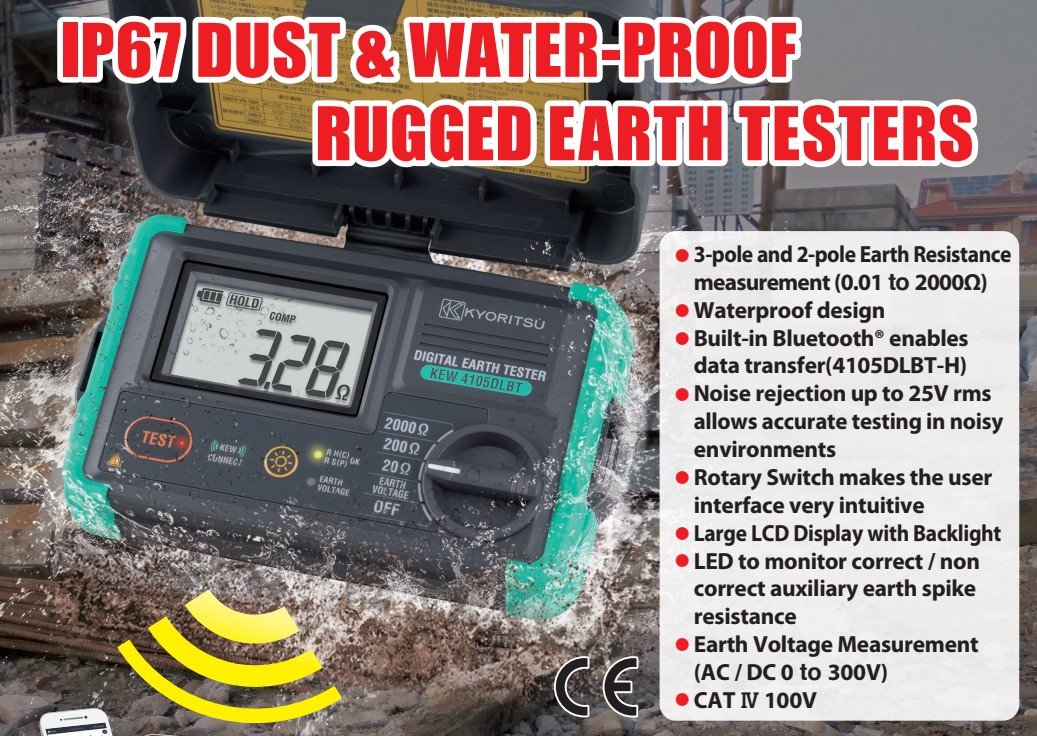

IP67 Dust & Waterproof rugged EARTH TESTER
Hard Case Model
- 3-Pole and 2-Pole Earth Resistance measurement (0.01 to 2000Ω)
- Waterproof design (IP67)
- Rotary Switch makes the user interface very intuitive
- Large LCD Display with Backlight
- LED to monitor correct / non correct auxiliary earth spike resistance
- Earth Voltage Measurement (AC/DC 0 to 300V)
- CAT Ⅳ 100V
Measurement of the earth electrode resistance (3-Pole method)
The international standard IEC 60364-6 provides information regarding the measurement of the resistance of an earth electrode for TT, TN and IT systems.
This measurement shall be made by the Volt-Amperometric method using two auxiliary earth electrodes.
The instrument that covers this requirement is the Earth Tester.
Measurement of the earth electrode resistance (3-Pole method)
The international standard IEC 60364-6 provides information regarding the measurement of the resistance of an earth electrode for TT, TN and IT systems.
This measurement shall be made by the Volt-Amperometric method using two auxiliary earth electrodes.
The instrument that covers this requirement is the Earth Tester.
Specification
| Earth resistance measurement |
20Ω | 200Ω | 2000Ω | ||||
|---|---|---|---|---|---|---|---|
| Measuring range | 0.00 to 2000 Ω | ||||||
| Display range | 0.00 to 20.99 Ω | 0.0 to 209.9 Ω | 0 to 2099 Ω | ||||
| Accuracy*1 | ±1.5%rdg±0.08 Ω*2 ±1.5%rdg±4dgt |
||||||
| Auxiliary earth resistance*3 | <10kΩ | <50kΩ | <100kΩ | ||||
| Comparator reference value | 10Ω | 100Ω | 500Ω | ||||
| Earth voltage measurement | |||||||
| Measuring range | 0 to 300 V AC (45 to 65Hz) ±0 to ±300 V DC |
||||||
| Display range | 0.0 to 314.9 V 0.0 to ±314.9 V |
||||||
| Accuracy | ±1%rdg±4dgt | ||||||
| Applicable Standards | IEC 61010-1 CAT Ⅳ 100V / CAT Ⅲ 150V / CAT Ⅱ 300V Pollution degree 3 IEC 61010-2-030, IEC 61010-031, IEC 61557-1, 5 IEC 60529 (IP67), IEC 61326-1, 2-2 |
||||||
| Power source | LR6(AA)(1.5V) × 6 | ||||||
| Dimension | 121(L) × 188(W) × 59(D) mm (including case lid) | ||||||
| Weight | Approx. 690g (including batteries and case lid) | ||||||
| Accessories | 7127B (Simplified measurement probe) 7266 (Earth resistance test leads [red:20m, yellow:10m, green:5m/1set]) 8041 (Auxiliary earth spikes [2spikes/1set]) 9121 (Shoulder strap) 9191 (Hard case) LR6(AA) × 6, Instruction manual |
||||||
| Optional Accessories | 7267 (Cable reel for Earth resistance tester [red:20m]) 7268 (Cable reel for Earth resistance tester [yellow:10m]) 7271 (Earth resistance test lead [green:5m]) 7272 (Precision measurement cord set) 8259 (Adapter for measurement terminal) 9190 (Carrying case) 9192 (Carrying case for cord reels) 7269 (Earth resistance test lead (Red 20m)) 7270 (Earth resistance test lead (Yellow 10m)) |
||||||
*1 For precision measurement, auxiliary earth resistance should be 100 Ω ±5% or less.
*2 At simplified measurement add ±0.10 Ω to the specified accuracy.
*3 Accuracy within the auxiliary earth resistance: ±5% rdg ±10 dgt.
